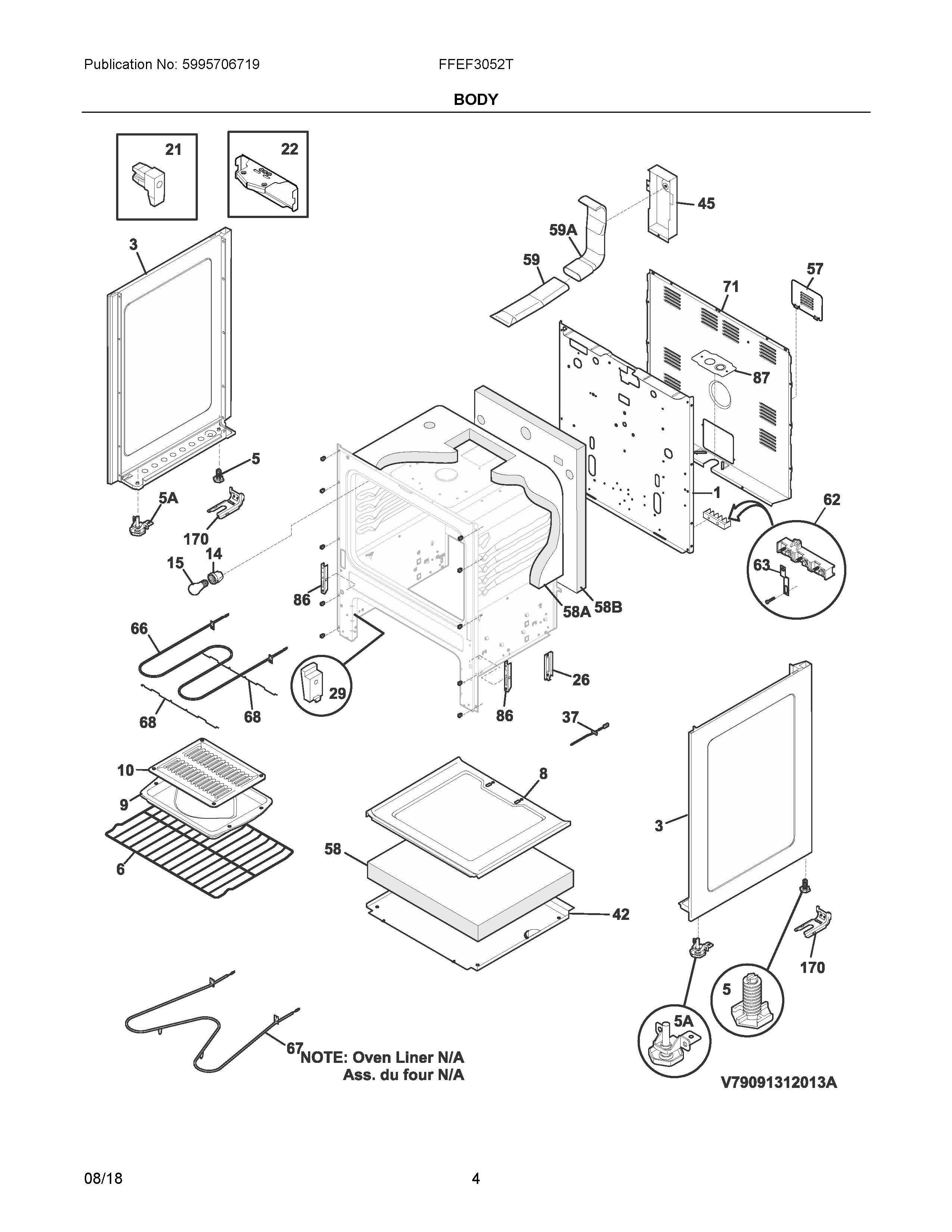

FFEF3052TBC 03 – BODY

FFEF3052TBC 03 – BODY

Written by

in

FFEF3052TBC 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316210800 Frigidaire Button Plug
NIASPACER, SHIELD, REAR WALL
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIB316001017 Frigidaire Screw
NI316279600 Frigidaire Screw
NIB316116000 Frigidaire Screw
NI316021132 Frigidaire Screw
NI316418901 Frigidaire Oven Screw
NI5304491650 Frigidaire Block
NIC316205500 Frigidaire Oven Nut
NI5304516202 Frigidaire Wiring Harness
NIA316418900 Frigidaire Oven Screw
NIA241853202 Frigidaire Refrigerator Screw
NI316089500 Frigidaire Oven Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
1BACK, MAIN
3316400145 Frigidaire Panel Assembly
3A316400144 Frigidaire Panel
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316067902 Frigidaire Oven Rack
8PANEL, SUMP, OVEN BOTTOM
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26316206300 Frigidaire Oven Support
37316233903 Frigidaire Range Oven Temperature Sensor
42SHIELD, WOOL, LOWER
45316234100 Frigidaire Oven Shield
57316283600 Frigidaire Oven Cover
58316403803 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58B316054202 Frigidaire Insulation
59A316208304 Frigidaire Oven Tube
59316208201 Frigidaire Oven Tube
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66316203200 Frigidaire Oven Broil Element 2400W
67316225001 Frigidaire Stove Range Oven Bake Element
68316203400 Frigidaire Oven Support
71316283204 Frigidaire Oven Shield
86316441300 Frigidaire Receptacle
87316081200 Frigidaire Oven Bracket
