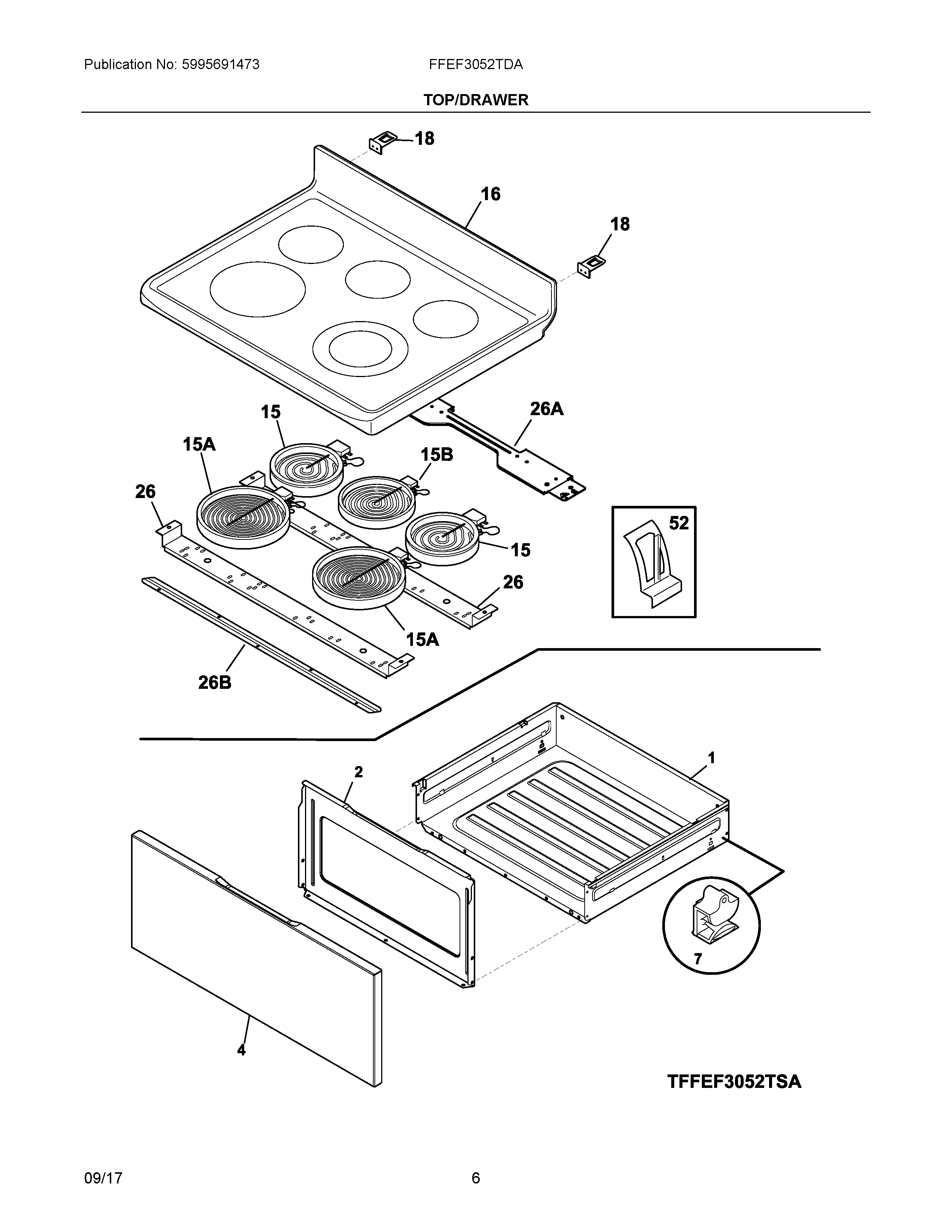

FFEF3052TDA 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5308014215 Frigidaire Oven Screw
NI	5304516197 Frigidaire Harness
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304511288 Frigidaire Oven Liner
4	PANEL, DRAWER FRONT, BLACK STAINLESS
7	316407402 Frigidaire Range Drawer Glide
15B	ELEMENT,RADIANT,100W,WARMER
15A	5304533520 Frigidaire Element
15	318178110 Frigidaire Oven Range 6" Surface Element
16	5304509177 Frigidaire Main Top Assembly
18	316580800 Frigidaire Hinge Bracket
26	5304500986 Frigidaire Oven Channel
26B	316607600 Frigidaire Bracket
26A	316498200 Frigidaire Oven Bracket
52	316461700 Frigidaire Oven Clip Assembly
