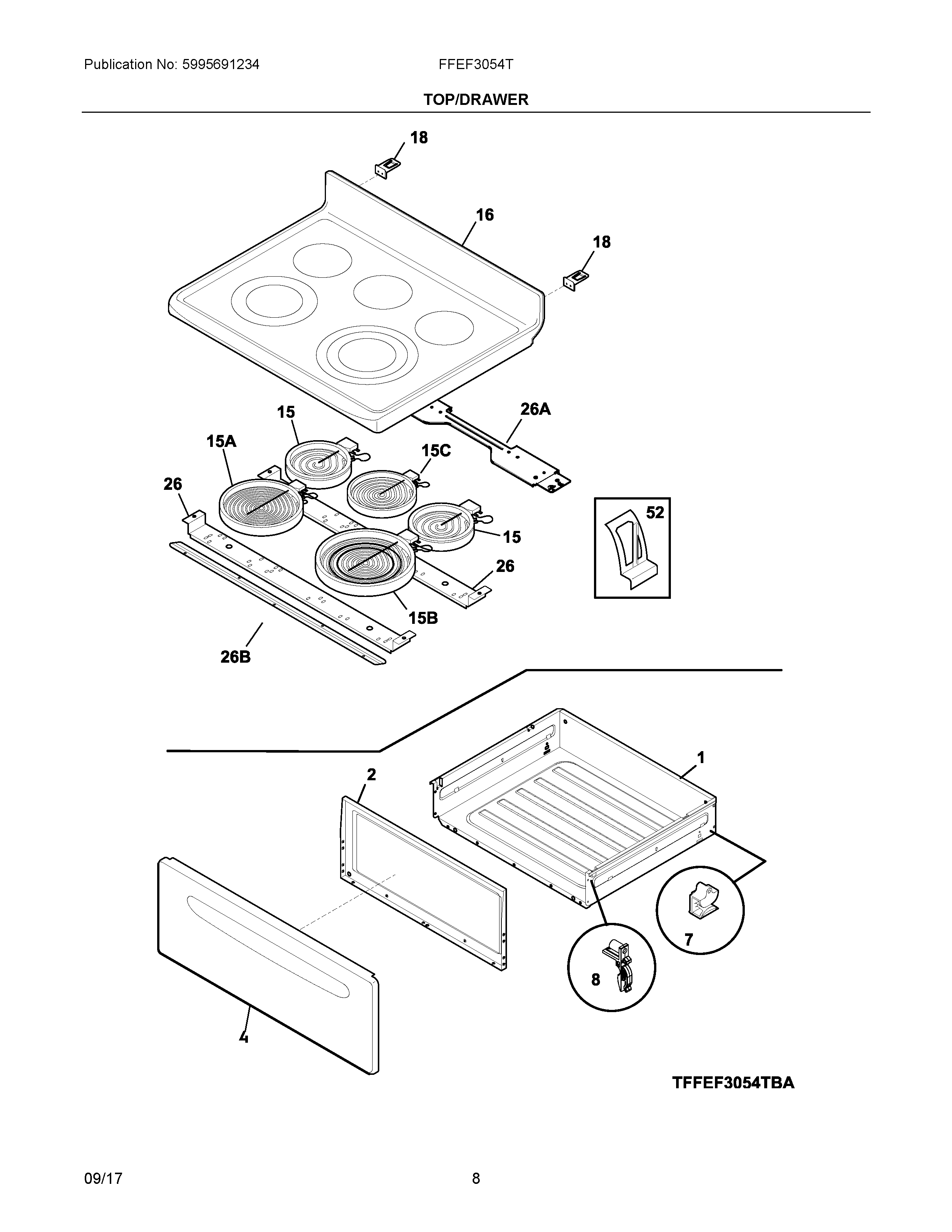

FFEF3054TBA 04 – TOP/DRAWER

Products

PositionProduct
NI316021132 Frigidaire Screw
NI316001017 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIHARNESS, WIRING, SURFACE UNITS
NI316021105 Frigidaire Oven Screw
NIA5308014215 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304511974 Frigidaire Oven Panel
7316407402 Frigidaire Range Drawer Glide
85304490938 Frigidaire Glide Assembly
15318178110 Frigidaire Oven Range 6" Surface Element
15CELEMENT,RADIANT,100W,WARMER
15B316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
15A5304533520 Frigidaire Element
165304508977 Frigidaire Oven Maintop
18316580800 Frigidaire Hinge Bracket
265304500986 Frigidaire Oven Channel
26B316607600 Frigidaire Bracket
26A316498200 Frigidaire Oven Bracket
435303285179 Frigidaire Oven Door Screw
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
