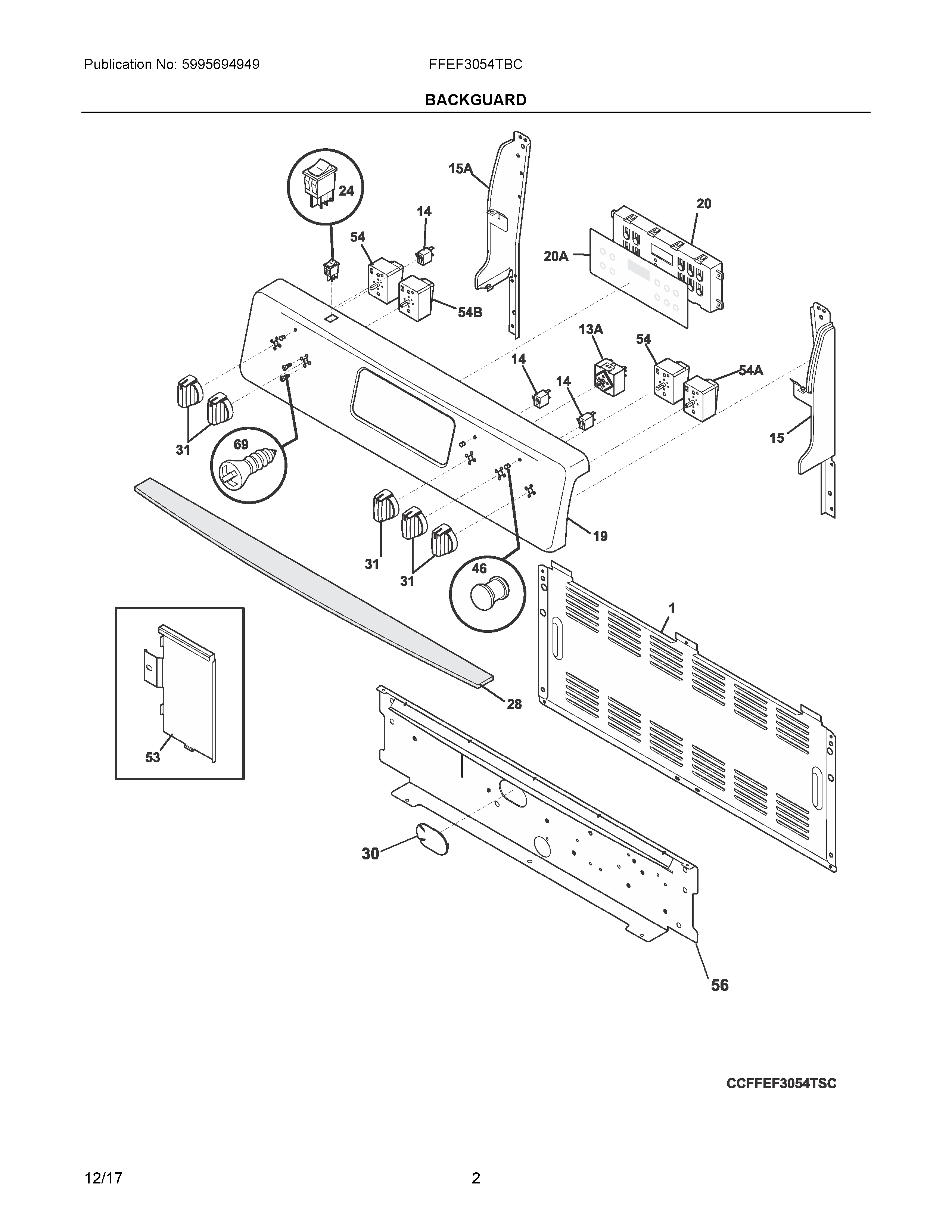

FFEF3054TBC 02 – BACKGUARD

FFEF3054TBC 02 – BACKGUARD

Written by

in

FFEF3054TBC 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
1316281802 Frigidaire Oven Shield
13A5304508926 Frigidaire Oven Temperature Control Switch
14316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
155304493644 Frigidaire Oven Cap
15A5304493646 Frigidaire Oven Cap
19PANEL, BACKGUARD, BLACK
20AOVERLAY
205304532117 Frigidaire ES300 SC Electric Controller Assembly
245304527841 Frigidaire Oven Rocker Switch (Black)
28316528700 Frigidaire Insulation Assembly
30316577600 Frigidaire Plug
315304508956 Frigidaire Oven Knob
46316557300 Frigidaire Range Indicator Light Lens
53SHIELD, FLUE, INNER
54B316238201 Frigidaire Oven Switch
54316436000 Frigidaire Oven Range Surface Element Switch
54A316436001 Frigidaire Oven Range Infinite Burner Switch
56316234045 Frigidaire Oven Shield
695303288565 Frigidaire Screw
