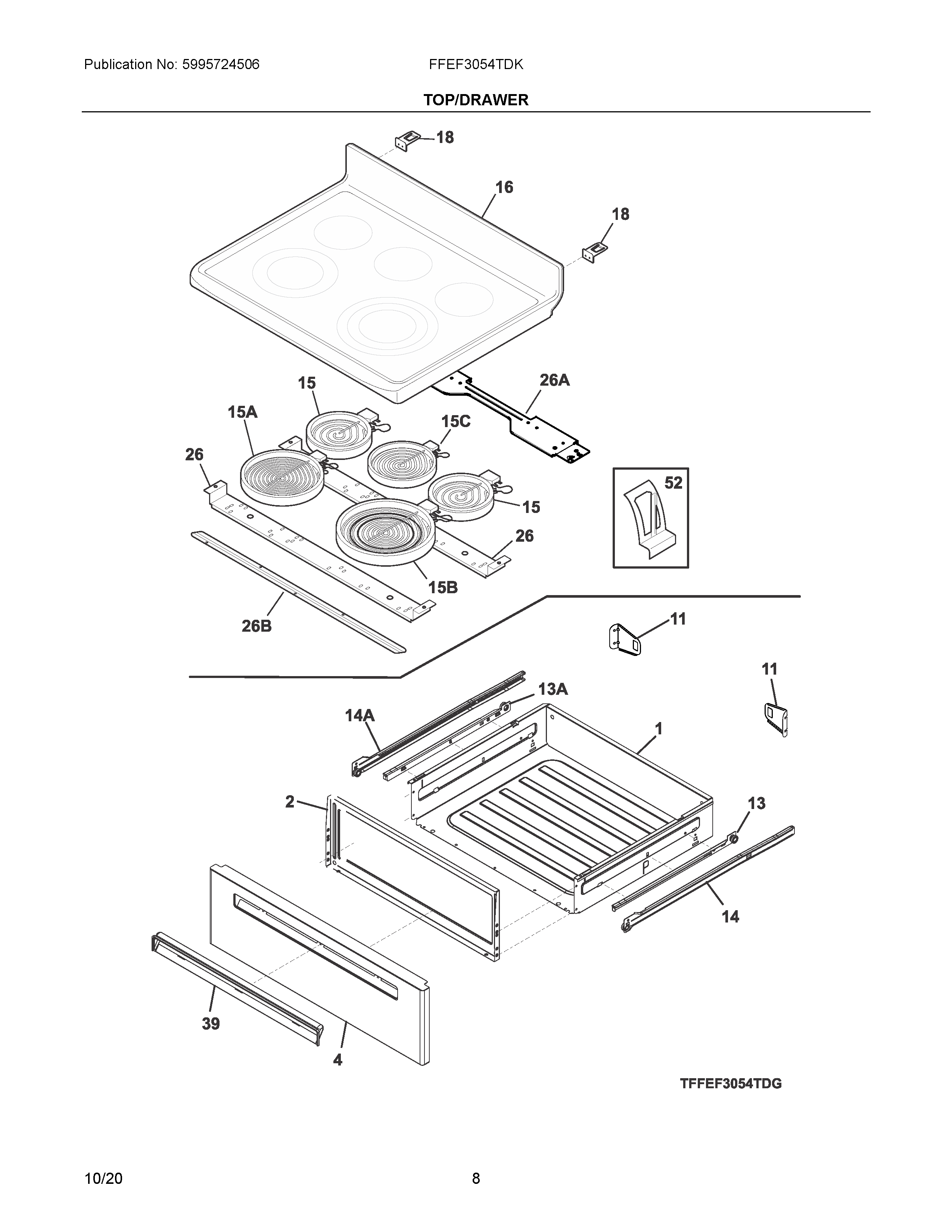

FFEF3054TDK 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304522973 Frigidaire Harness
NI	316418901 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NIA	5308014215 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304510526 Frigidaire Oven Panel
11	5304517906 Frigidaire Oven Bracket
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A	5304517903 Frigidaire Oven Glide Drawer
14A	5304517902 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15B	316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
15A	5304533520 Frigidaire Element
15	318178110 Frigidaire Oven Range 6" Surface Element
15C	5304521951 Frigidaire Element
16	5304513244 Frigidaire Oven Smoothtop Range
18	316580800 Frigidaire Hinge Bracket
26B	316607600 Frigidaire Bracket
26	5304512926 Frigidaire Channel
26A	316498200 Frigidaire Oven Bracket
39	5304511287 Frigidaire Handle
52	316461700 Frigidaire Oven Clip Assembly
