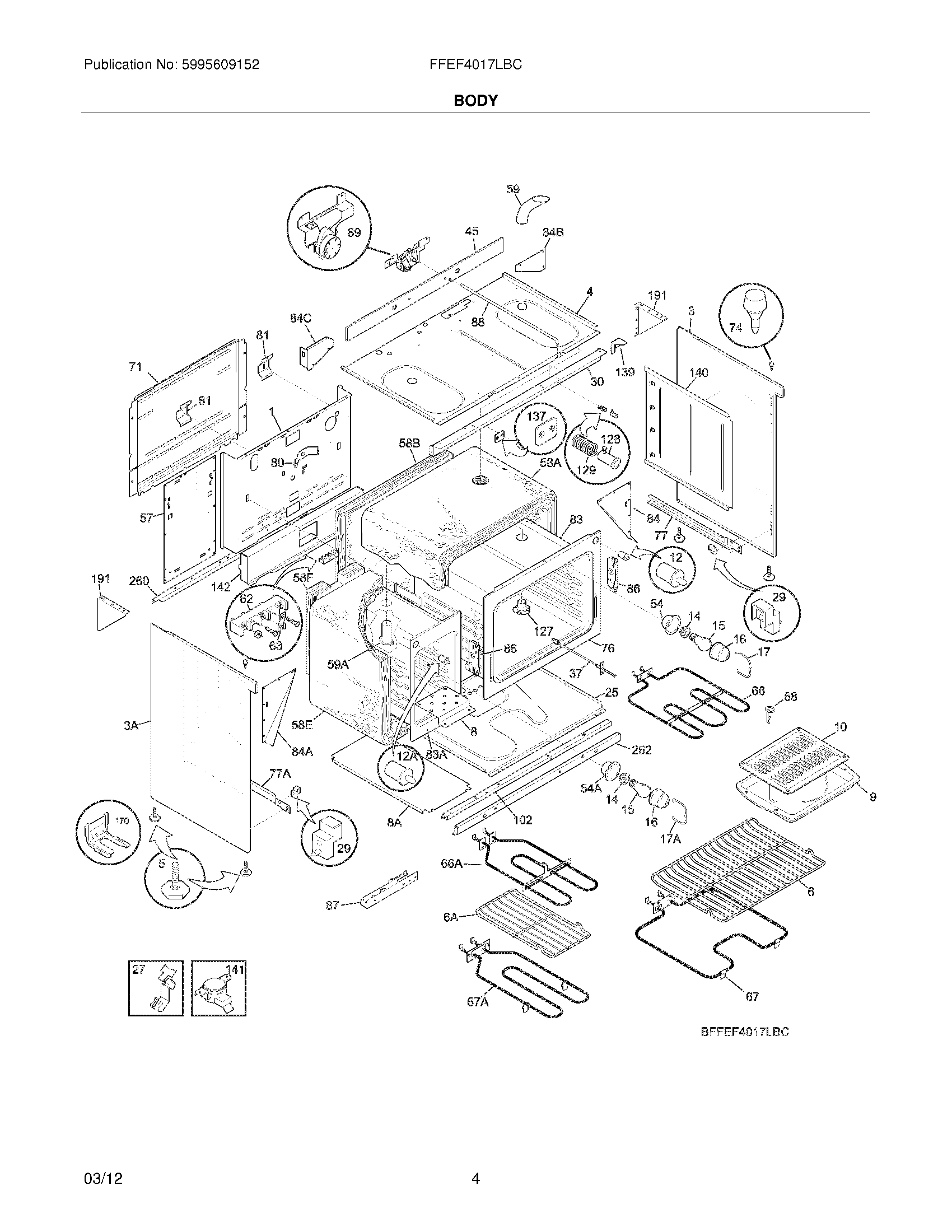

FFEF4017LBC 05 – BODY

FFEF4017LBC 05 – BODY

Written by

in

FFEF4017LBC 05 – BODY

Products

Position	Product
NI	WCI 318532146
NI	5304461333 Frigidaire Oven Screw
NI	WCI 5303323133
NI	WCI 318232420
NI	WCI 318232351
NI	Harness,wiring ,main
NI	318235301 Frigidaire Assembly Connector
NI	WCI 318086002
NI	WCI 318938900
NI	5303211311 Frigidaire Refrigerator Screw
NI	5304480396 Frigidaire Screw
NI	5303323277 Frigidaire Oven Screw
NI	WCI 5303311528
NI	5303323139 Frigidaire Oven Screw
NI	08002868 Frigidaire 0 Screw Assembly
NI	5304415832 Frigidaire Oven Screw
NI	316205500 Frigidaire Oven Nut
1	WCI 318066415
3A	WCI 318066135
3	WCI 318066134
4	WCI 318073712
5	318175503 Frigidaire Screw with Bolt
6A	WCI 318345206
6	318025314 Frigidaire Oven Rack
8	Panel,heat shield ,oven bottom
8A	WCI 318071900
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	808136601 Frigidaire Oven Switch
12A	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17A	RETAINER-LENS
17	WCI 5304400195
25	WCI 318179113
27	5303284616 Frigidaire Range Bulb Clip Thermostat
29	WCI 318161600
30	WCI 318023921
37	SENSOR
45	WCI 318057401
54	WCI 318222400
54A	WCI 5303271606
57	WCI 318055701
58E	WCI 318285005
58A	WCI 318285017
58F	WCI 318285006
58B	WCI 318285018
59	WCI 318549806
59A	WCI 318549807
62	5304409888 Frigidaire Oven Terminal Block with Hardware
63	318264200 Frigidaire Oven Plate
66A	WCI 318255701
66	318255605 Frigidaire Oven Broil Element Range
67A	318255201 Frigidaire Oven Small Bake Element
67	BAKE ELEMENT
68	5304403015 Frigidaire Oven Support
71	WCI 5303310515
74	WCI 318147420
76	WCI 318056010
77	RAIL-DRAWER RH
77A	RAIL-DRAWER LH
80	318054701 Frigidaire Plate
81	WCI 318192400
83	WCI 318089613
83A	WCI 318089200
84C	WCI 318251805
84B	WCI 318055902
84A	WCI 318251807
84	WCI 318251806
86	318561100 Frigidaire Receptacle
87	WCI 318111800
88	WCI 5303311160
89	318095959 Frigidaire Oven Motor
102	WCI 318111901
127	318317100 Frigidaire Adapter Assembly
128	WCI 318563000
129	5303311164 Frigidaire Oven Spring
137	318090310 Frigidaire Oven Latch
139	WCI 318042900
140	WCI 318071300
141	WCI 318003600
142	WCI 318123901
170	ANTI-TIP BRACKET
170	316116000 Frigidaire Screw
191	WCI 318322800
260	WCI 318055500
262	Channel,oven support ,front
