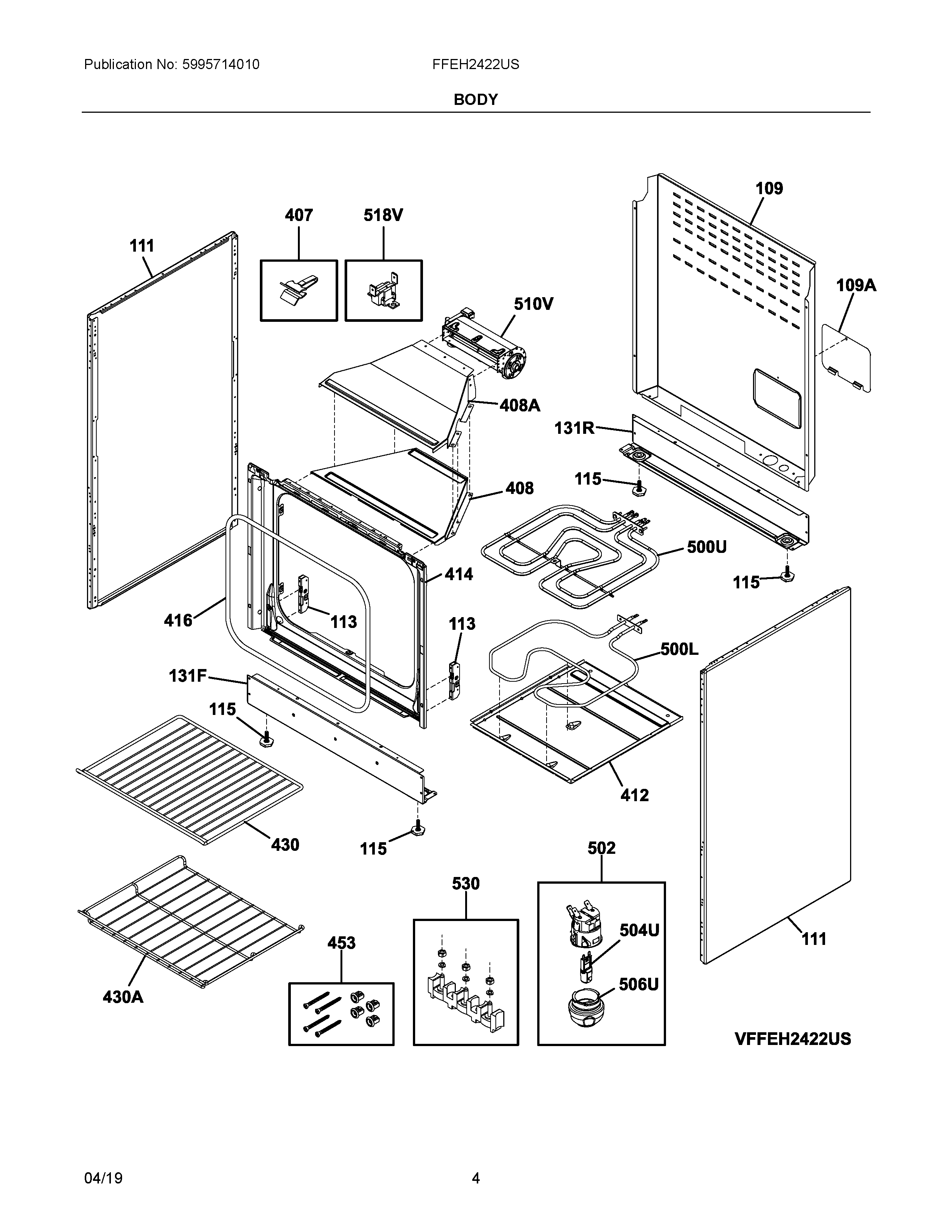

FFEH2422US 03 – BODY

FFEH2422US 03 – BODY

Written by

in

FFEH2422US 03 – BODY

Products

PositionProduct
NIWEIGHT, COUNTER
109ACOVER, BACK PANEL
109WCI A14224103
111A02114903 Frigidaire Panel
113A05102101 Frigidaire Receptacle
115A02244101 Frigidaire Oven Foot
131RA02827004 Frigidaire Panel
131FTOE PLATE, FRONT, BLACK
407CLIP, BULB, OVEN THERMOSTAT
408ACOVER, AIR CHANNEL
408AIR CHANNEL, LOWER
412COVER, LOWER ELEMENT
414342397603 Frigidaire Frame
416357732201 Frigidaire SEAL
430AWCI A15915601
430354659502 Frigidaire RACK
453KIT, BUSHING, (4 PCS), W/SCREWS
500LA04163901 Frigidaire Element
500UA04164101 Frigidaire Element Assembly
504U318946500 Frigidaire Oven Light Bulb Range/Wall
506U808769006 Frigidaire Lamp Assembly
510V808962602 Frigidaire Blower Assembly
518V330208111 Frigidaire Thermostat
530405538919 Frigidaire KIT
