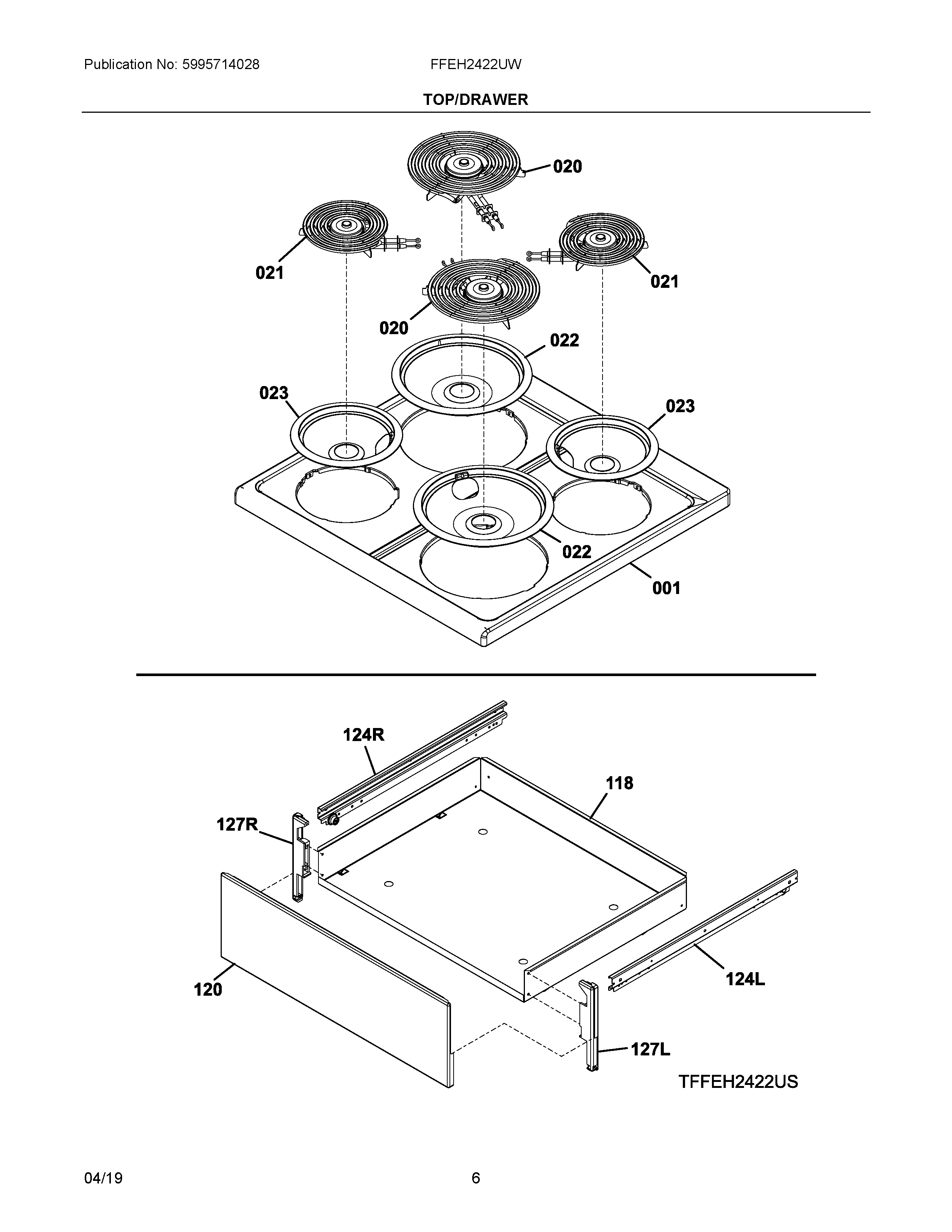

FFEH2422UW 04 – TOP/DRAWERadmin2025-04-26T10:05:33+00:00FFEH2422UW 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| NI | BOLT, BURNER SUPPORT, M4X9 PH |
| NI | PLUG, BUTTON, DRAWER |
| NIC | AXLE, DRAWER |
| NIB | WHEEL, DRAWER, FRONT |
| NIA | SEAL, COOKTOP |
| NIA | 342553001 Frigidaire Wheel |
| NI | HOLDER, HOB |
| 1 | A02480703 Frigidaire Cooktop |
| 20 | 5304516160 Frigidaire Oven 6" Burner Safety Element/Coil |
| 21 | 5304516159 Frigidaire Oven Range Limiter Element 8" |
| 22 | A316222301 Frigidaire Oven 8" Porcelain Drip Bowl Range |
| 23 | A316222201 Frigidaire Oven Drip Bowl Assembly |
| 118 | DRAWER, TRAY |
| 120 | 342174603 Frigidaire PANEL |
| 124L | 342817707 Frigidaire Glide Assembly |
| 124R | 342817708 Frigidaire Glide |
| 127L | SUPPORT, DRAWER, LH |
| 127R | SUPPORT, DRAWER, RH |
