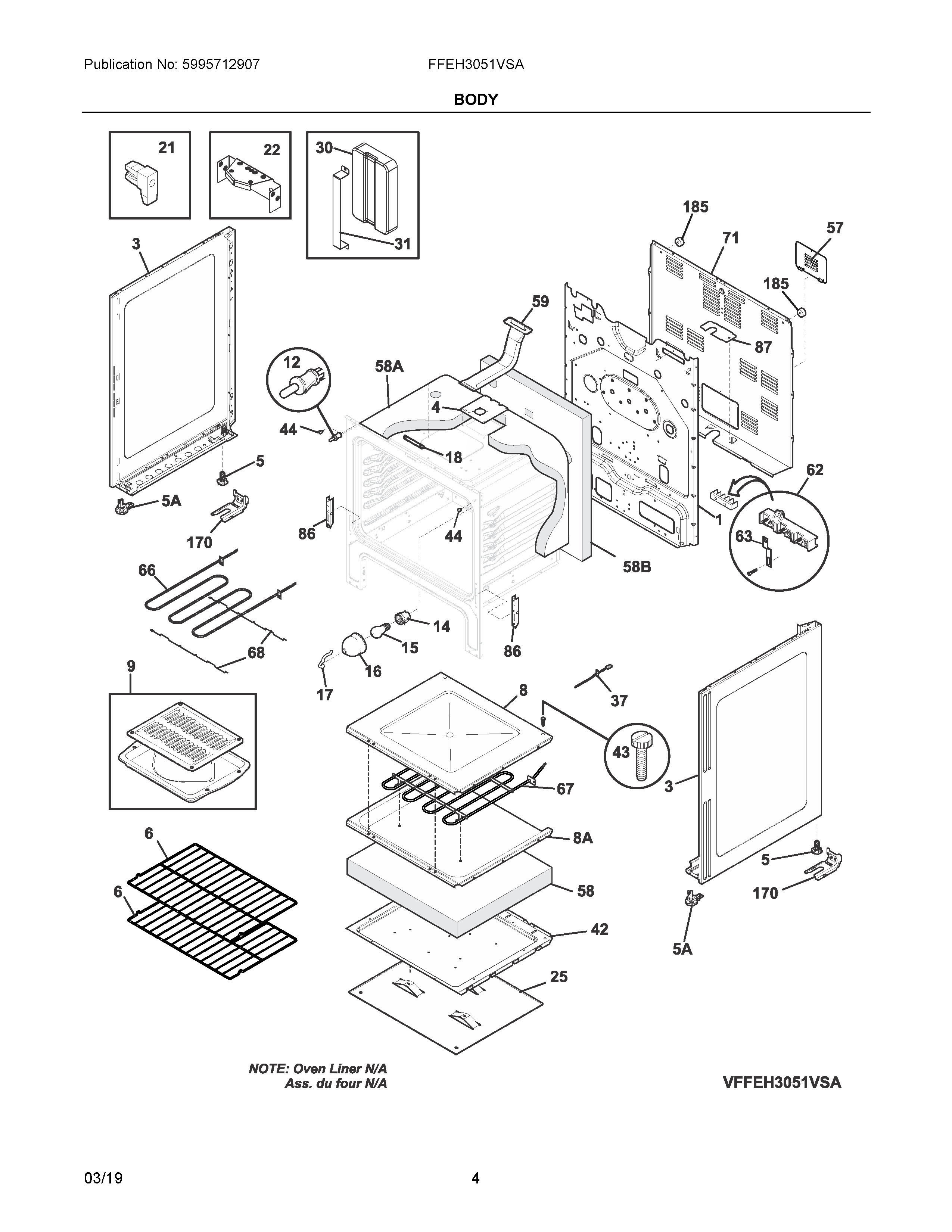

FFEH3051VSA 03 – BODY

FFEH3051VSA 03 – BODY

Written by

in

FFEH3051VSA 03 – BODY

Products

Position	Product
NI	5303288566 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NIB	316205500 Frigidaire Oven Nut
NIB	316116000 Frigidaire Screw
NI	316021132 Frigidaire Screw
NI	5304515472 Frigidaire Oven Harness
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIA	316001017 Frigidaire Screw
NIA	316279600 Frigidaire Screw
NI	316418900 Frigidaire Oven Screw
NIA	241853202 Frigidaire Refrigerator Screw
NI	316260800 Frigidaire Screw-SHOULDER
NIC	316542203 Frigidaire Insulator
NI	316021109 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
NIA	316064600 Frigidaire Oven Support
1	5304514161 Frigidaire Back
3A	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
4	PLATE, OVEN VENT
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	316496201 Frigidaire Oven Rack
8A	BASE, BAKE ELEMENT
8	316400601 Frigidaire Oven Range Bottom Panel
9	BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	5304520383 Frigidaire Cover
21	316408000 Frigidaire Oven Clip Assembly
22	5304514125 Frigidaire Bracket Assembly
25	316406200 Frigidaire Oven Shield
30	COUNTERWEIGHT, CONCRETE BLOCK
31	BRACKET, CONCRETE BLOCK
37	316490000 Frigidaire Oven Range Temperature Sensor
42	316400701 Frigidaire Oven Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
57	316283600 Frigidaire Oven Cover
58B	WCI 316403600
58	316403802 Frigidaire Insulation
58A	316403700 Frigidaire Insulation
59	5304514160 Frigidaire Tube
62	5303935271 Frigidaire Oven Terminal Block
63	5304536404 Frigidaire Strap
66	BROIL ELEMENT
67	316413800 Frigidaire Oven Range Bake Element
68	316429100 Frigidaire Oven Support Bracket
71	316283204 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	316081200 Frigidaire Oven Bracket
185	318531800 Frigidaire Oven Spacer
