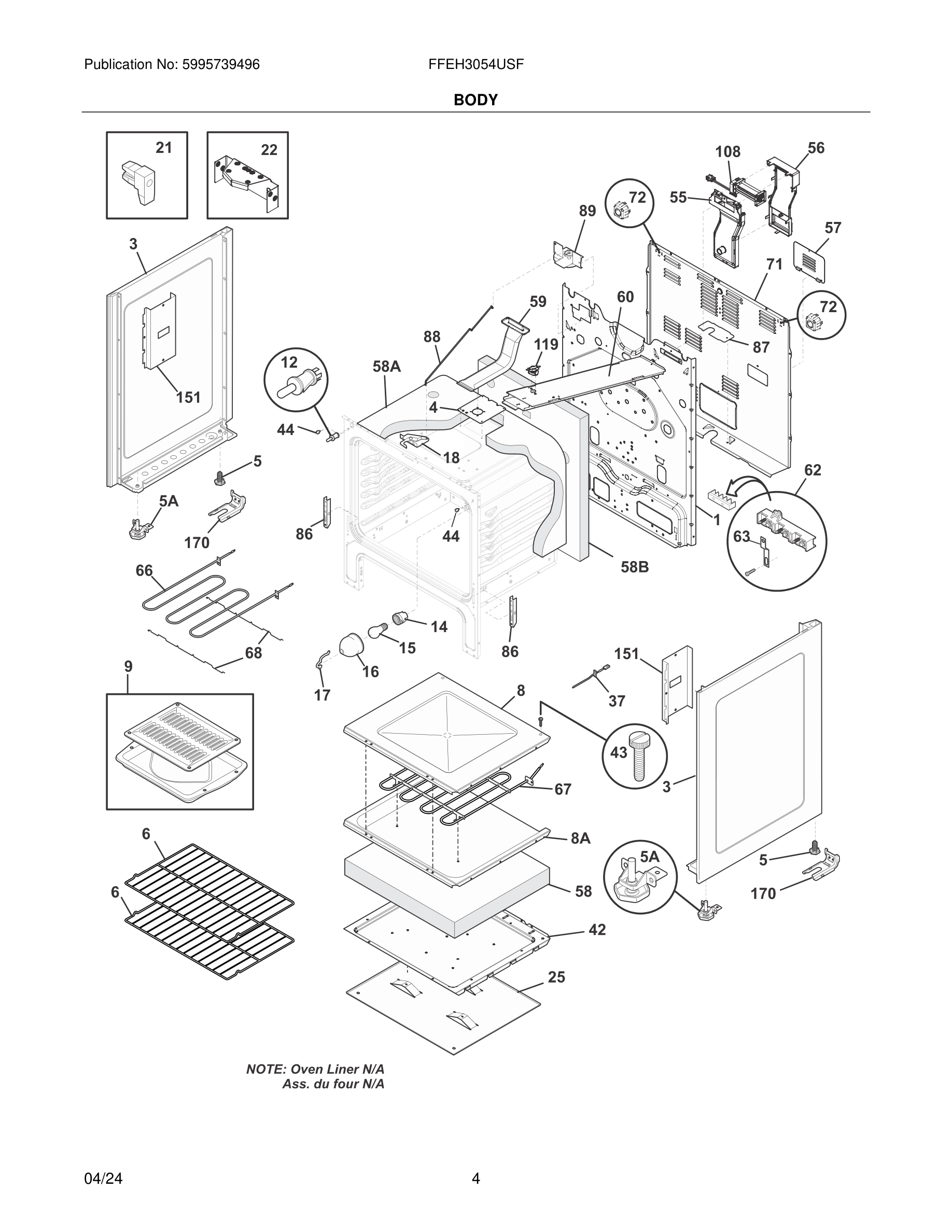

FFEH3054USF 05 – BODY

FFEH3054USF 05 – BODY

Written by

in

FFEH3054USF 05 – BODY

Products

PositionProduct
*5303285179 Frigidaire Oven Door Screw
*5303271648 Frigidaire Oven Screw
*316418901 Frigidaire Oven Screw
1BACK, MAIN
3316400144 Frigidaire Panel
3316400145 Frigidaire Panel Assembly
4PLATE, OVEN VENT
4*241853202 Frigidaire Refrigerator Screw
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6316496201 Frigidaire Oven Rack
8316400601 Frigidaire Oven Range Bottom Panel
8*316064600 Frigidaire Oven Support
8ABASE, BAKE ELEMENT
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12#316445501 Frigidaire Oven Switch
14#316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18#316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
22*316279600 Frigidaire Screw
225304514125 Frigidaire Bracket Assembly
25316406200 Frigidaire Oven Shield
37#316490000 Frigidaire Oven Range Temperature Sensor
42316400701 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
555304514171 Frigidaire Oven Duct
565304514172 Frigidaire Oven Duct
57316283600 Frigidaire Oven Cover
58316403802 Frigidaire Insulation
58A316403700 Frigidaire Insulation
58BWCI 316403600
595304514160 Frigidaire Tube
605304522591 Frigidaire Duct Assembly
62*316205500 Frigidaire Oven Nut
62*316001017 Frigidaire Screw
62*316542203 Frigidaire Insulator
62#5303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66#BROIL ELEMENT
67#316413800 Frigidaire Oven Range Bake Element
68316429100 Frigidaire Oven Support Bracket
715304514174 Frigidaire Oven Shield
725304514177 Frigidaire Spacer
86316441300 Frigidaire Receptacle
87316081200 Frigidaire Oven Bracket
88316232702 Frigidaire Rod
89#MOTOR
