Aparts

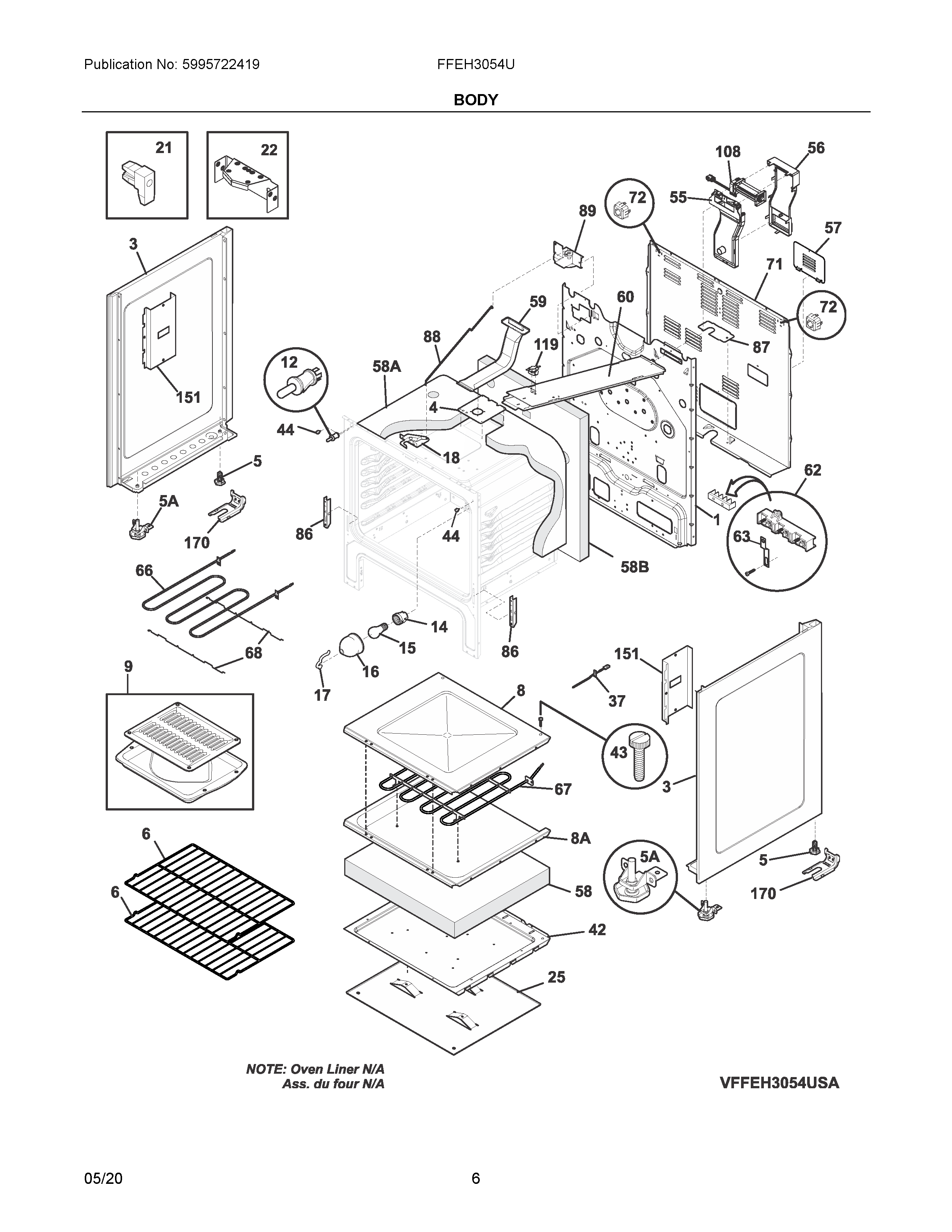

FFEH3054UWC 03 – BODY

FFEH3054UWC 03 – BODY

Written by

in

FFEH3054UWC 03 – BODY

Products

PositionProduct
NI5304514142 Frigidaire Oven Harness
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NIA316001017 Frigidaire Screw
NIB316116000 Frigidaire Screw
NI316021132 Frigidaire Screw
NIA316279600 Frigidaire Screw
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIA241853202 Frigidaire Refrigerator Screw
NI316021105 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NIA316064600 Frigidaire Oven Support
NI5303285179 Frigidaire Oven Door Screw
NI316260800 Frigidaire Screw-SHOULDER
NIC316542203 Frigidaire Insulator
15304514161 Frigidaire Back
3A316400143 Frigidaire Panel
3316400142 Frigidaire Panel
4PLATE, OVEN VENT
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316496201 Frigidaire Oven Rack
8ABASE, BAKE ELEMENT
8316400601 Frigidaire Oven Range Bottom Panel
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
225304514125 Frigidaire Bracket Assembly
25316406200 Frigidaire Oven Shield
37316490000 Frigidaire Oven Range Temperature Sensor
42316400701 Frigidaire Oven Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
555304514171 Frigidaire Oven Duct
565304514172 Frigidaire Oven Duct
57316283600 Frigidaire Oven Cover
58A316403700 Frigidaire Insulation
58316403802 Frigidaire Insulation
58BWCI 316403600
595304514160 Frigidaire Tube
605304522591 Frigidaire Duct Assembly
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66BROIL ELEMENT
67316413800 Frigidaire Oven Range Bake Element
68316429100 Frigidaire Oven Support Bracket
715304514174 Frigidaire Oven Shield
725304514177 Frigidaire Spacer
86316441300 Frigidaire Receptacle
87316081200 Frigidaire Oven Bracket
88316232702 Frigidaire Rod
89MOTOR
1085304514166 Frigidaire Fan Assembly
119318578506 Frigidaire Oven High Limit Thermostat
151WCI 5304521158
