FFES3015LSE 05 – BODY

FFES3015LSE 05 – BODY

Written by

in

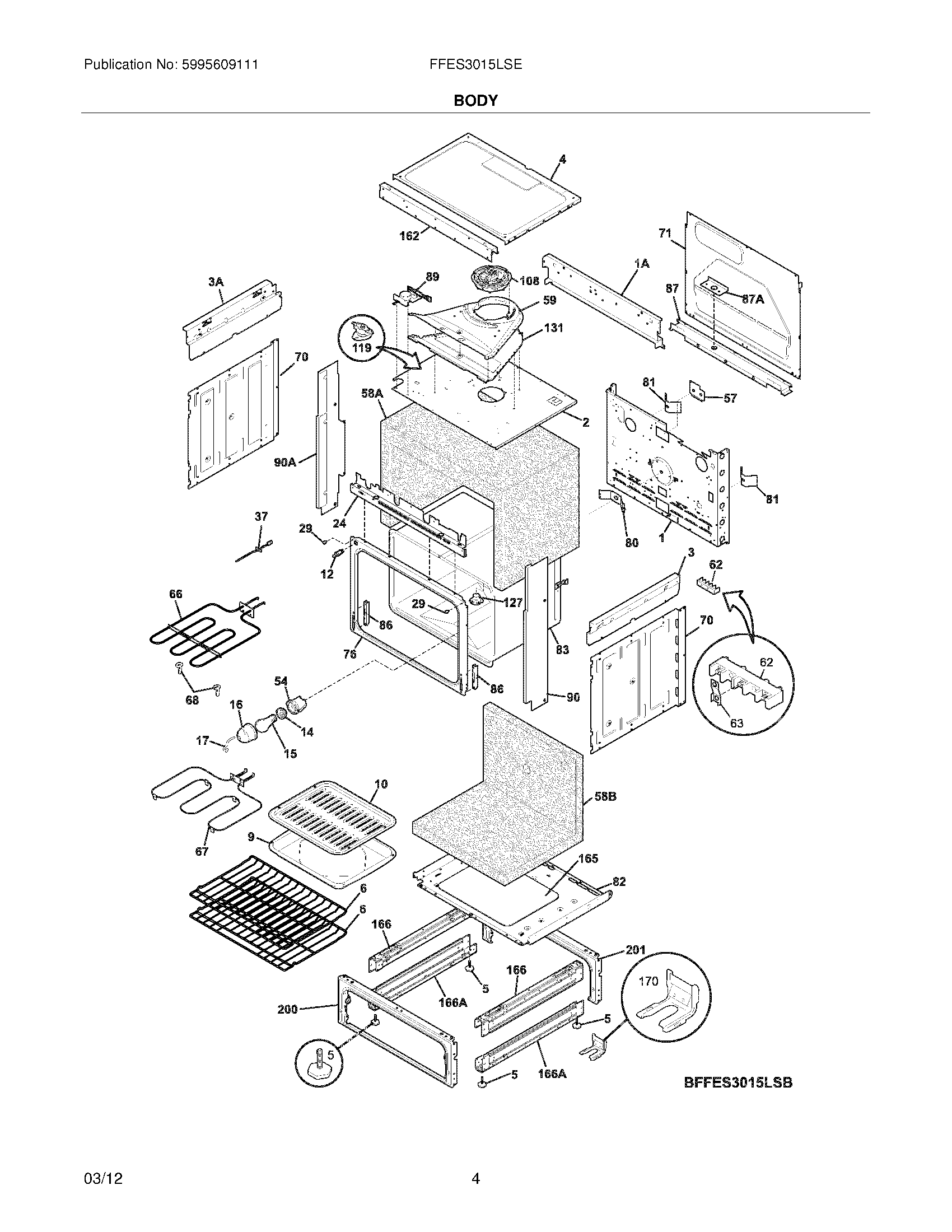

FFES3015LSE 05 – BODY

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	5303211311 Frigidaire Refrigerator Screw
NI	318531701 Frigidaire Spacer
NI	Screw,No.8-18 x 3/8 ,(10)
NI	WCI 5304417153
NI	WCI 318368501
NI	5304461333 Frigidaire Oven Screw
NI	318235301 Frigidaire Assembly Connector
NI	WCI 5304400192
NI	WCI 318579001
NI	SCREW-SHOULDER
NI	5303323129 Frigidaire Oven Screw
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	316205500 Frigidaire Oven Nut
NI	5303323139 Frigidaire Oven Screw
NI	5304415832 Frigidaire Oven Screw
NI	08002868 Frigidaire 0 Screw Assembly
NI	BRACKET-GLASS,(3)
NI	5304480396 Frigidaire Screw
NI	WCI 318384489
NI	WCI 318268099
NI	5304436875 Frigidaire Oven Screw
1A	WCI 318225120
1	WCI 318259220
2	WCI 318570500
3	WCI 318225230
3A	WCI 318225231
4	WCI 318073908
5	Screw,leveling ,w/tee nut
6	WCI 318345207
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	318394803 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
24	WCI 318913116
29	316517600 Frigidaire Oven Spacer
37	SENSOR
54	WCI 318222400
57	WCI 318402800
58B	Insulation,oven wrapper ,back/bottom
58A	WCI 318386113
59	WCI 318570600
62	5304409888 Frigidaire Oven Terminal Block with Hardware
63	318264200 Frigidaire Oven Plate
66	WCI 318255808
67	318254918 Frigidaire Oven Element
68	5304403015 Frigidaire Oven Support
70	WCI 318259105
71	WCI 318260007
76	WCI 318056292
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258765
83	WCI 318261456
86	318561100 Frigidaire Receptacle
87	BRACKET, CABLE MTG.
87A	WCI 318111806
89	318261230 Frigidaire Oven Motor
90	5304511889 Frigidaire Oven Panel
90A	5304511890 Frigidaire Oven Panel
108	318575600 Frigidaire Oven Motor
119	318578506 Frigidaire Oven High Limit Thermostat
127	WCI 318317105
131	WCI 318574800
162	WCI 318225820
165	WCI 318322600
166	318298410 Frigidaire Oven Bracket
166	WCI 318298403
170	316116000 Frigidaire Screw
170	ANTI-TIP BRACKET
200	WCI 318335600
201	318298233 Frigidaire Oven Frame
