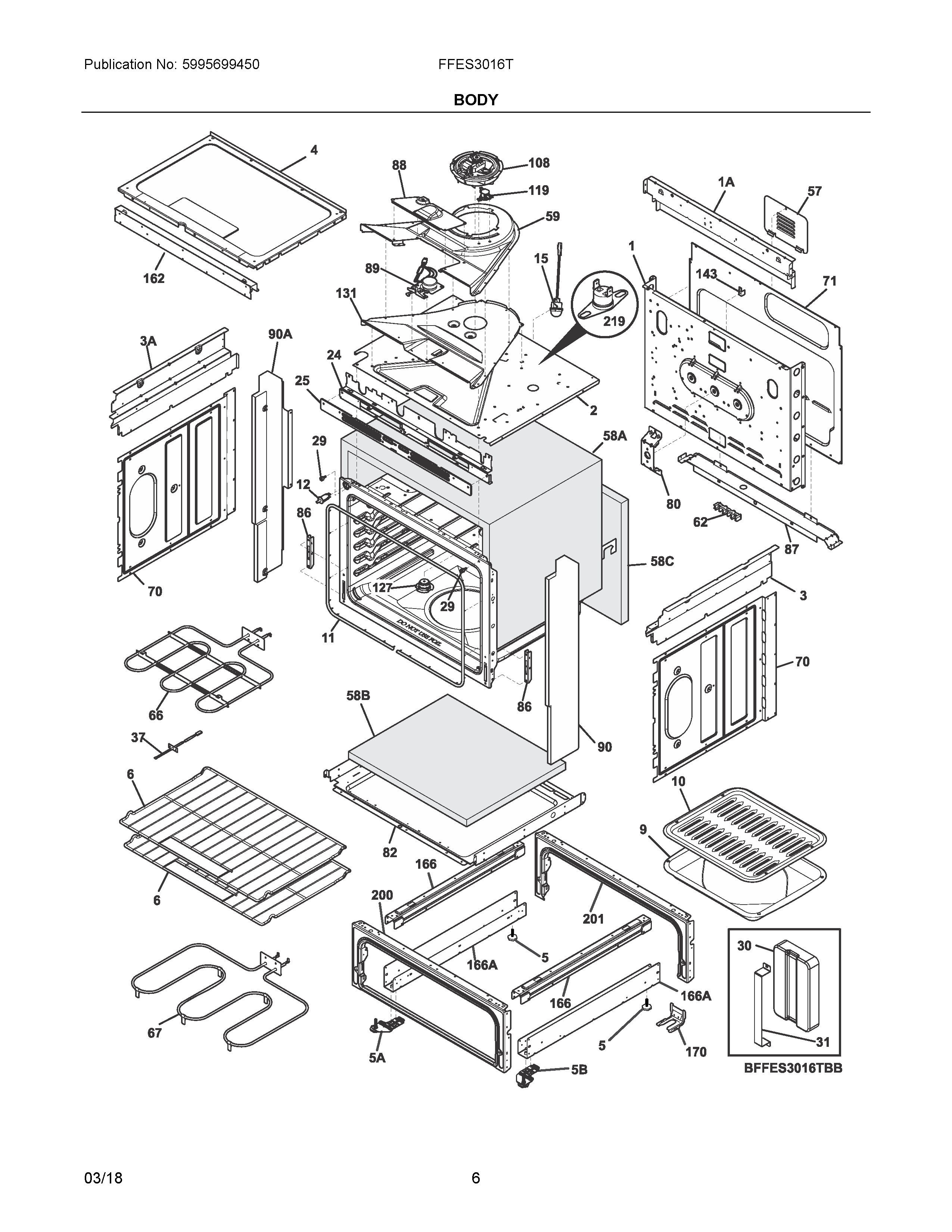

FFES3016TWB 03 – BODY

FFES3016TWB 03 – BODY

Written by

in

FFES3016TWB 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NIA318531701 Frigidaire Spacer
NIC318264200 Frigidaire Oven Plate
NIA316001017 Frigidaire Screw
NI318235301 Frigidaire Assembly Connector
NID5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIWCI 5304503336
NIB316205500 Frigidaire Oven Nut
1A139004600 Frigidaire Oven Panel
1139017310 Frigidaire Panel
2139028107 Frigidaire Shield
3WCI 318225230
3AWCI 318225231
4WCI 318073908
5316498903 Frigidaire Leveling Leg
5A5304511891 Frigidaire Leg Assembly
5B5304511892 Frigidaire Assembly-Leg
6WCI 139011800
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
24139074902 Frigidaire Vent Trim Frame
25139075001 Frigidaire Oven Cover
29316517600 Frigidaire Oven Spacer
30COUNTERWEIGHT, CONCRETE BLOCK
31BRACKET, CONCRETE BLOCK
37SENSOR
57316283600 Frigidaire Oven Cover
58CWCI 139020202
58A139001700 Frigidaire Insulation
58BWCI 139020303
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
67139027501 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
82WCI 139008200
86318561100 Frigidaire Receptacle
87139020102 Frigidaire Bracket
885304506964 Frigidaire Oven Cover
89MOTOR
90PANEL, FILLER, WHITE, RH
90A5304511888 Frigidaire Panel
108318575612 Frigidaire Oven Cooling Fan Motor
119807144901 Frigidaire Thermostat
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
162WCI 318225820
166318298410 Frigidaire Oven Bracket
166A5304511884 Frigidaire Oven Bracket
1705304486410 Frigidaire Oven Kit
200WCI 318298232
201318298233 Frigidaire Oven Frame
219318005229 Frigidaire Oven Switch
