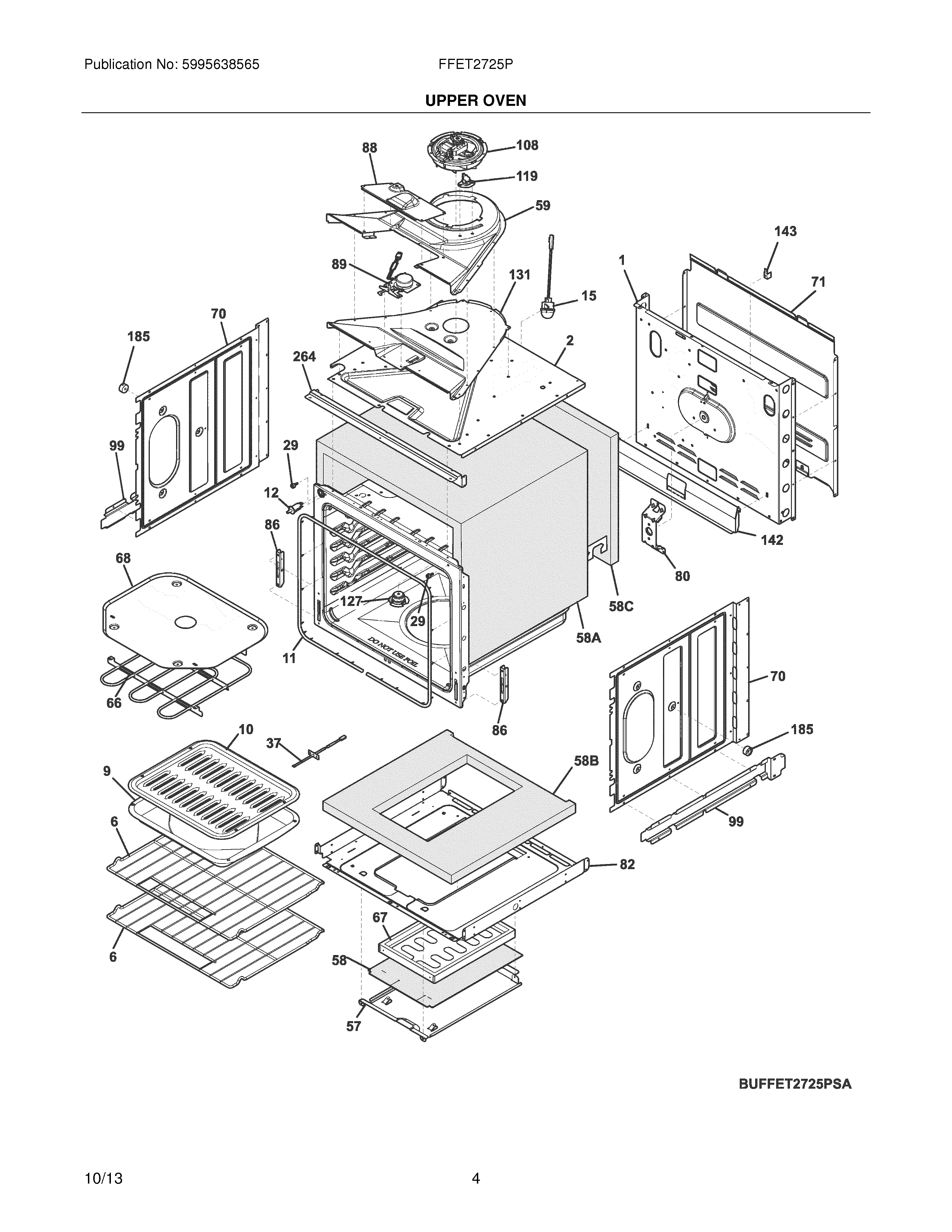

FFET2725PWB 05 – UPPER OVEN

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 318231870
NI	5303323130 Frigidaire Oven Screw
NI	WCI 318579001
NI	807597603 Frigidaire Oven Screw
NI	WCI 807048301
NI	316418900 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	139003805 Frigidaire Panel
2	139027804 Frigidaire Shield
6	139011900 Frigidaire Oven Rack
9	318138801 Frigidaire Oven Pan
10	316082001 Frigidaire Oven Insert
11	807545501 Frigidaire Oven Seal
12	316445501 Frigidaire Oven Switch
15	5304528790 Frigidaire Lamp Assembly Appliance
29	316517600 Frigidaire Oven Spacer
37	SENSOR
57	139021200 Frigidaire PANEL
58A	139001701 Frigidaire INSULATION
58	139022100 Frigidaire Insulation
58B	139021501 Frigidaire Insulation
58C	139021401 Frigidaire INSULATION
59	139027600 Frigidaire Oven Duct
66	5304523477 Frigidaire Element
67	318902502 Frigidaire Oven Element
68	WCI 808807902
70	139000601 Frigidaire Oven Shield
71	139022000 Frigidaire Oven Shield
80	139021101 Frigidaire Bracket Assembly
82	139003101 Frigidaire Shield
86	318561100 Frigidaire Receptacle
88	5304506964 Frigidaire Oven Cover
89	139021302 Frigidaire Oven Motor
99	139005201 Frigidaire Bracket
108	318575612 Frigidaire Oven Cooling Fan Motor
119	318578506 Frigidaire Oven High Limit Thermostat
127	139042600 Frigidaire Tube Assembly
131	139027700 Frigidaire Oven Duct
142	WCI 139021800
143	318172904 Frigidaire Bracket
185	318531800 Frigidaire Oven Spacer
264	139003501 Frigidaire Oven Trim Assembly
