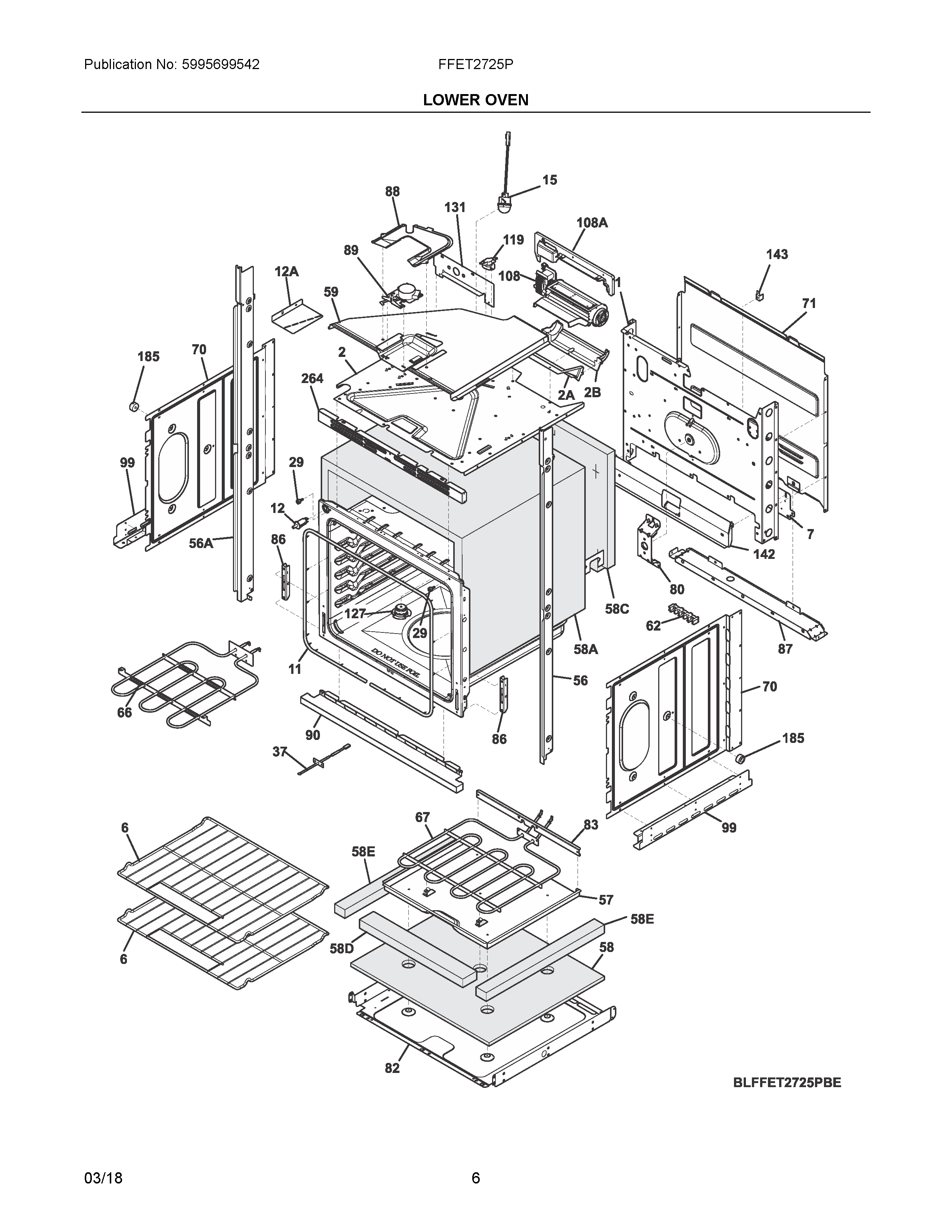

FFET2725PWE 04 – LOWER OVEN

FFET2725PWE 04 – LOWER OVEN

Written by

in

FFET2725PWE 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA5304517383 Frigidaire Harness
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIBA316021119 Frigidaire Oven Screw
NI5304517377 Frigidaire Harness Assembly
NIA807597603 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI5304517285 Frigidaire Assembly Harness
NIA139022101 Frigidaire Insulation
NIA316418900 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NIB5303289910 Frigidaire Oven Screw
NIB316021109 Frigidaire Oven Screw
NIA316205500 Frigidaire Oven Nut
NIA316001017 Frigidaire Screw
NI5304471184 Frigidaire Screw
1PANEL, MAIN BACK
2B139038901 Frigidaire Oven Housing
2A139015900 Frigidaire SHIELD
2139027805 Frigidaire Shield
6139011900 Frigidaire Oven Rack
7PANEL, SERVICE, MAIN BACK
11807545501 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
12B807641201 Frigidaire Shield
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
56318903678 Frigidaire Trim
56A318903679 Frigidaire Oven Trim
575304506949 Frigidaire Box
585304506952 Frigidaire Insulation
58A139001701 Frigidaire INSULATION
58C5304506954 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
58E5304506966 Frigidaire Insulation
59139015700 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304523477 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139022000 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
825304506947 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86318561100 Frigidaire Receptacle
87139021900 Frigidaire Bracket
885304506963 Frigidaire Cover
895304528835 Frigidaire Motor
90318259848 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
108A139015300 Frigidaire Oven Bracket
108WCI 139038301
119THERMOSTAT, SAFETY, 115C
127139042600 Frigidaire Tube Assembly
131WCI 5304506962
142WCI 5304506953
143318172904 Frigidaire Bracket
185318531800 Frigidaire Oven Spacer
264139013501 Frigidaire Trim
