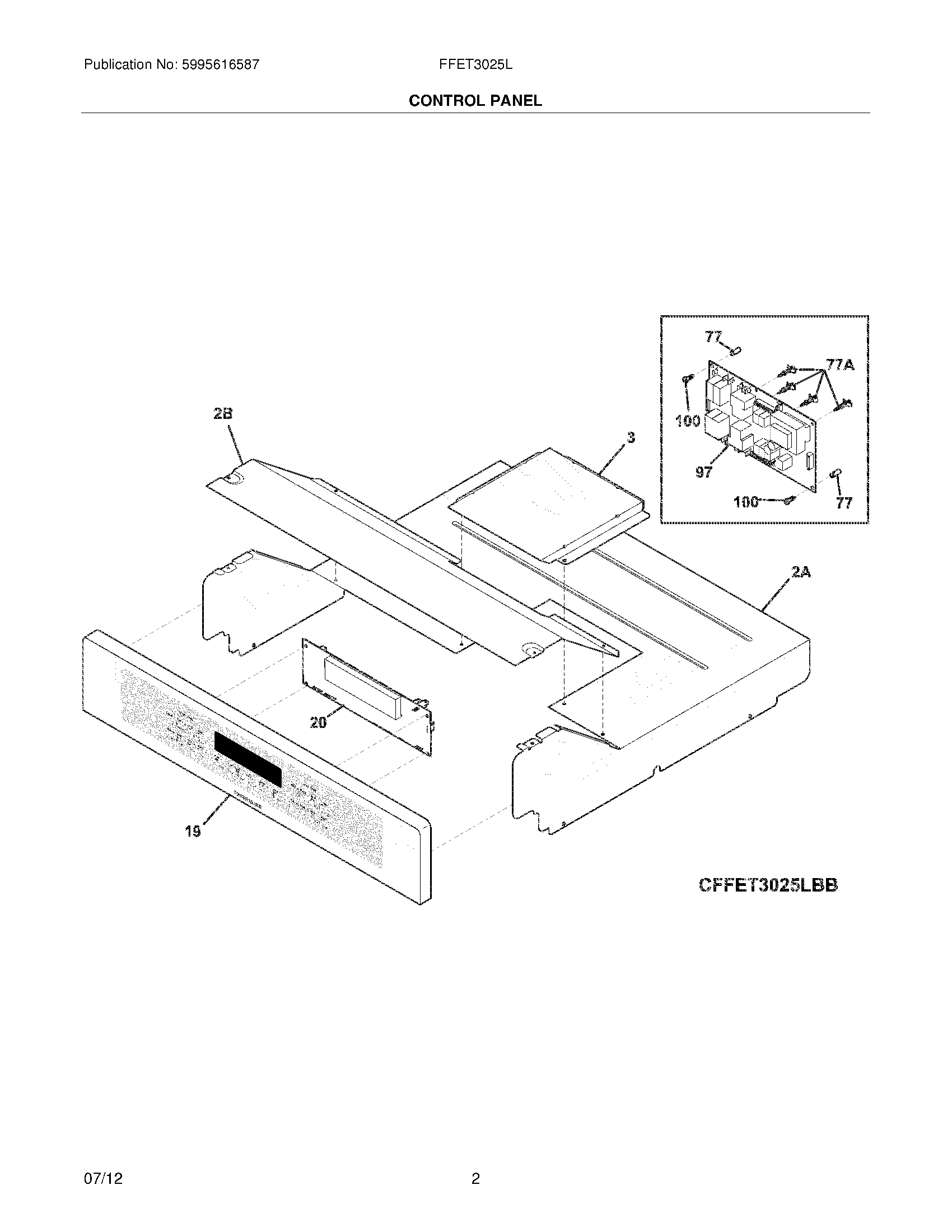

FFET3025LBB 03 – CONTROL PANEL

Products

Position	Product
NI	5304436875 Frigidaire Oven Screw
NI	5304517327 Frigidaire Harness
NI	Screw,No.8-18 x 3/8 ,(10)
NI	5303211311 Frigidaire Refrigerator Screw
NI	5304480396 Frigidaire Screw
2B	WCI 318260104
2A	WCI 318257305
3	318577801 Frigidaire Oven Box
19	318342945 Frigidaire Control Panel Assembly
20	WCI 316443884
77A	316114100 Frigidaire Oven Spacer
77	Spacer,control
97	316443946 Frigidaire Oven Control Board
100	5304401490 Frigidaire Oven Screw
