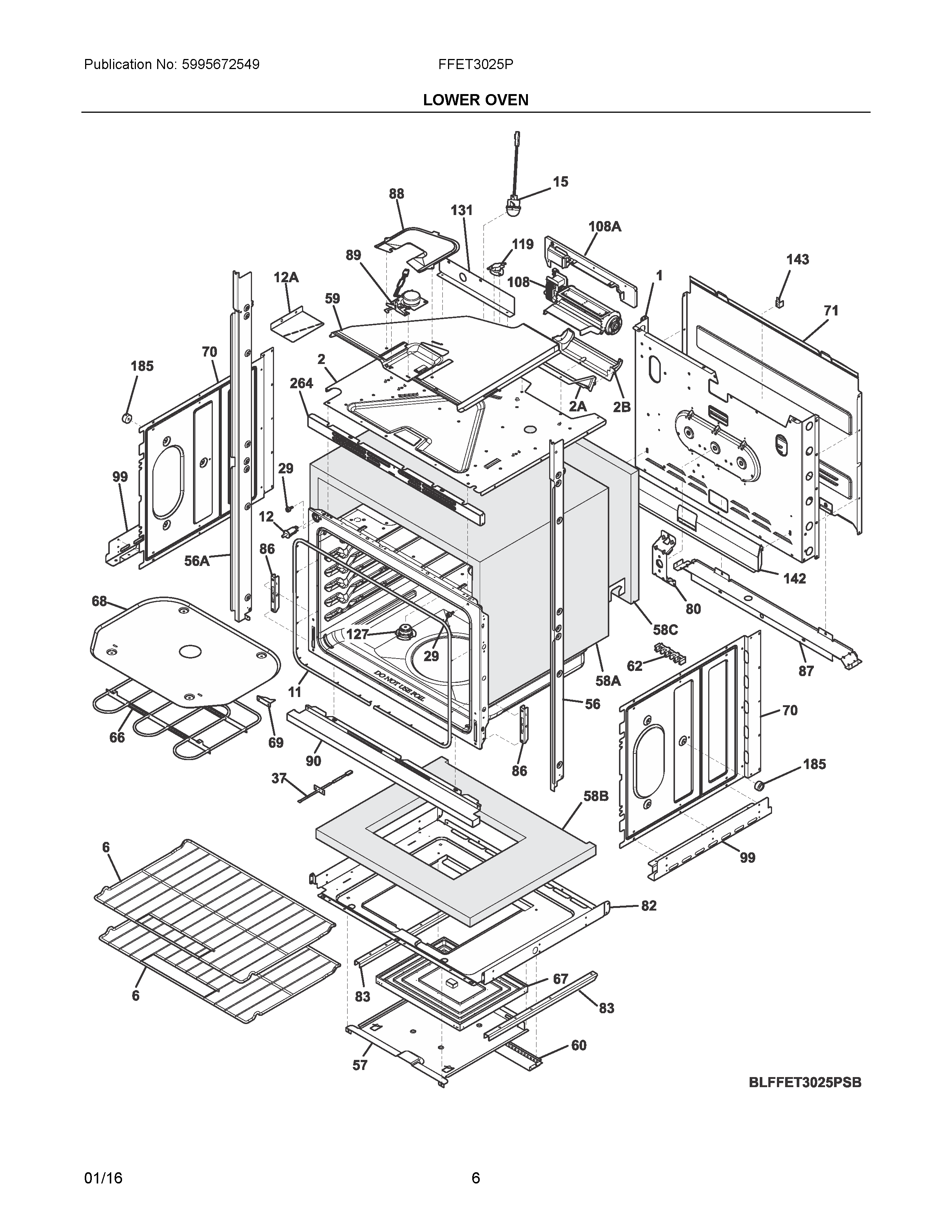

FFET3025PBB 04 – LOWER OVEN

FFET3025PBB 04 – LOWER OVEN

Written by

in

FFET3025PBB 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304506984 Frigidaire Harness Assembly
NIB5303323130 Frigidaire Oven Screw
NI5304470882 Frigidaire Oven Screw
NIAWCI 318231870
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA139022101 Frigidaire Insulation
NIA316418900 Frigidaire Oven Screw
NIA807597603 Frigidaire Oven Screw
NIBA316021119 Frigidaire Oven Screw
NI807460601 Frigidaire Oven Harness
NIB5303289910 Frigidaire Oven Screw
NIA316001017 Frigidaire Screw
NIB316021109 Frigidaire Oven Screw
NIA316205500 Frigidaire Oven Nut
NIA807181801 Frigidaire Wiring Harness
1WCI 139017301
2139028101 Frigidaire Shield
2A139015900 Frigidaire SHIELD
2B139038901 Frigidaire Oven Housing
6WCI 139011800
11807545502 Frigidaire Oven Seal
12316445501 Frigidaire Oven Switch
12A807641201 Frigidaire Shield
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
56A318903677 Frigidaire Oven Trim
56318903676 Frigidaire Oven Trim
57807988901 Frigidaire Oven Panel
58C139021400 Frigidaire Insulation
58B807989001 Frigidaire Insulation
58A139001700 Frigidaire Insulation
59139015700 Frigidaire Duct
60807285601 Frigidaire Oven Shield
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
67318601604 Frigidaire Oven Bake Element
68WCI 807890403
69WCI 139022500
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
82Shield,insulation ,lower
83807988802 Frigidaire Shield
86318561100 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506963 Frigidaire Cover
89139021302 Frigidaire Oven Motor
90139008707 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
108A139023900 Frigidaire Oven Bracket
108WCI 139038301
119318578506 Frigidaire Oven High Limit Thermostat
127139042600 Frigidaire Tube Assembly
1315304507691 Frigidaire Cover
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
185318531800 Frigidaire Oven Spacer
264139007801 Frigidaire Oven Trim
