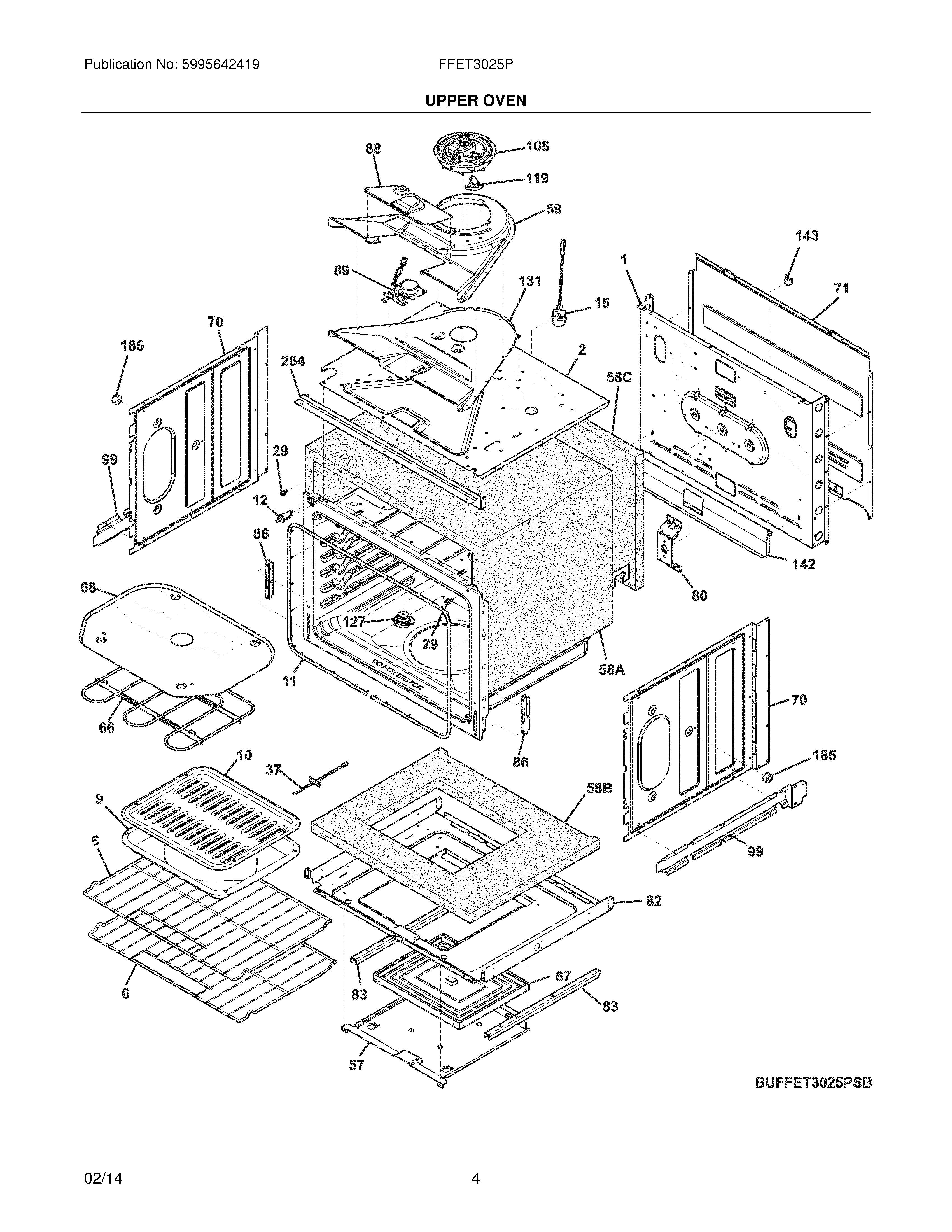

FFET3025PBC 05 – UPPER OVEN

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	807597603 Frigidaire Oven Screw
NI	5303323130 Frigidaire Oven Screw
NI	WCI 318231870
NI	WCI 318579001
NI	318946500 Frigidaire Oven Light Bulb Range/Wall
NI	316021109 Frigidaire Oven Screw
NI	316418900 Frigidaire Oven Screw
NI	WCI 807048301
1	WCI 139017304
2	139028107 Frigidaire Shield
6	WCI 139011800
9	318138801 Frigidaire Oven Pan
10	316082001 Frigidaire Oven Insert
11	807545502 Frigidaire Oven Seal
12	316445501 Frigidaire Oven Switch
15	5304528790 Frigidaire Lamp Assembly Appliance
29	316517600 Frigidaire Oven Spacer
37	SENSOR
57	807988901 Frigidaire Oven Panel
58B	807989001 Frigidaire Insulation
58C	139021400 Frigidaire Insulation
58A	139001700 Frigidaire Insulation
59	139027600 Frigidaire Oven Duct
66	5304521498 Frigidaire Element
67	318601604 Frigidaire Oven Bake Element
68	WCI 807890403
70	139000601 Frigidaire Oven Shield
71	139020000 Frigidaire Shield
80	139021101 Frigidaire Bracket Assembly
82	Shield,insulation ,lower
83	807988802 Frigidaire Shield
86	318561100 Frigidaire Receptacle
88	5304506964 Frigidaire Oven Cover
89	139021302 Frigidaire Oven Motor
99	139005201 Frigidaire Bracket
108	318575612 Frigidaire Oven Cooling Fan Motor
119	318578506 Frigidaire Oven High Limit Thermostat
127	139042600 Frigidaire Tube Assembly
131	139027700 Frigidaire Oven Duct
142	5304507678 Frigidaire Shield
143	318172904 Frigidaire Bracket
185	318531800 Frigidaire Oven Spacer
264	139017601 Frigidaire Oven Trim
