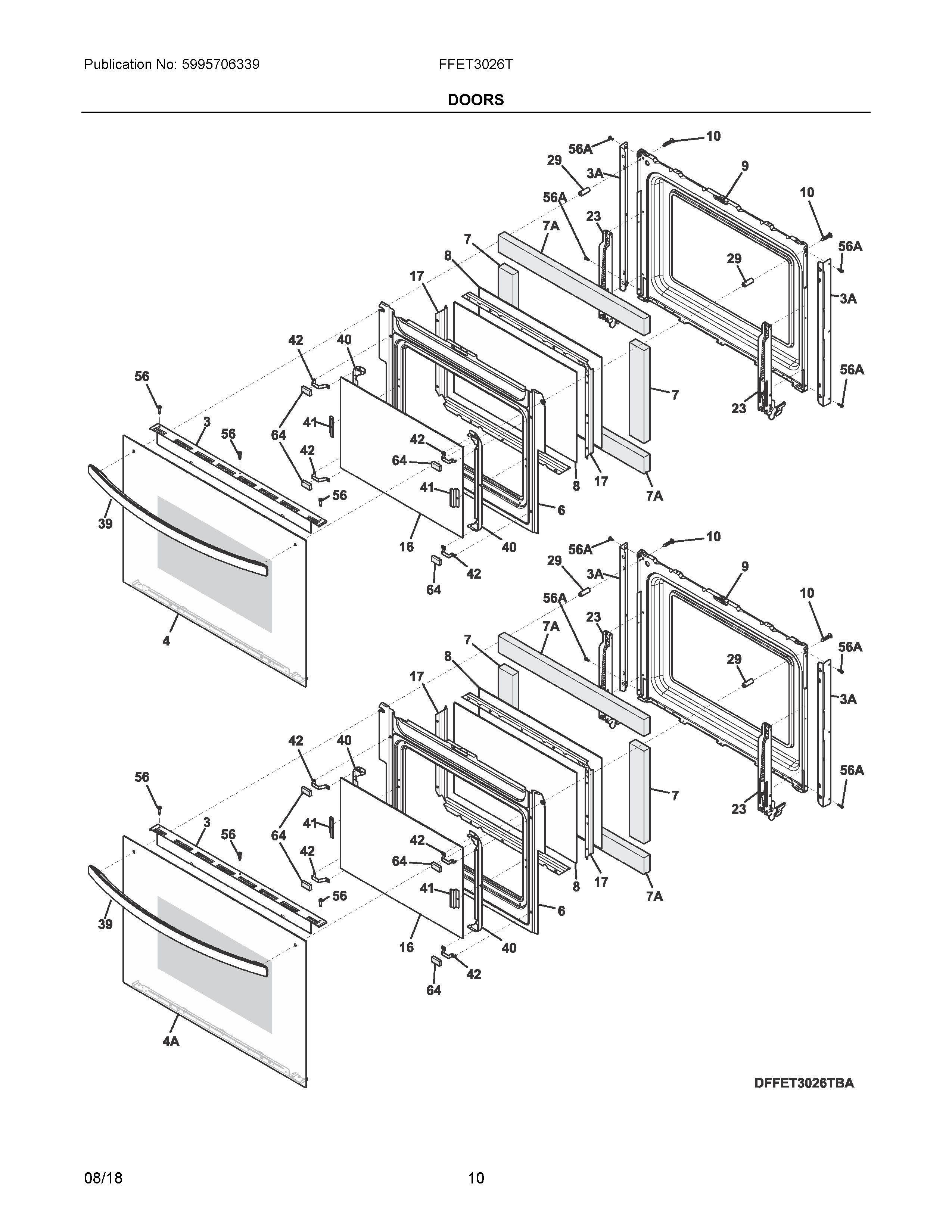

FFET3026TBC 05 – DOORS

Products

Position	Product
NIA	316418900 Frigidaire Oven Screw
3A	139014401 Frigidaire Oven Trim
3	139023301 Frigidaire Oven Trim
4A	WCI 5304510853
4	5304510850 Frigidaire Glass Assembly
6	139006905 Frigidaire Oven Baffle
7A	318372016 Frigidaire Insulation
7	318372017 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	139000405 Frigidaire Liner
10	SCREW, 10-14 X 1.920", HANDLE MTG.
16	316446401 Frigidaire Oven Glass
17	318264731 Frigidaire Oven Spacer
23	316575915 Frigidaire Oven Hinge
29	139023400 Frigidaire Oven Spacer
39	5304522046 Frigidaire Oven Handle Assembly
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
56A	5304480396 Frigidaire Screw
56	316021109 Frigidaire Oven Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
