FFET3026TSC 03 – UPPER OVEN

FFET3026TSC 03 – UPPER OVEN

Written by

in

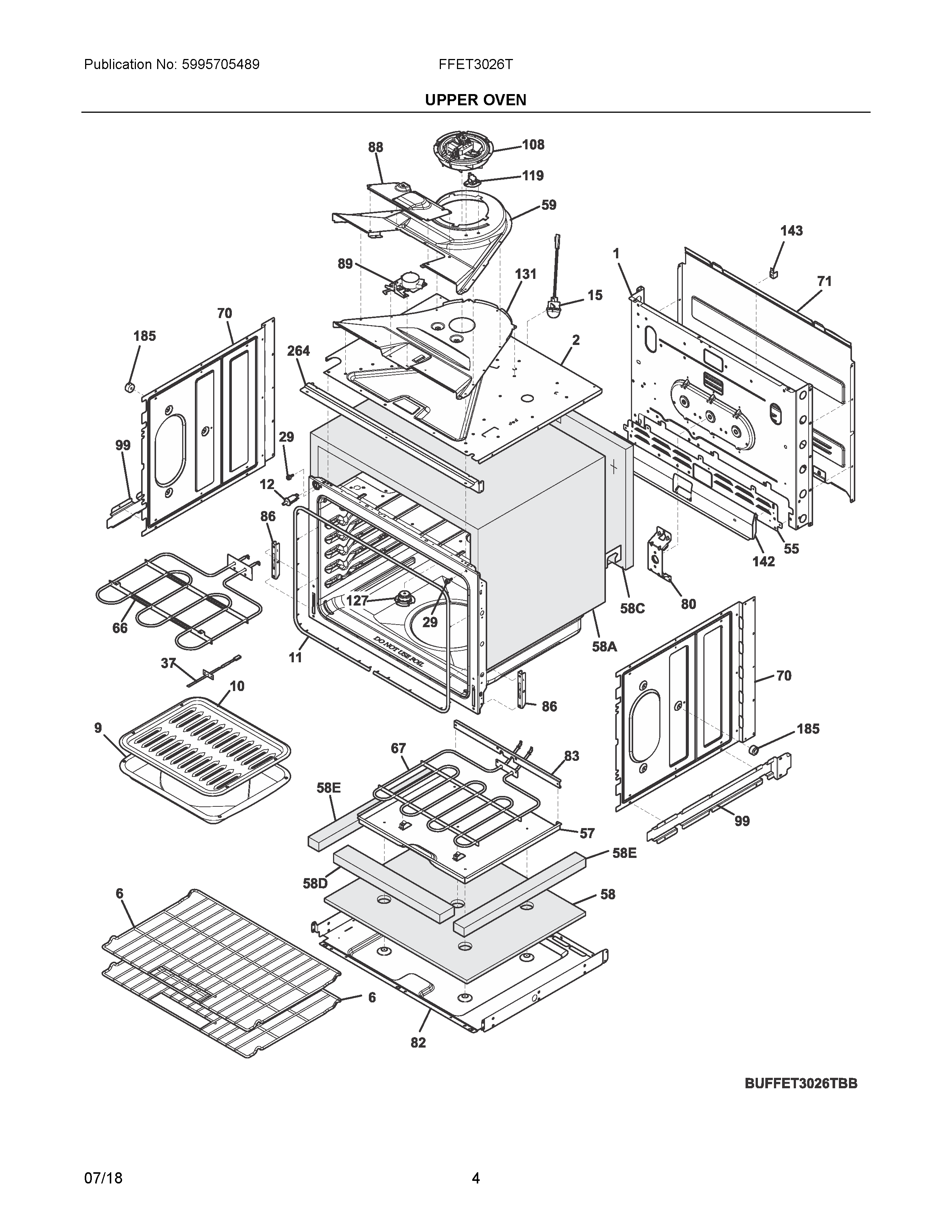

FFET3026TSC 03 – UPPER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIA807597603 Frigidaire Oven Screw
NIA5304518444 Frigidaire Harness
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NIB316021109 Frigidaire Oven Screw
1PANEL, MAIN BACK, UPPER OVEN
2139028107 Frigidaire Shield
6WCI 139011800
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
55PANEL, SERVICE, MAIN BACK
575304506949 Frigidaire Box
58A139001700 Frigidaire Insulation
58C5304507679 Frigidaire Insulation
58E5304506966 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
585304506952 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
665304521498 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304507676 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86318561100 Frigidaire Receptacle
885304506964 Frigidaire Oven Cover
895304528835 Frigidaire Motor
99139005201 Frigidaire Bracket
108318575612 Frigidaire Oven Cooling Fan Motor
119318578506 Frigidaire Oven High Limit Thermostat
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
185318531800 Frigidaire Oven Spacer
264139017601 Frigidaire Oven Trim
