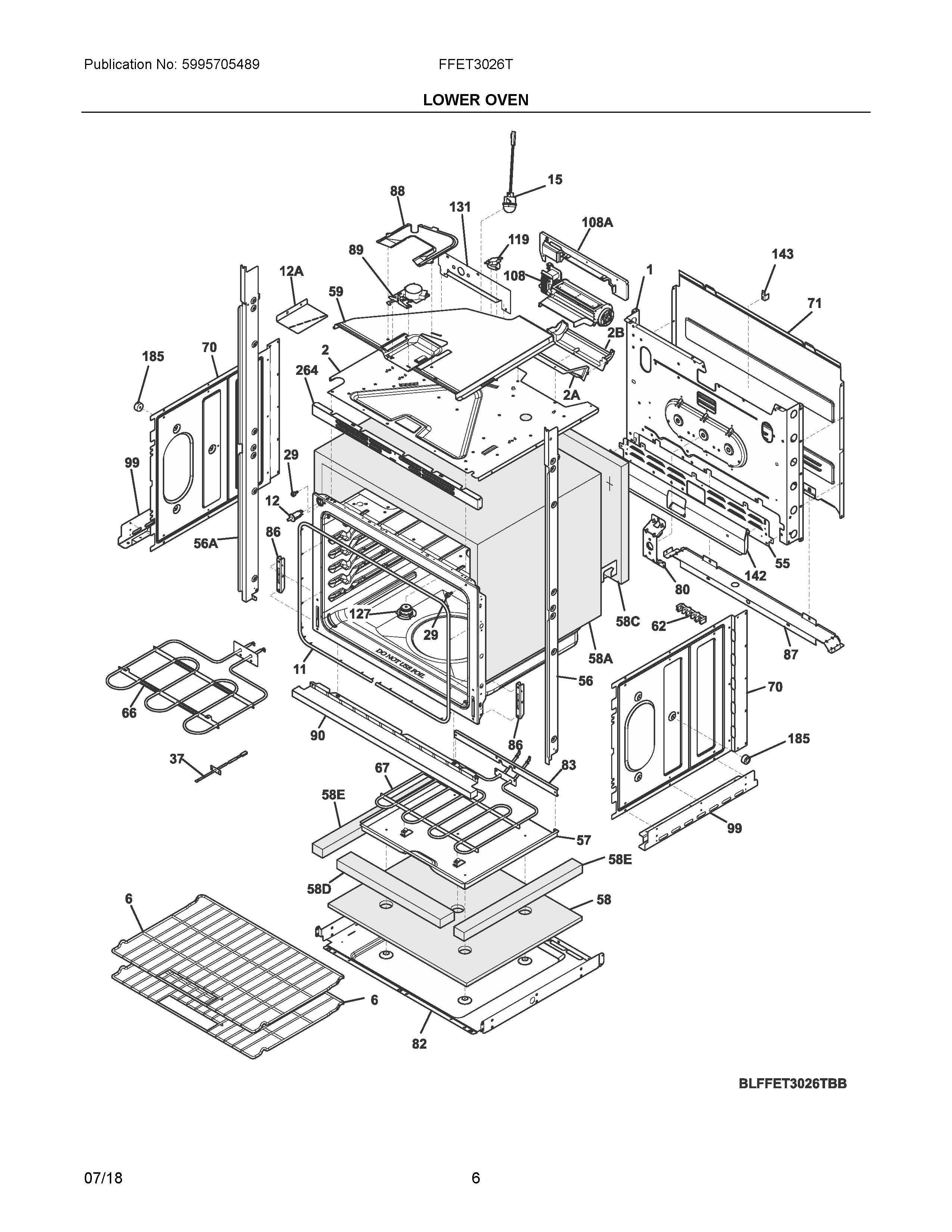

FFET3026TSC 04 – LOWER OVEN

FFET3026TSC 04 – LOWER OVEN

Written by

in

FFET3026TSC 04 – LOWER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA807597603 Frigidaire Oven Screw
NI5304470882 Frigidaire Oven Screw
NIA139022101 Frigidaire Insulation
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA316418900 Frigidaire Oven Screw
NI5304506955 Frigidaire Harness Assembly
NIA316021119 Frigidaire Oven Screw
NIA5304517383 Frigidaire Harness
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIB5303289910 Frigidaire Oven Screw
NIB316021109 Frigidaire Oven Screw
NI5304517285 Frigidaire Assembly Harness
NIA316205500 Frigidaire Oven Nut
NI5304517377 Frigidaire Harness Assembly
NIA316001017 Frigidaire Screw
1PANEL, MAIN BACK
2139028101 Frigidaire Shield
2B139038901 Frigidaire Oven Housing
2A139015900 Frigidaire SHIELD
6WCI 139011800
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
12A807641201 Frigidaire Shield
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
55PANEL, SERVICE, MAIN BACK
56A318903677 Frigidaire Oven Trim
56318903676 Frigidaire Oven Trim
575304506949 Frigidaire Box
58C5304507679 Frigidaire Insulation
58A139001700 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
585304506952 Frigidaire Insulation
58E5304506966 Frigidaire Insulation
59139015700 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304507676 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86318561100 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506963 Frigidaire Cover
895304528835 Frigidaire Motor
905304507695 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
108WCI 139038301
108A139023900 Frigidaire Oven Bracket
119318578506 Frigidaire Oven High Limit Thermostat
127139042600 Frigidaire Tube Assembly
1315304507691 Frigidaire Cover
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
185318531800 Frigidaire Oven Spacer
264139007801 Frigidaire Oven Trim
