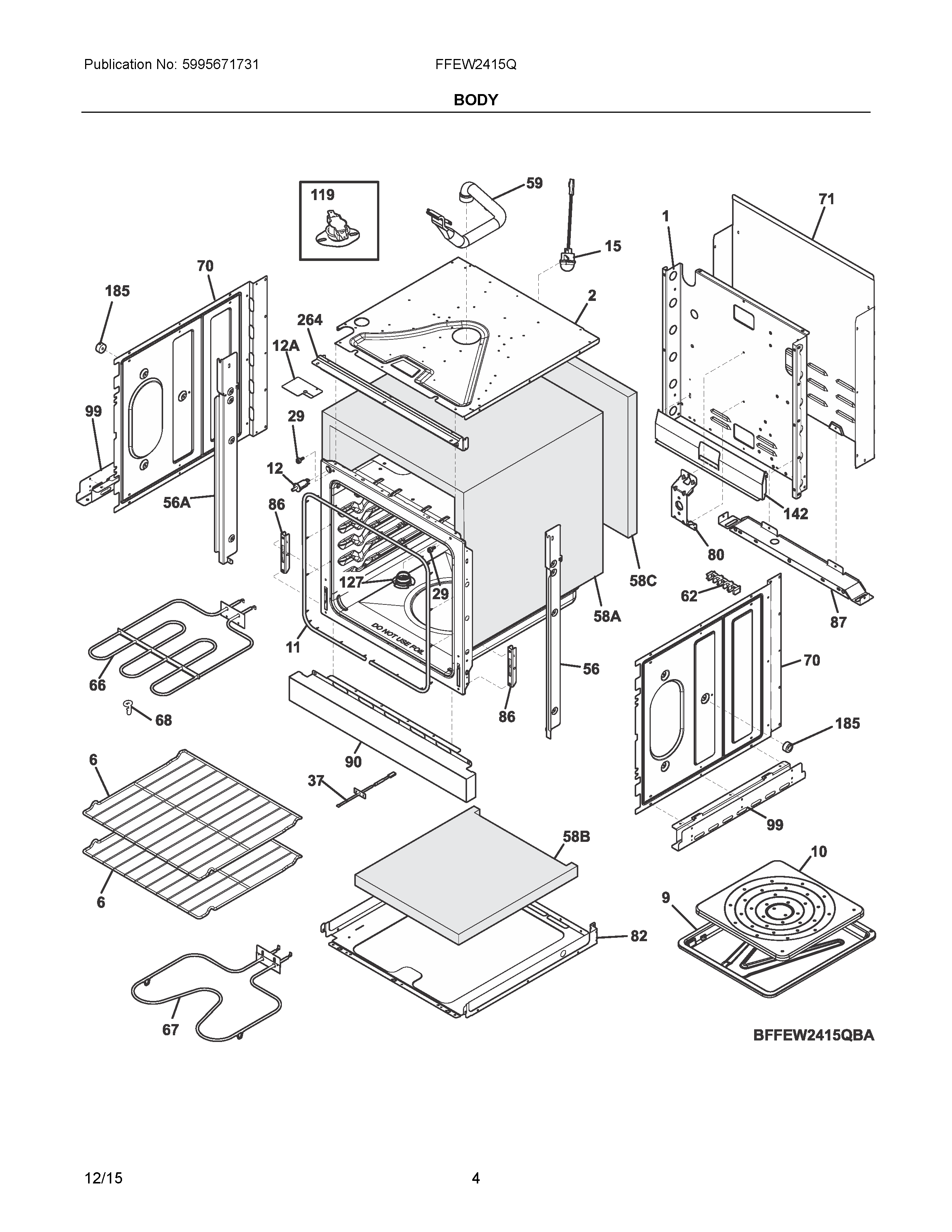

FFEW2415QWA 03 – BODY

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	318946500 Frigidaire Oven Light Bulb Range/Wall
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	5304471184 Frigidaire Screw
NIA	316418900 Frigidaire Oven Screw
NI	WCI 5304498105
NIA	316001017 Frigidaire Screw
NIA	807597603 Frigidaire Oven Screw
NIB	5303289910 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NIA	316205500 Frigidaire Oven Nut
NI	5304506983 Frigidaire Harness Assembly
NI	WCI 318579001
1	WCI 139029600
2	WCI 139028800
6	139012300 Frigidaire Oven Rack
9	PAN-BROILER
10	INSERT-BROILER PAN
11	807108501 Frigidaire Oven Seal
12A	5304504232 Frigidaire Oven Shield
12	808136601 Frigidaire Oven Switch
15	5304528790 Frigidaire Lamp Assembly Appliance
29	316517600 Frigidaire Oven Spacer
37	SENSOR
56A	139079501 Frigidaire TRIM
56	139079401 Frigidaire TRIM
58B	WCI 139028600
58A	WCI 139013600
58C	WCI 139028500
59	TUBE, OVEN VENT
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	139203500 Frigidaire Oven Element
67	139086600 Frigidaire Oven Element
68	5304403015 Frigidaire Oven Support
70	139000601 Frigidaire Oven Shield
71	139029000 Frigidaire SHIELD
80	139021101 Frigidaire Bracket Assembly
82	139033200 Frigidaire Shield
86	318561100 Frigidaire Receptacle
87	139074000 Frigidaire Bracket
90	139905001 Frigidaire Oven Trim
99	139032900 Frigidaire Bracket
119	318578506 Frigidaire Oven High Limit Thermostat
127	318317006 Frigidaire Oven Adapter
142	WCI 139029700
185	318531800 Frigidaire Oven Spacer
264	139086101 Frigidaire TRIM
