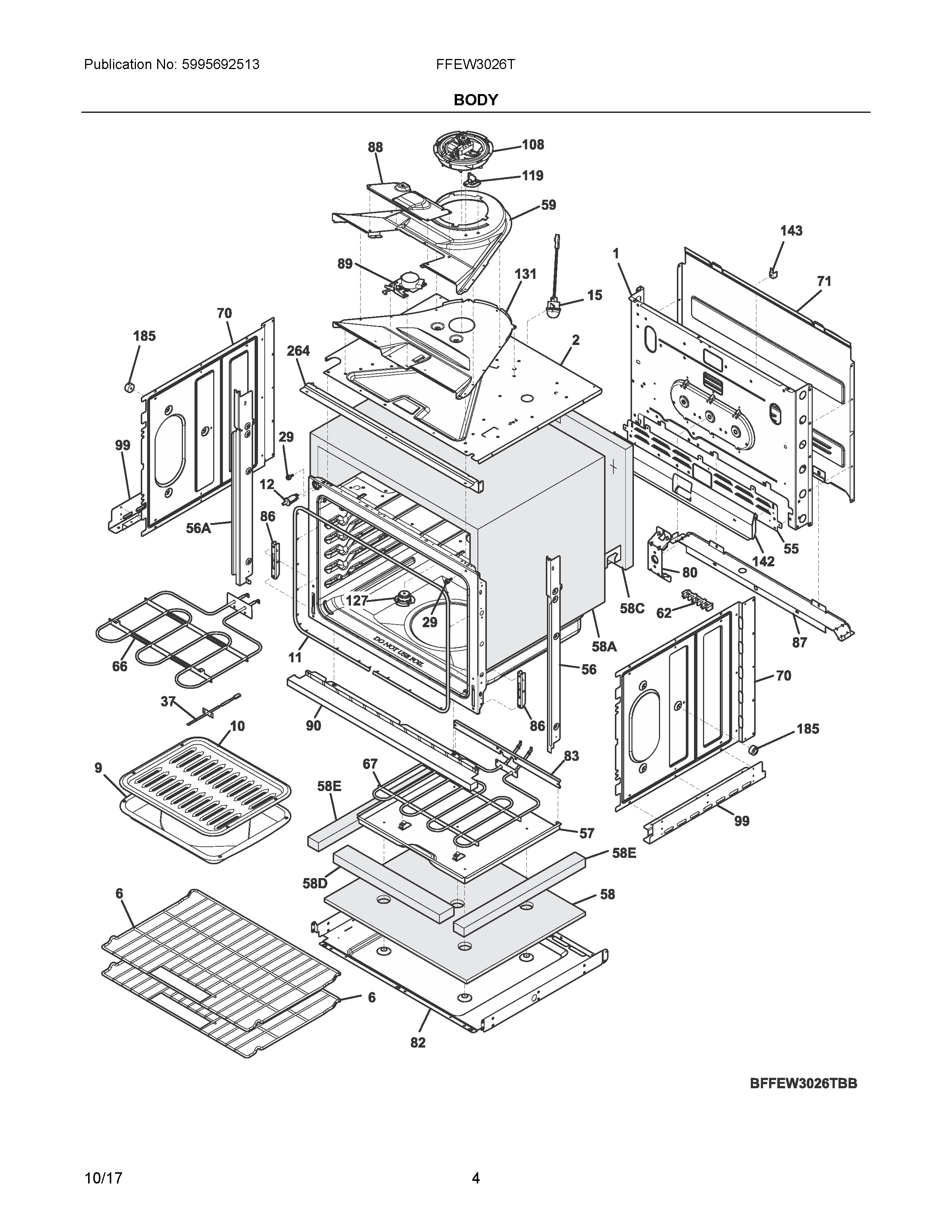

FFEW3026TSB 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NI5304470882 Frigidaire Oven Screw
NIA5304517288 Frigidaire Harness Assembly
NI5304517285 Frigidaire Assembly Harness
NIA316001017 Frigidaire Screw
NIB5303289910 Frigidaire Oven Screw
NIB316021109 Frigidaire Oven Screw
NIA316205500 Frigidaire Oven Nut
NI5304506983 Frigidaire Harness Assembly
NI5304520318 Frigidaire Harness
NIA807597603 Frigidaire Oven Screw
1PANEL, MAIN BACK, UPPER OVEN
2139028107 Frigidaire Shield
6WCI 139011800
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
55PANEL, SERVICE, MAIN BACK
56A318903760 Frigidaire Trim
56318903759 Frigidaire Trim
575304506949 Frigidaire Box
58C5304507679 Frigidaire Insulation
585304506952 Frigidaire Insulation
58A139001700 Frigidaire Insulation
58E5304506966 Frigidaire Insulation
58D5304506965 Frigidaire Insulation
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
675304506946 Frigidaire Oven Element
70139000601 Frigidaire Oven Shield
71139020000 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304507676 Frigidaire Shield
835304506951 Frigidaire Shield Appliance
86318561100 Frigidaire Receptacle
87139020100 Frigidaire Oven Bracket
885304506964 Frigidaire Oven Cover
895304528835 Frigidaire Motor
905304507695 Frigidaire Oven Trim
99318256201 Frigidaire Oven Bracket
108318575612 Frigidaire Oven Cooling Fan Motor
119318578506 Frigidaire Oven High Limit Thermostat
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
1425304507678 Frigidaire Shield
143318172904 Frigidaire Bracket
185318531800 Frigidaire Oven Spacer
264139017601 Frigidaire Oven Trim
