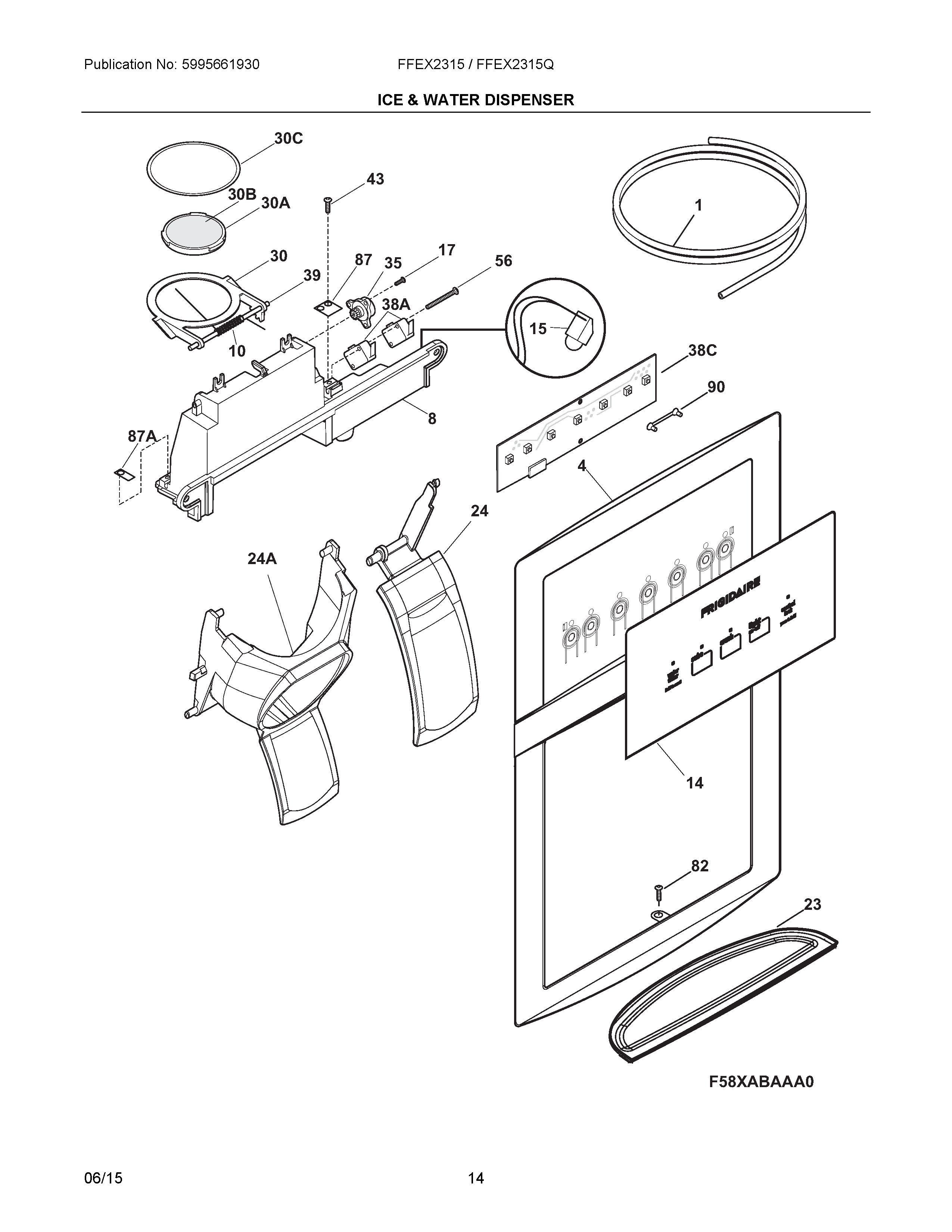

FFEX2315QM0 08 – ICE & WATER DISPENSER

FFEX2315QM0 08 – ICE & WATER DISPENSER

Written by

in

FFEX2315QM0 08 – ICE & WATER DISPENSER

Products

PositionProduct
NIC241953902 Frigidaire Refrigerator Screw
NI5304521768 Frigidaire Refrigerator Harness
NIA218976419 Frigidaire Refrigerator Tube
NI218515403 Frigidaire Refrigerator Clip-Grille
NIB218976429 Frigidaire Refrigerator Tube
NIC241850615 Frigidaire Ice Maker Fill Tube Assembly
NID240561701 Frigidaire Refrigerator Seal
1218976409 Frigidaire Refrigerator Water Tube
4241946813 Frigidaire Refrigerator Cover-Module
8WCI 242083404
10241688901 Frigidaire Refrigerator Torsion Spring
14242083003 Frigidaire Refrigerator Module Cover Label
17241679801 Frigidaire Screw
23241947003 Frigidaire Refrigerator Drip Tray
24A242083503 Frigidaire Refrigerator Actuator
24ACTUATOR-WATER, BLACK
30241688401 Frigidaire Ice Door Bracket
30C241688701 Frigidaire Refrigerator Door Seal
30B241688601 Frigidaire Refrigerator Door Insulation
30A241688501 Frigidaire Refrigerator Door Center
35241689301 Frigidaire Refrigerator Rotary Damper
38A241689104 Frigidaire Refrigerator Switch-Micro
38CA242053503 Frigidaire Refrigerator Control Board
39241688801 Frigidaire Refrigerator Pin-Hinge
43WCI 215296301
56241689201 Frigidaire Refrigerator Screw-Micro Switch
825304453707 Frigidaire Oven Screw
87A241688301 Frigidaire Refrigerator Bearing Plate
87241688302 Frigidaire Refrigerator Bearing Plate
90241732703 Frigidaire Refrigerator Light Pipe
