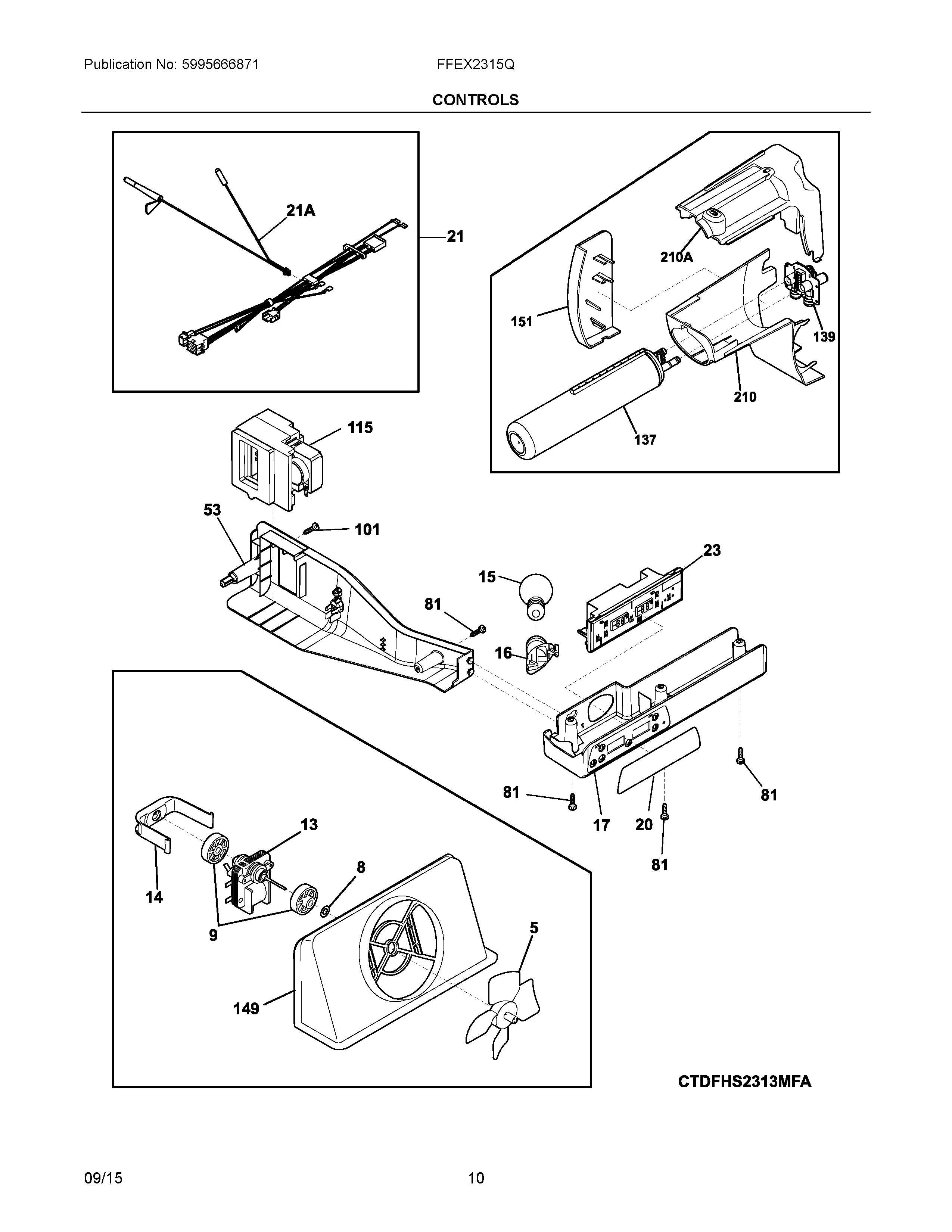

FFEX2315QS1 06 – CONTROLS

Products

PositionProduct
NIA5304521761 Frigidaire Refrigerator Harness
NIA241528303 Frigidaire Refrigerator Seal
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8215474201 Frigidaire Refrigerator Washer
9241563601 Frigidaire Refrigerator Motor Mounting Bushing
13242077705 Frigidaire Refrigerator Fan Motor
14242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17241633512 Frigidaire Refrigerator Control Box
20241604011 Frigidaire Refrigerator Control Box Label
21A242278801 Frigidaire Refrigerator Thermistor Assembly
215304521777 Frigidaire Refrigerator Wiring Harness
235304499060 Frigidaire Refrigerator Control
53241608902 Frigidaire Refrigerator Control Box
815304455650 Frigidaire Refrigerator Screw
101241637202 Frigidaire Refrigerator Screw
115242303001 Frigidaire Refrigerator Damper Assembly
137WF3CB Frigidaire PureSource Water Filter
139242009602 Frigidaire Refrigerator Water Filter Base
149242204505 Frigidaire Refrigerator Shroud
151242069701 Frigidaire Refrigerator Cover-Water Filter
210A241998303 Frigidaire Refrigerator Water Filter
210241983814 Frigidaire Refrigerator Water Filter Housing
