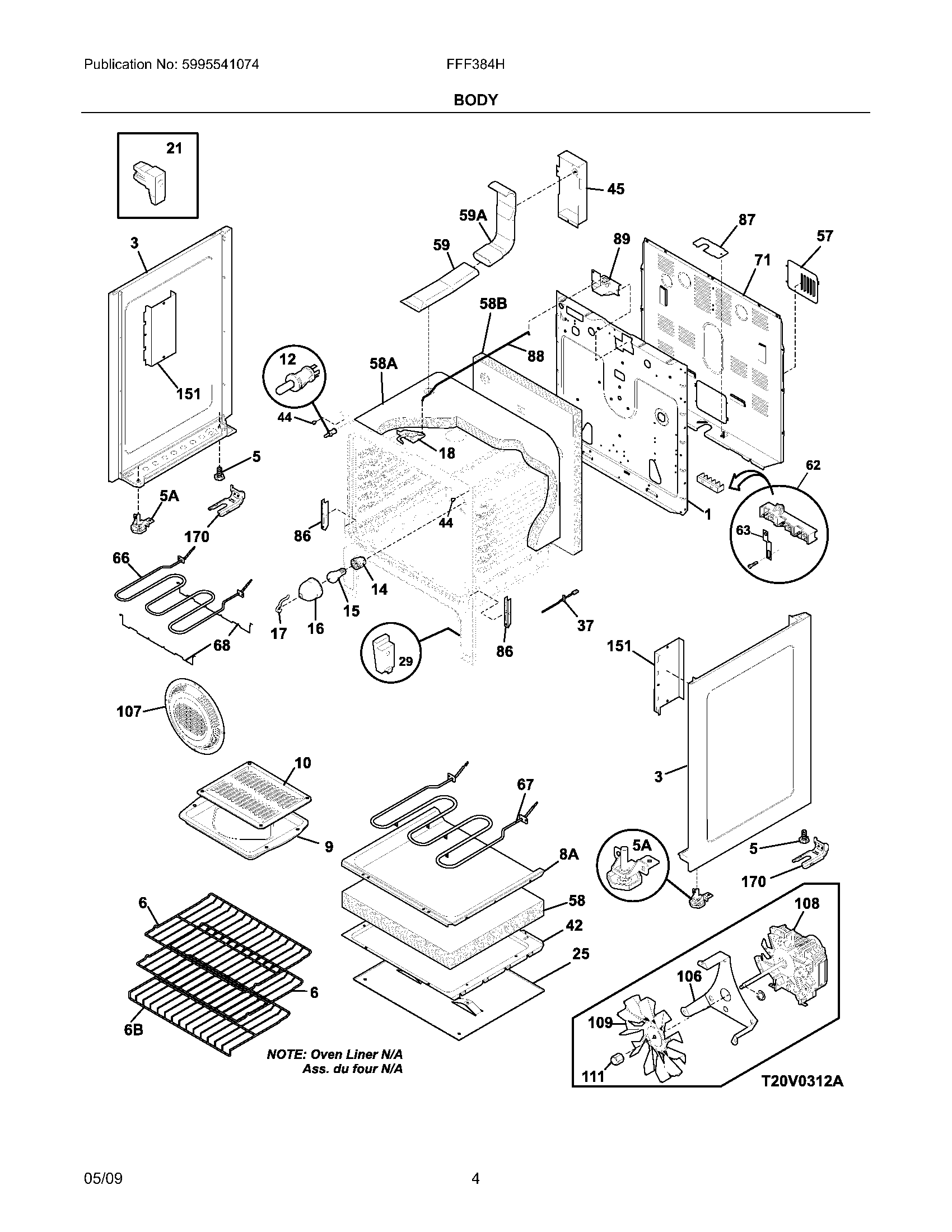

FFF384HCB 05 – BODY

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316021132 Frigidaire Screw
NI	316231800 Frigidaire Cover
NI	316279600 Frigidaire Screw
NI	316418901 Frigidaire Oven Screw
NI	316205500 Frigidaire Oven Nut
NI	WCI 316506246
NI	5308014215 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	316021109 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	316542203 Frigidaire Insulator
1	WCI 316401801
3	WCI 316400128
3	WCI 316400129
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6B	WCI 316524200
6	316496201 Frigidaire Oven Rack
8A	WCI 316411102
9	316081902 Frigidaire Oven Pan
10	316082002 Frigidaire Oven Insert Assembly
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	WCI 316539001
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
25	316406200 Frigidaire Oven Shield
29	807047102 Frigidaire Oven Front Drawer Glide
37	316490000 Frigidaire Oven Range Temperature Sensor
42	316407700 Frigidaire Oven Shield
44	316517600 Frigidaire Oven Spacer
45	316234100 Frigidaire Oven Shield
57	316457801 Frigidaire Oven Cover
58	WCI 316403801
58B	316406500 Frigidaire Insulation
58A	316406602 Frigidaire Insulation
59A	316208304 Frigidaire Oven Tube
59	316208401 Frigidaire Oven Vent Tube
62	5303935271 Frigidaire Oven Terminal Block
63	5304536404 Frigidaire Strap
66	316430900 Frigidaire Oven Broil Element
67	316415900 Frigidaire Oven Element
68	316429100 Frigidaire Oven Support Bracket
71	WCI 316422304
86	316441300 Frigidaire Receptacle
87	316081200 Frigidaire Oven Bracket
88	316203500 Frigidaire Oven Rod
89	WCI 316435500
106	316404100 Frigidaire Oven Bracket
107	316026701 Frigidaire Oven Cover Assembly
108	WCI 316433400
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
151	WCI 316404600
170	316116000 Frigidaire Screw
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
