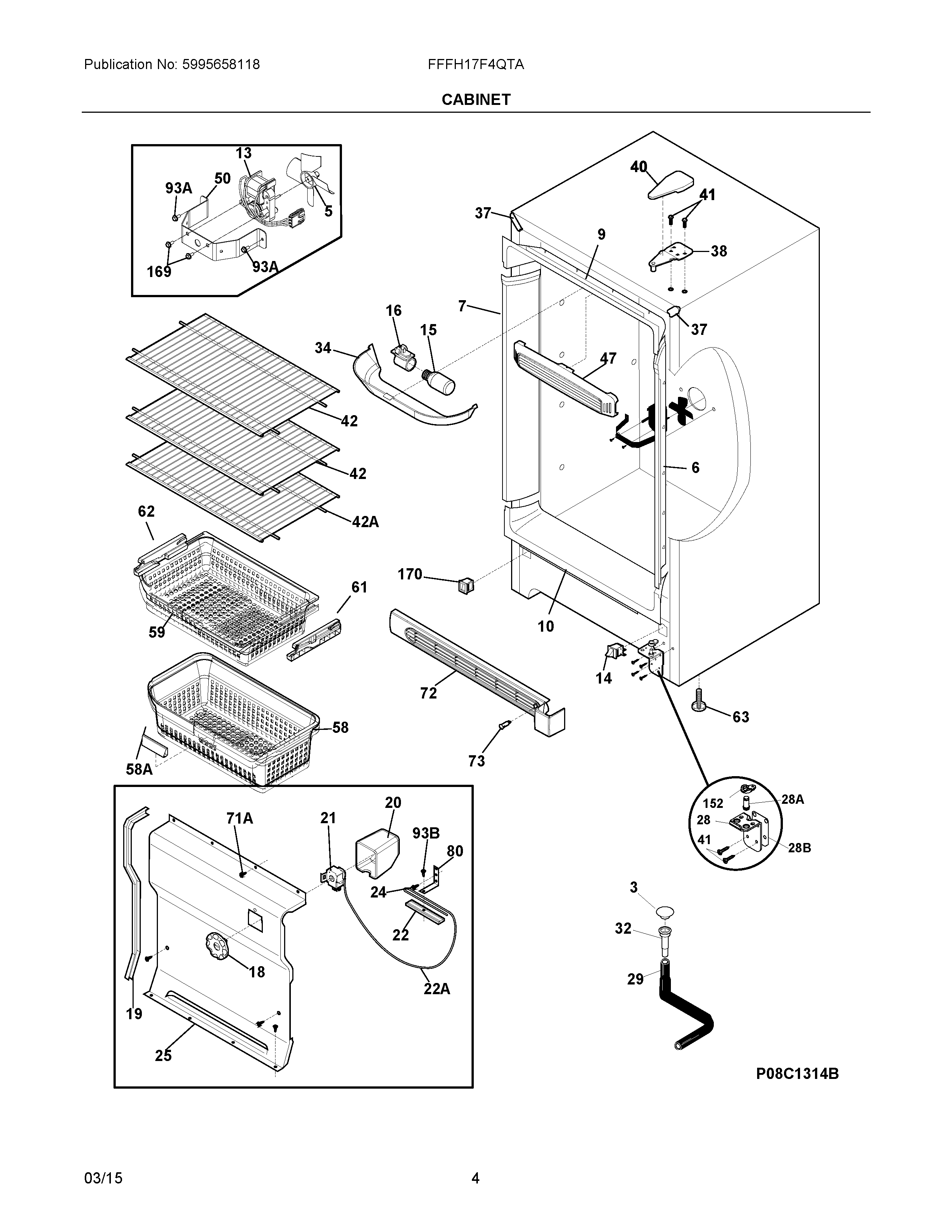

FFFH17F4QTA 03 – CABINET

FFFH17F4QTA 03 – CABINET

Written by

in

FFFH17F4QTA 03 – CABINET

Products

Position	Product
NI	216858001 Frigidaire Refrigerator Screw
NIB	Bracket,RH leg levelor
NIA	Bracket,LH leg levelor
NI	297001704 Frigidaire Refrigerator Insulation
NI	216502400 Frigidaire Refrigerator Grommet Unit
NI	WCI 5303313703
NIAA	HANDLE BASKET, FREEZER GRE
3	216503100 Frigidaire Refrigerator Screen-Drain
5	FAN BLADE, EVAPORATOR
6	297435601 Frigidaire Breaker
7	297435600 Frigidaire Refrigerator Breaker
9	297403901 Frigidaire Refrigerator Breaker
10	297403902 Frigidaire Refrigerator Breaker
12	WCI 242115804
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15	5304517886 Frigidaire Refrigerator Light
16	297139501 Frigidaire Refrigerator Socket
18	216707200 Frigidaire Refrigerator Cold Control Knob
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20	216967201 Frigidaire Refrigerator Temp Control Cover
21	5304513033 Frigidaire Refrigerator Temperature Control
22	CLAMP, CAP TUBE, COLD CONTROL
22A	TUBE
24	Screw,type A ,10-24 x 3/8
25	WCI 297099250
26	297415900 Frigidaire Door Closer Ramp
28B	5304497244 Frigidaire Refrigerator Shim
28A	297438300 Frigidaire Refrigerator Pin
28	297416301 Frigidaire Refrigerator Hinge
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
34	WCI 297184400
37	297273906 Frigidaire Refrigerator Corner Trim Cabinet
38	297283803 Frigidaire Freezer Upper Door Hinge
40	WCI 297164405
41	240578902 Frigidaire Screw Mounting Hinge
42	WCI 297441905
42A	297441901 Frigidaire Refrigerator Shelf
47	297192903 Frigidaire Refrigerator Baffle
49	216937701 Frigidaire Refrigerator Trivet
50	WCI 08013207
58	808618002 Frigidaire Refrigerator Basket
58A	808408301 Frigidaire Refrigerator Clip
59	808617902 Frigidaire Refrigerator Mid Level Basket
61	808902901 Frigidaire Hanging Basket Hanger
62	808902902 Frigidaire Hanging Basket Support, Left Hand
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	297387919 Frigidaire Kickplate Grille
80	WCI 06594601
93A	241853202 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
169	216912401 Frigidaire Refrigerator Screw
170	297280403 Frigidaire Refrigerator Valve
