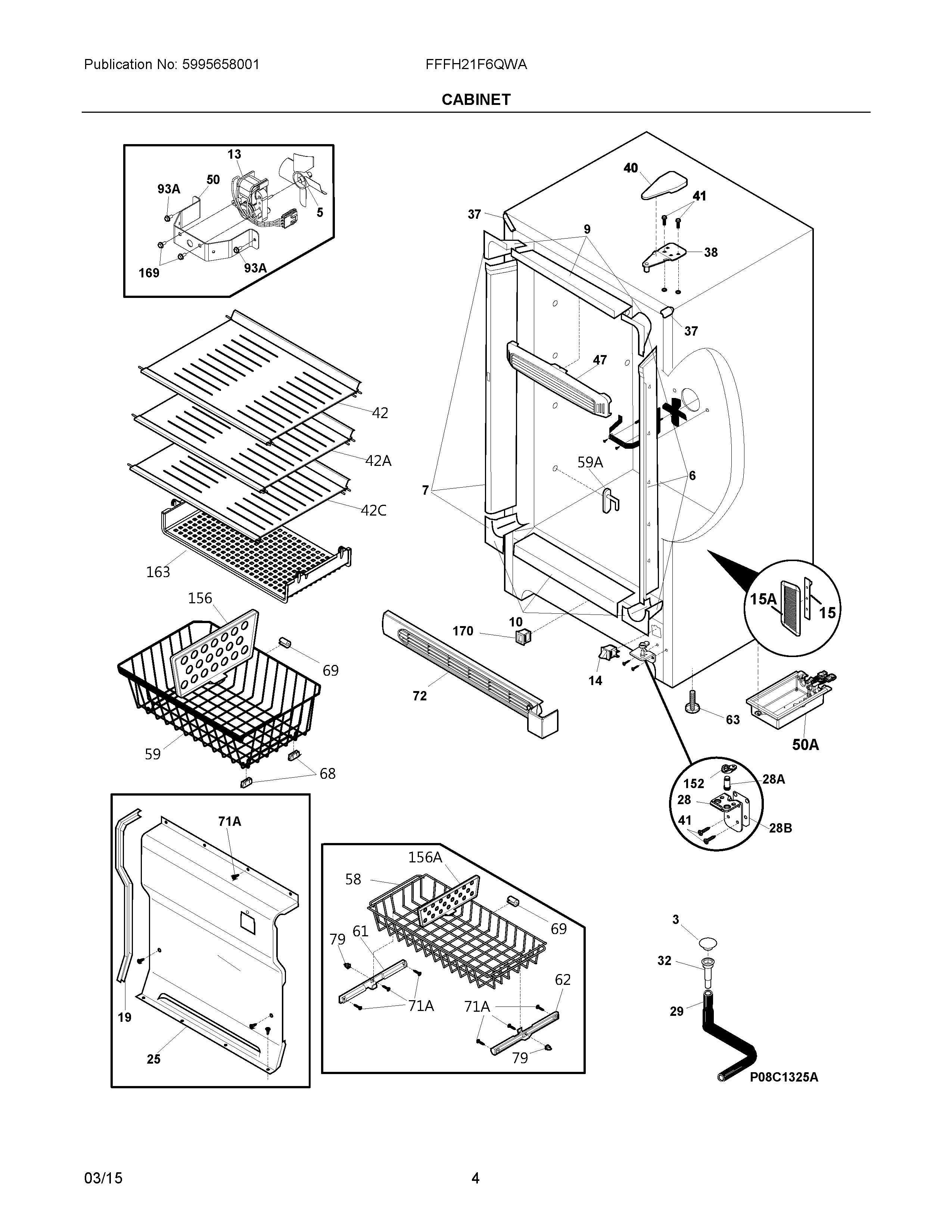

FFFH21F6QWA 03 – CABINET

FFFH21F6QWA 03 – CABINET

Written by

in

FFFH21F6QWA 03 – CABINET

Products

Position	Product
NI	297001704 Frigidaire Refrigerator Insulation
NI	216337701 Frigidaire Refrigerator Screw
NI	5304496283 Frigidaire Refrigerator Grommet
NIA	Bracket,LH leg levelor
NI	WCI 5304496697
NI	5304497974 Frigidaire Corner Trim Kit
NI	WCI 5304495543
NIB	Bracket,RH leg levelor
NIC	808408304 Frigidaire Refrigerator Clip
NI	WCI 5303313703
3	216503100 Frigidaire Refrigerator Screen-Drain
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	297435605 Frigidaire Refrigerator Breaker
7	297435604 Frigidaire Refrigerator Breaker
9	297403901 Frigidaire Refrigerator Breaker
10	297403902 Frigidaire Refrigerator Breaker
13	EVAP FAN MOTOR – 115V
14	216822900 Frigidaire Refrigerator Switch
15A	242202701 Frigidaire Refrigerator Lens
15	242196204 Frigidaire Refrigerator Light Board
19	216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
25	WCI 297099251
26	297415900 Frigidaire Door Closer Ramp
28	297416301 Frigidaire Refrigerator Hinge
28B	5304497244 Frigidaire Refrigerator Shim
28A	297438300 Frigidaire Refrigerator Pin
29	5304512272 Frigidaire Hose Drain
32	5304511843 Frigidaire Refrigerator Sleeve
37	297273904 Frigidaire Refrigerator Corner Cabinet Trim
38	297283803 Frigidaire Freezer Upper Door Hinge
40	297164400 Frigidaire Refrigerator Hinge Cover
41	240578902 Frigidaire Screw Mounting Hinge
42	5304497873 Frigidaire Refrigerator Shelf
42A	A02289402 Frigidaire Refrigerator Fixed Shelf Frame U
42C	5304497953 Frigidaire Freezer Shelf
47	WCI 297192902
50A	5304497977 Frigidaire Refrigerator Main Power Board
50	216394050 Frigidaire Refrigerator Bracket
58	808618202 Frigidaire Refrigerator Lower Basket
58A	808408301 Frigidaire Refrigerator Clip
59A	STOP-BASKET, (2)
59	BASKET
61	808902901 Frigidaire Hanging Basket Hanger
62	808902902 Frigidaire Hanging Basket Support, Left Hand
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71A	Screw,8-18AB x.470 QX
72	WCI 297387701
79	301036 Frigidaire Refrigerator Insert Nut
93	216858001 Frigidaire Refrigerator Screw
93B	216036601 Frigidaire Refrigerator Screw
93A	241853202 Frigidaire Refrigerator Screw
152	5304511026 Frigidaire Refrigerator Freezer Hinge Bearing
156A	808618102 Frigidaire Refrigerator Divider
156	808617801 Frigidaire Refrigerator Divider-Lower
163	808617701 Frigidaire Refrigerator Shelf
169	216912401 Frigidaire Refrigerator Screw
170	297280400 Frigidaire Refrigerator Valve
