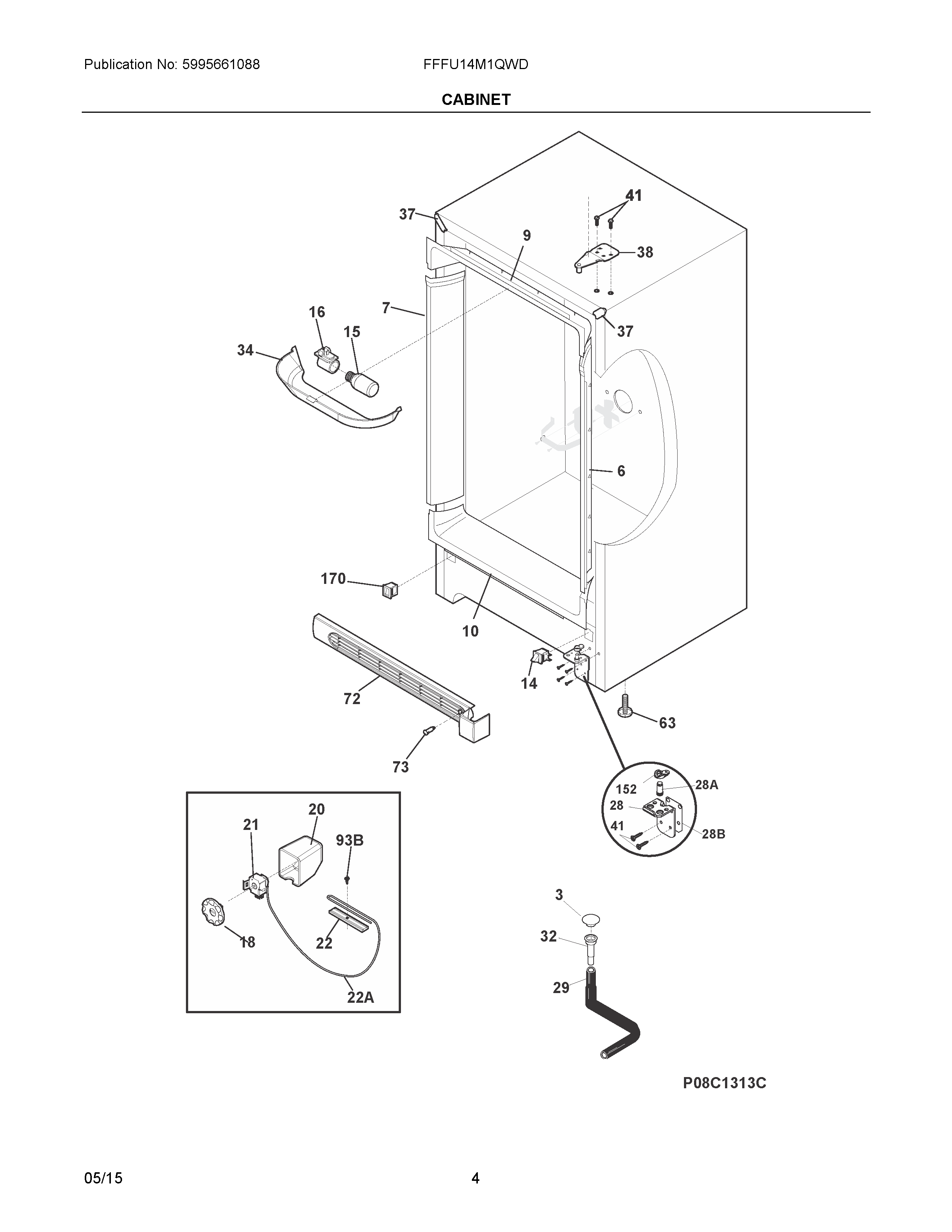

FFFU14M1QWD 03 – CABINET

FFFU14M1QWD 03 – CABINET

Written by

in

FFFU14M1QWD 03 – CABINET

Products

PositionProduct
NIWCI 5304495532
NI5304498525 Frigidaire Service Data Sheet
NIWCI 09948773
NIBBracket,RH leg levelor
NIABracket,LH leg levelor
NI297001704 Frigidaire Refrigerator Insulation
NIWCI 5303313703
NI241853202 Frigidaire Refrigerator Screw
3PLUG-DRAIN,EXTERIOR
6297435603 Frigidaire Breaker
7297435602 Frigidaire Breaker
9BREAKER, TOP
10297381502 Frigidaire BREAKER
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
20COVER-CONTROL HOUSING
215304514707 Frigidaire Refrigerator Control
22CLAMP, CAP TUBE, COLD CONTROL
26297415900 Frigidaire Door Closer Ramp
28297416301 Frigidaire Refrigerator Hinge
28A297438300 Frigidaire Refrigerator Pin
295304510363 Frigidaire Refrigerator Hose-Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
35216273000 Frigidaire Refrigerator Strap
37297273904 Frigidaire Refrigerator Corner Cabinet Trim
38297283803 Frigidaire Freezer Upper Door Hinge
41240578902 Frigidaire Screw Mounting Hinge
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
72297387806 Frigidaire Refrigerator Toe Grill with Signal Light
735304495394 Frigidaire Refrigerator Light Signal
93B216036601 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
1525304511026 Frigidaire Refrigerator Freezer Hinge Bearing
170297280400 Frigidaire Refrigerator Valve
