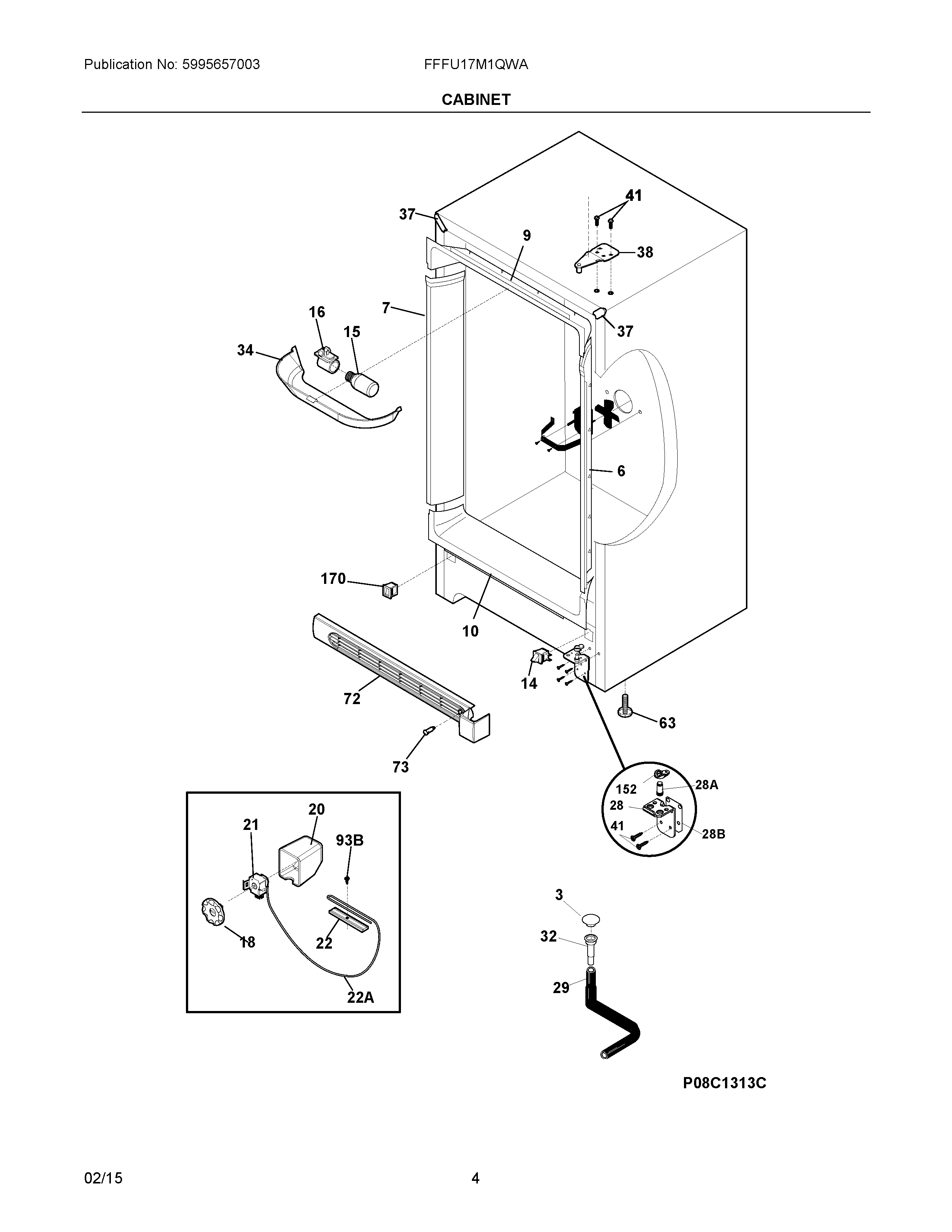

FFFU17M1QWA 03 – CABINET

FFFU17M1QWA 03 – CABINET

Written by

in

FFFU17M1QWA 03 – CABINET

Products

PositionProduct
NI297010201 Frigidaire Service Data Sheet
NIWCI 5304495534
NIWCI 09948773
NIBBracket,RH leg levelor
NIABracket,LH leg levelor
NI297001704 Frigidaire Refrigerator Insulation
NI216337701 Frigidaire Refrigerator Screw
3PLUG-DRAIN,EXTERIOR
6297435601 Frigidaire Breaker
7297435600 Frigidaire Refrigerator Breaker
9297403901 Frigidaire Refrigerator Breaker
10297403902 Frigidaire Refrigerator Breaker
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
20COVER-CONTROL HOUSING
215304514707 Frigidaire Refrigerator Control
22CLAMP, CAP TUBE, COLD CONTROL
26297415900 Frigidaire Door Closer Ramp
28297416301 Frigidaire Refrigerator Hinge
28A297438300 Frigidaire Refrigerator Pin
28B5304497244 Frigidaire Refrigerator Shim
295304510363 Frigidaire Refrigerator Hose-Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
37297273904 Frigidaire Refrigerator Corner Cabinet Trim
38297283803 Frigidaire Freezer Upper Door Hinge
41240578902 Frigidaire Screw Mounting Hinge
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72297387930 Frigidaire Refrigerator Kickplate Grille
735304495394 Frigidaire Refrigerator Light Signal
93B216036601 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
93A241853202 Frigidaire Refrigerator Screw
1525304511026 Frigidaire Refrigerator Freezer Hinge Bearing
170297280400 Frigidaire Refrigerator Valve
