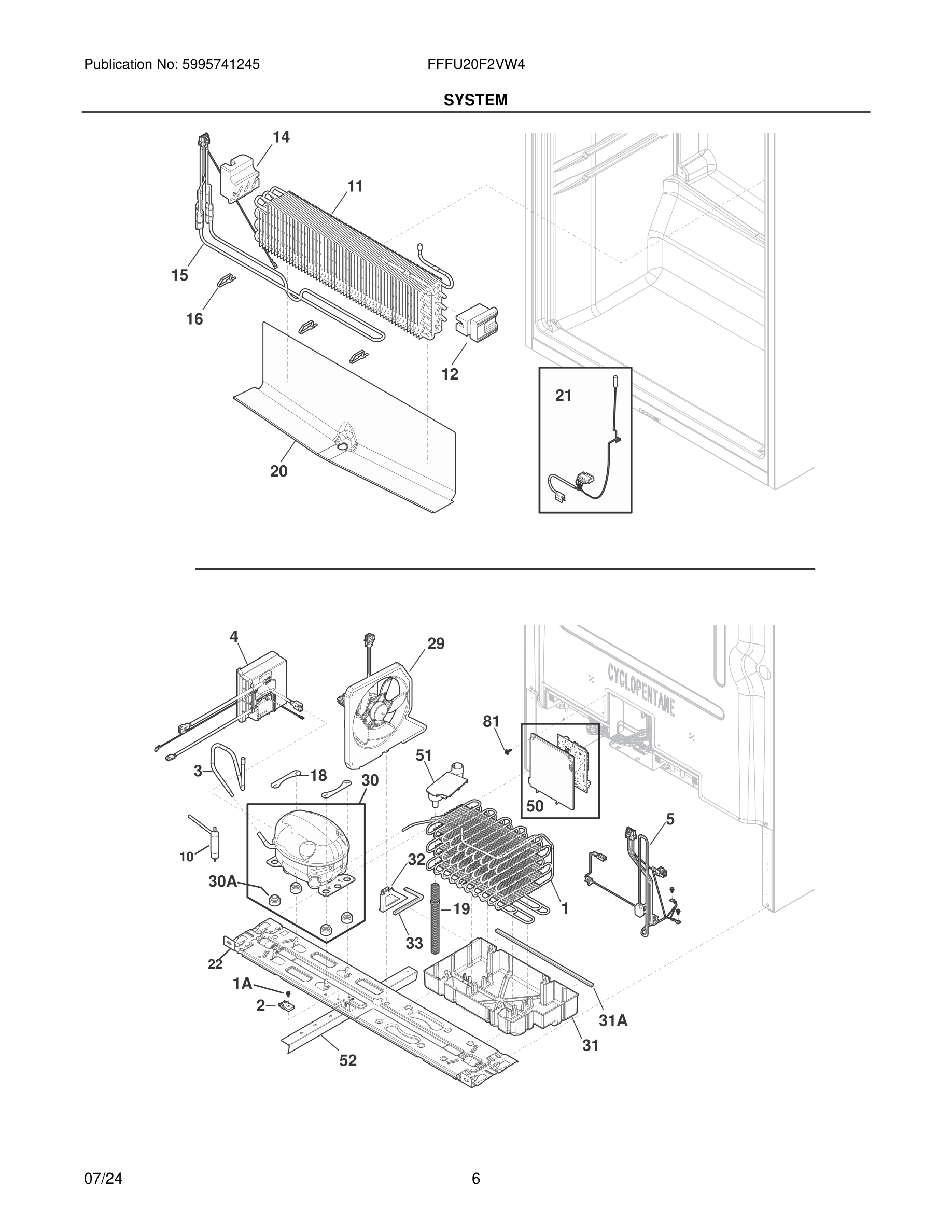

FFFU20F2VW4 07 – SYSTEM

Products

Position	Product
*	5304523801 Frigidaire Screw Assembly
*	241500305 Frigidaire Refrigerator Screw
*	240569202 Frigidaire Refrigerator Screw
1#	5304533258 Frigidaire Condenser
1A	240433204 Frigidaire Refrigerator Screw
2	5304456288 Frigidaire Refrigerator Clamp
3#	5304519693 Frigidaire Tube
4#	5304531506 Frigidaire Refrigerator Inverter
5#	5304532290 Frigidaire Harness
11	5304523830 Frigidaire Refrigerator Evaporator
12	5304523831 Frigidaire Support Refrigerator
14	5304523832 Frigidaire Support
15	5304523833 Frigidaire Refrigerator Heater
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
18	5304524607 Frigidaire Clamp
19	5304525042 Frigidaire Refrigerator Drain Tube
20	5304523720 Frigidaire Refrigerator Trough
21#	5304523788 Frigidaire Defrost Thermostat
29#	5304519734 Frigidaire Refrigerator Fan Assembly
30#	5304530136 Frigidaire Refrigerator Compressor
30A	GROMMET, CMPRSR MTG, 23
31A	5304519744 Frigidaire Refrigerator Tape
31	5304523709 Frigidaire Refrigerator Pan
32	5304519745 Frigidaire Refrigerator Baffle
33	5304519751 Frigidaire Refrigerator Seal
50#	5304533259 Frigidaire Refrigerator Board Assembly
51	5304530111 Frigidaire Refrigerator Drain Jumper
52	BAFFLE, DIVIDER
81	5304519765 Frigidaire Refrigerator Screw
