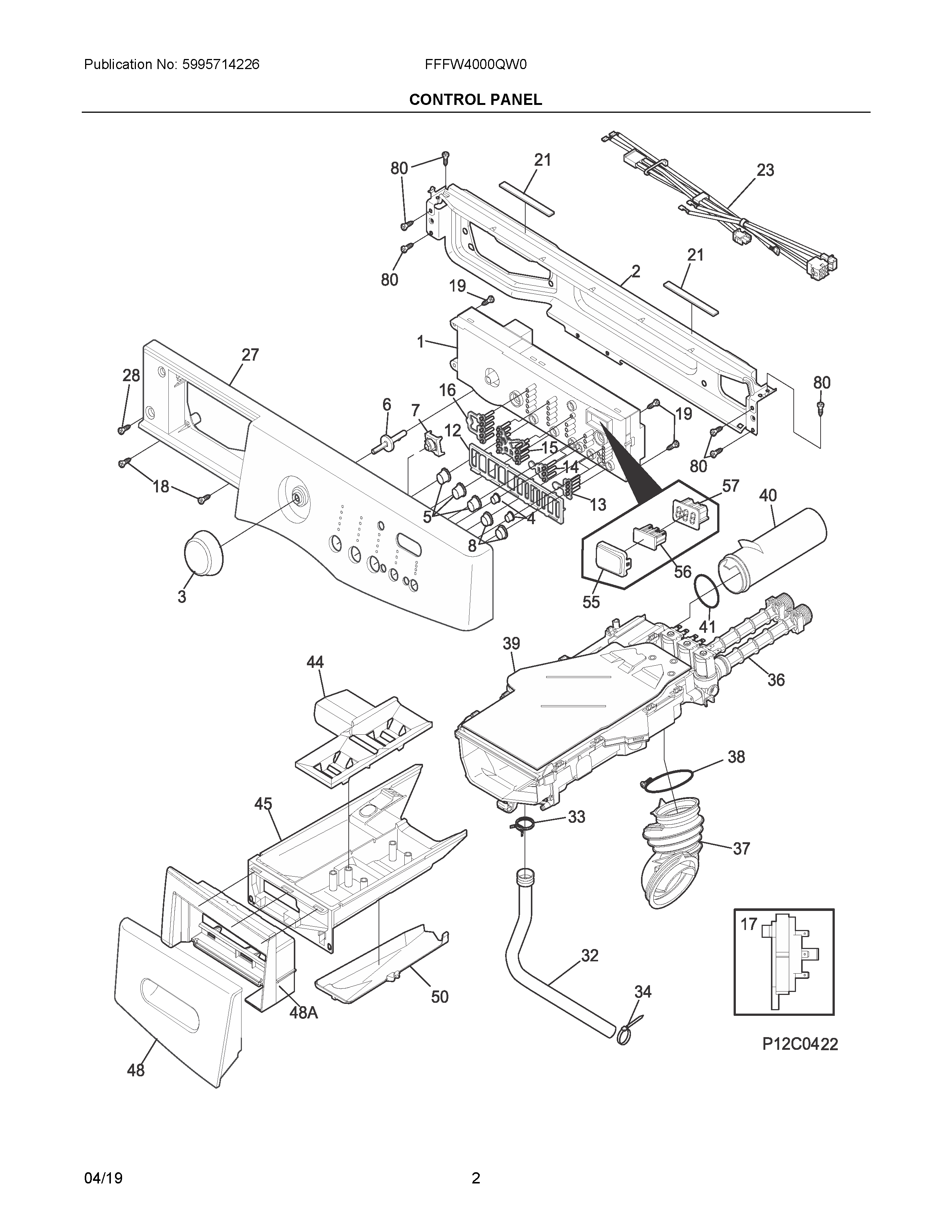

FFFW4000QW0 02 – CONTROL PANEL

Products

Position	Product
NIA	134178901 Frigidaire Screw
NIA	WCI 134547600
NIA	134371300 DISPENSER TO VALVE GASKET
1	137006085 Frigidaire Washer Control Board
2	134887400 Frigidaire Bracket
3	KNOB, CONTROL, WHITE
4	PUSH BUTTON, ROUND #1
5	PUSH BUTTON, ROUND #3
6	WCI 134347700
7	Push Button,round ,No.2
8	PUSH BUTTON, ROUND #4
12	WCI 137320500
13	WCI 134557500
14	WCI 134557400
15	WCI 134552800
16	WCI 134600000
17	134762000 Frigidaire Pressure Switch
18	131302800 Frigidaire Drum Vane Screw
19	134402900 Frigidaire Screw
21	134407900 Frigidaire Dampener
23	WIRE HARNESS, MAIN
27	Panel,control console
28	131205300 Frigidaire Screw
32	WCI 134586500
33	134737300 Frigidaire Clamp
34	5304464772 Frigidaire Refrigerator Wire Tie
36	134371220 Frigidaire Dispenser Fill Valve
37	134372300 Frigidaire Hose
38	134372400 Frigidaire Clamp
40	WCI 134372100
41	134372200 Frigidaire O-Ring
44	134370200 Frigidaire Washer Dispenser Drawer Cover
45	134370000 Frigidaire Washer Detergent Dispenser Drawer
48A	137314510 Frigidaire Drawer Handle Frame Dispenser
48	WCI 137314410
50	134409320 Frigidaire Dispenser Assembly
55	WCI 137320700
56	WCI 134557300
57	WCI 134503300
80	131168200 Frigidaire Dryer Screw
