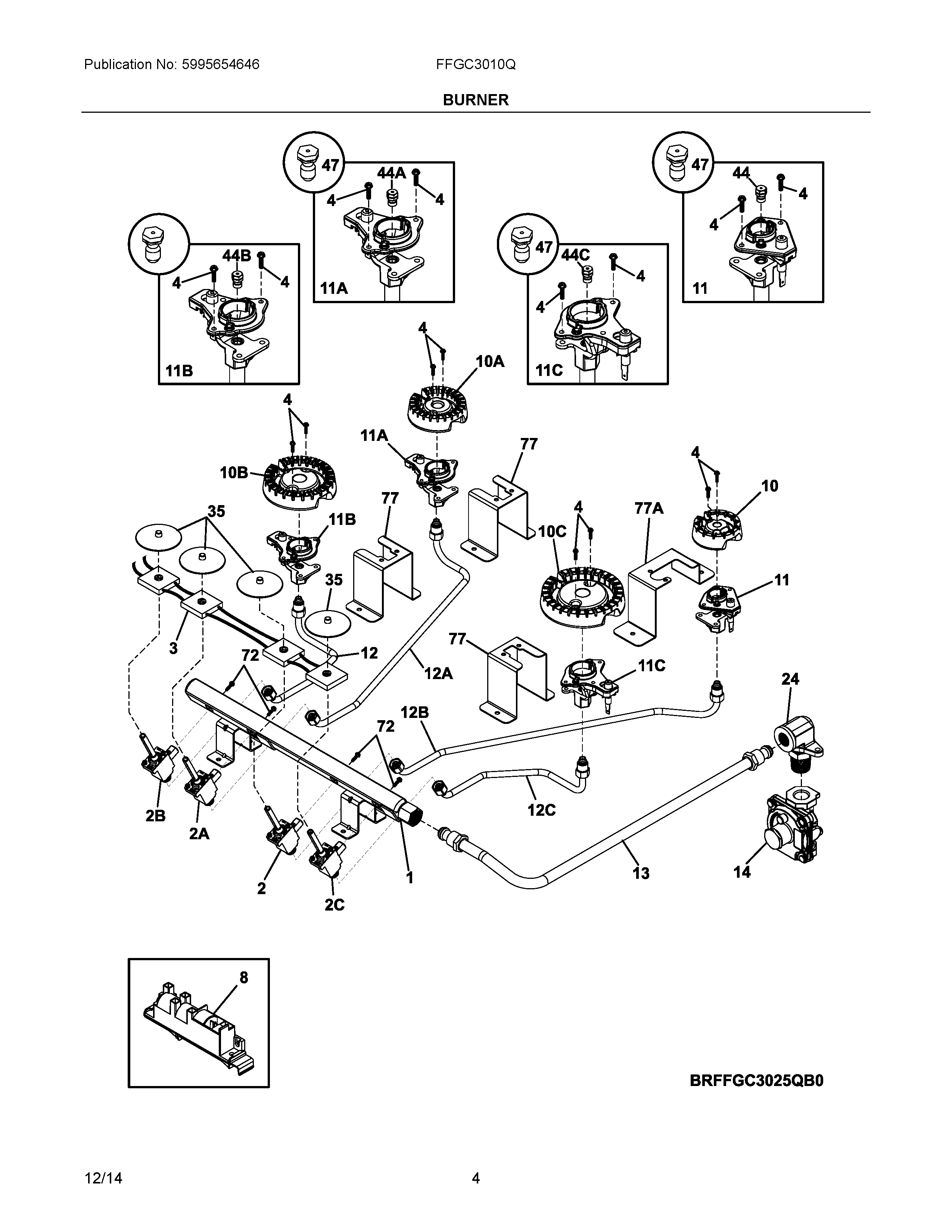

FFGC3010QBA 03 – BURNER

FFGC3010QBA 03 – BURNER

Written by

in

FFGC3010QBA 03 – BURNER

Products

PositionProduct
NI305338602 Frigidaire Screw
NI305309701 Frigidaire Oven Screw
NIAWCI 318199779
1WCI 5304498785
2B316536001 Frigidaire Oven Valve
2A316536000 Frigidaire Top Burner Valve
2C316560902 Frigidaire Oven Valve
2WCI 316536009
35304527982 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
85304505695 Frigidaire Oven Module
10B316438600 Frigidaire Range Sealed Burner, 14K
10316438200 Frigidaire Range Sealed Burner, 5K
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
12A5304521182 Frigidaire Tube
12B5304521183 Frigidaire Tube
125304532994 Frigidaire Tube
12C5304531763 Frigidaire Tube
13WCI 5304498793
145304519943 Frigidaire Regulator
24318054010 Frigidaire Oven Elbow
35807164301 Frigidaire Oven Bushing
445304498786 Frigidaire Igniter/Orifice Assembly
44A5304498787 Frigidaire Igniter Assembly/Orifice
44B5304498788 Frigidaire Igniter/Orifice Assembly
44C5304498815 Frigidaire Assembly Igniter/Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
72316215600 Frigidaire Oven Screw
77A5304523447 Frigidaire Bracket
775304498799 Frigidaire Bracket
