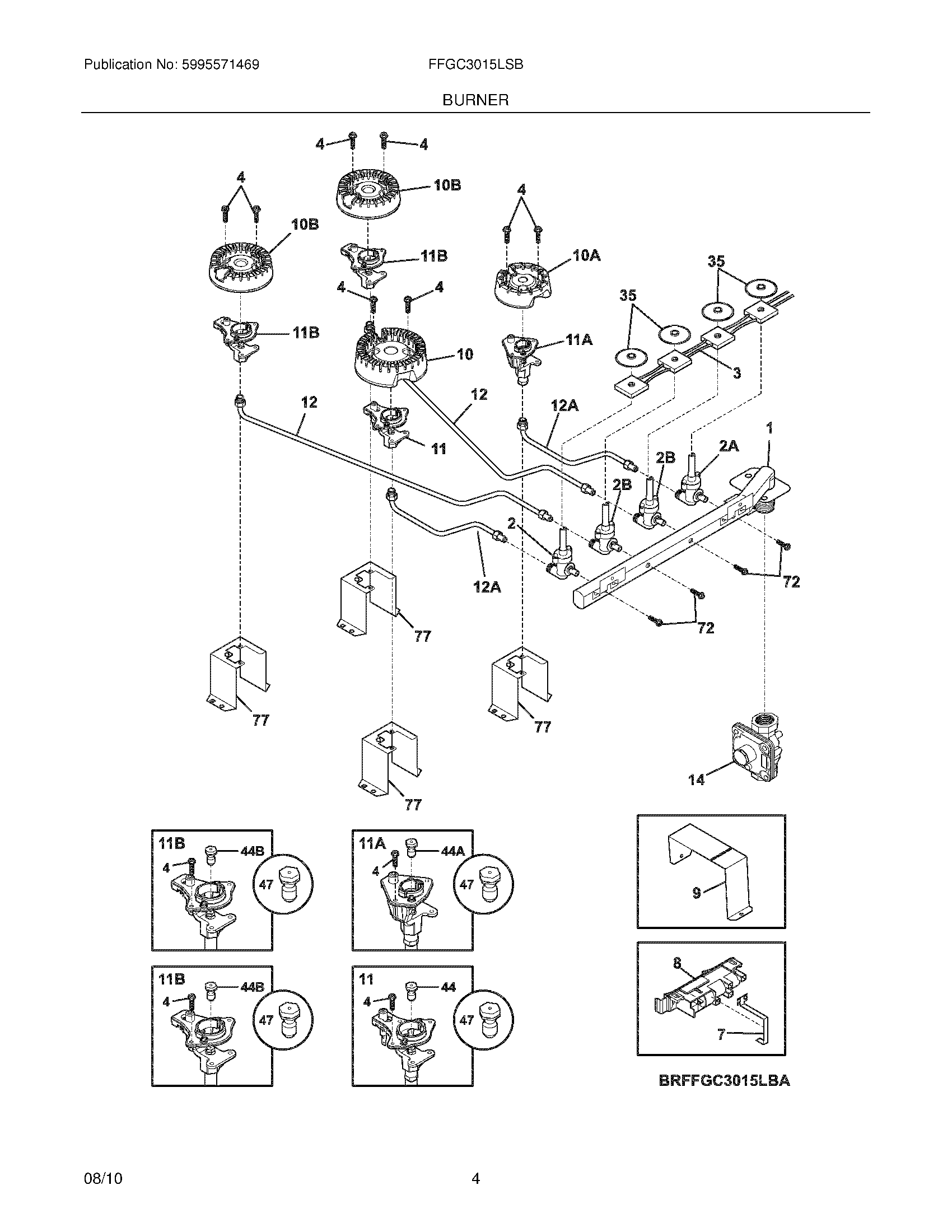

FFGC3015LSB 05 – BURNER

FFGC3015LSB 05 – BURNER

Written by

in

FFGC3015LSB 05 – BURNER

Products

PositionProduct
NI5303323137 Frigidaire Oven Screw
NI5303323130 Frigidaire Oven Screw
NI5303323140 Frigidaire Oven Screw
NI5304424462 Frigidaire Foam Tape
NI5303311174 Frigidaire Oven Screw
NIWCI 318199779
NI5304480396 Frigidaire Screw
1WCI 318177020
2A318233900 Frigidaire Oven Valve
2WCI 318233920
2BWCI 318233910
3318232645 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
7WCI 318024201
85304505695 Frigidaire Oven Module
9WCI 318406303
10316438000 Frigidaire Sealed Burner 12K Assembly
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
11B316540700 Frigidaire Igniter/Orifice Assembly
11316540702 Frigidaire Igniter/Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
12WCI 318560700
12AWCI 318560702
14WCI 318122712
35WCI 318146301
44B316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
44316527502 Frigidaire Oven Orifice
47WCI 318565407
72316215600 Frigidaire Oven Screw
77WCI 318192620
