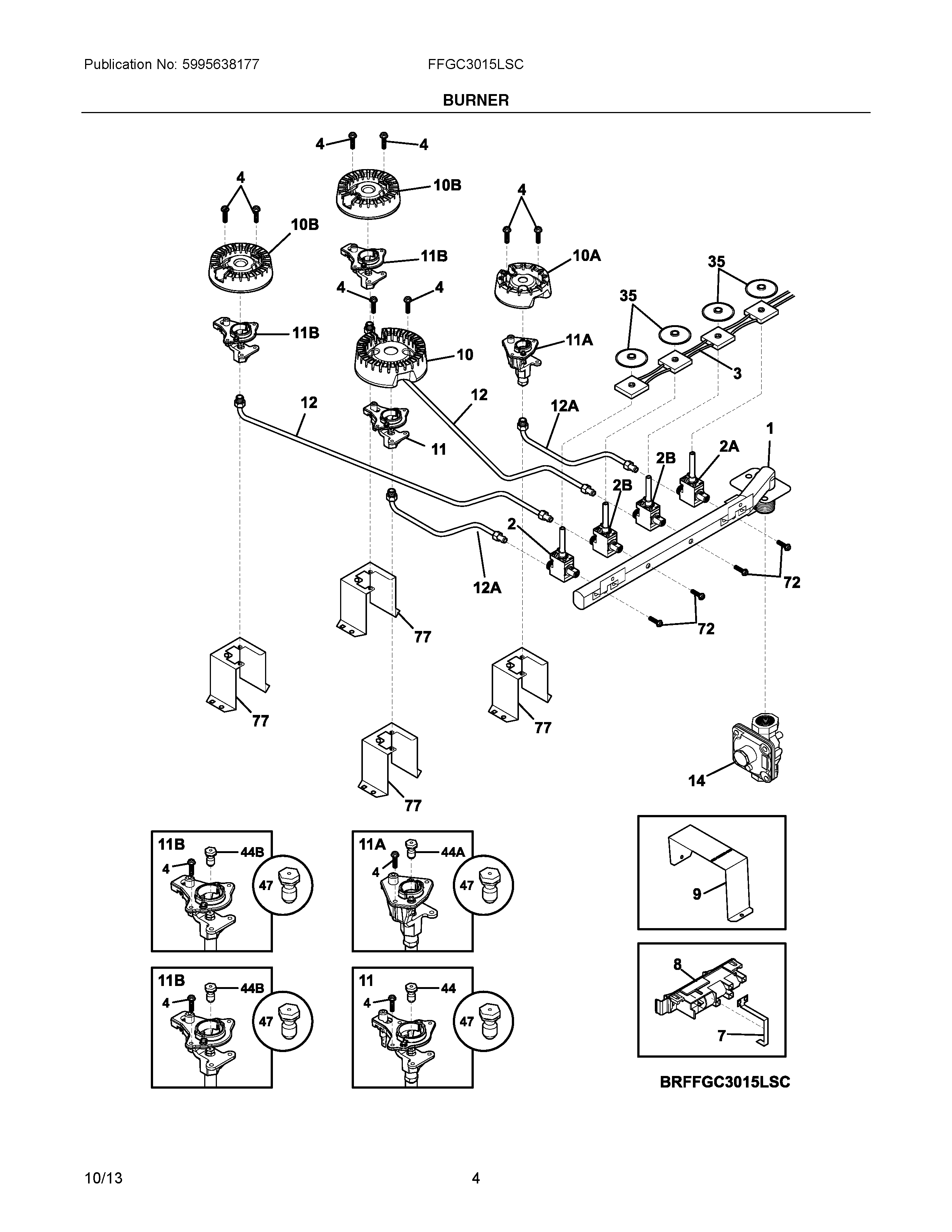

FFGC3015LSC 03 – BURNER

Products

Position	Product
NI	5304424462 Frigidaire Foam Tape
NI	5304480396 Frigidaire Screw
NI	5303323140 Frigidaire Oven Screw
NI	5303311174 Frigidaire Oven Screw
NI	WCI 318199779
NIA	5303323137 Frigidaire Oven Screw
1	WCI 318177020
2B	316271301 Frigidaire Oven Valve
2	316271302 Frigidaire Oven Valve
2A	WCI 316271300
3	WCI 807211201
4	316240600 Frigidaire Igniter Mounting Screw
7	WCI 318024201
8	5304505695 Frigidaire Oven Module
9	WCI 318406303
10	316438000 Frigidaire Sealed Burner 12K Assembly
10B	316558300 Frigidaire Oven 9.5L Sealed Burner
10A	316438200 Frigidaire Range Sealed Burner, 5K
11	316540702 Frigidaire Igniter/Orifice Assembly
11A	316540800 Frigidaire Igniter/Orifice Assembly
11B	316540700 Frigidaire Igniter/Orifice Assembly
12	WCI 318560700
12A	WCI 318560702
14	WCI 318122712
35	807164301 Frigidaire Oven Bushing
44	316527502 Frigidaire Oven Orifice
44B	316527500 Frigidaire Oven Burner Orifice
44A	316527504 Frigidaire Oven Orifice
47	WCI 318565407
72	316215600 Frigidaire Oven Screw
77	WCI 318192622
