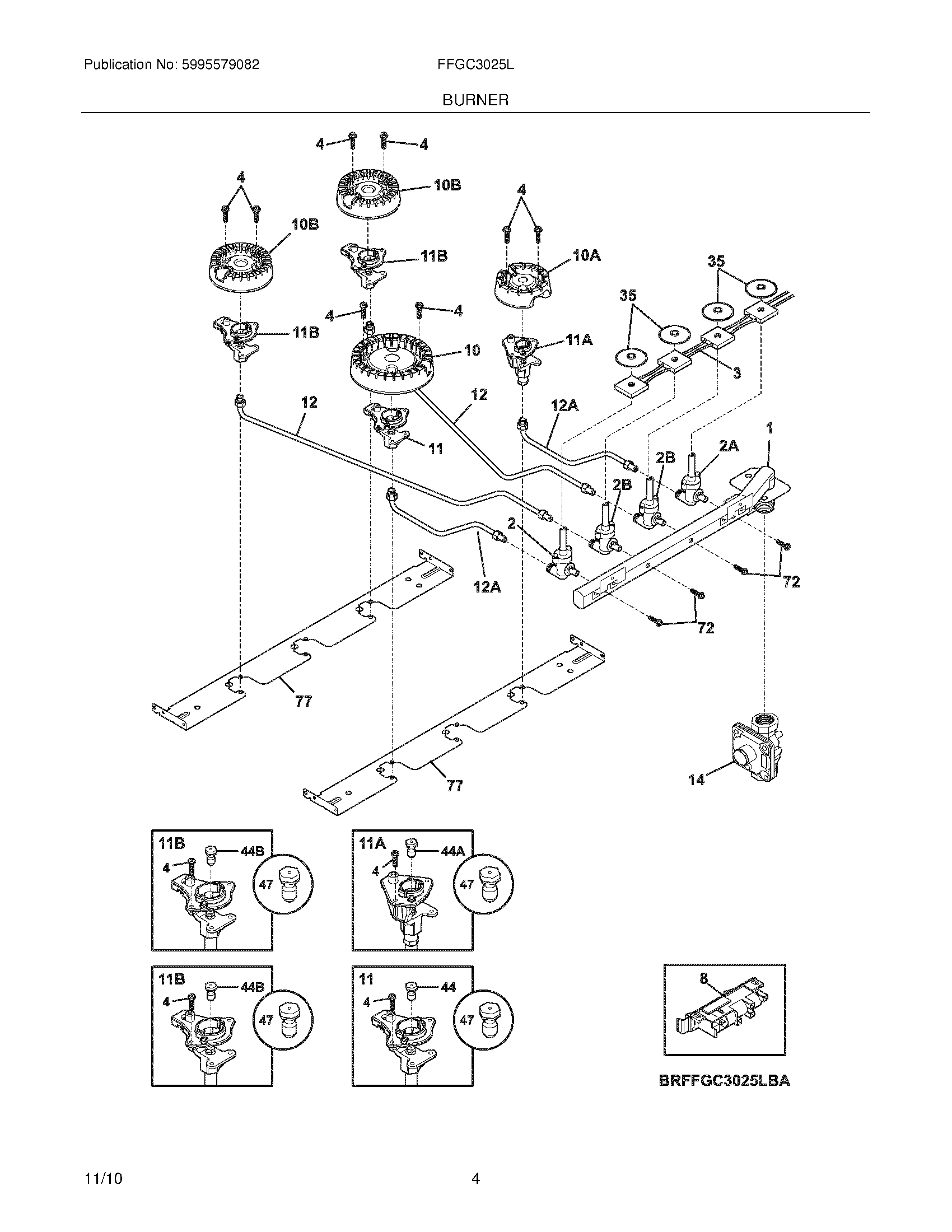

FFGC3025LBB 05 – BURNER

FFGC3025LBB 05 – BURNER

Written by

in

FFGC3025LBB 05 – BURNER

Products

PositionProduct
NI5303323137 Frigidaire Oven Screw
NI5303323140 Frigidaire Oven Screw
NI5303311174 Frigidaire Oven Screw
NIWCI 318024210
NIWCI 318199779
NIWCI 318024201
NI5304480396 Frigidaire Screw
1WCI 318177020
2WCI 318233930
2A318233900 Frigidaire Oven Valve
2BWCI 318233910
3318232645 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
85304505695 Frigidaire Oven Module
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438600 Frigidaire Range Sealed Burner, 14K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
11B316540700 Frigidaire Igniter/Orifice Assembly
11316543206 Frigidaire Igniter Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
12AWCI 318560702
12TUBE, BURNER, LF & LR, (2)
14WCI 318122712
35WCI 318146301
44316527513 Frigidaire Oven Orifice
44A316527504 Frigidaire Oven Orifice
44B316527500 Frigidaire Oven Burner Orifice
47WCI 318565407
72316215600 Frigidaire Oven Screw
77WCI 318564100
