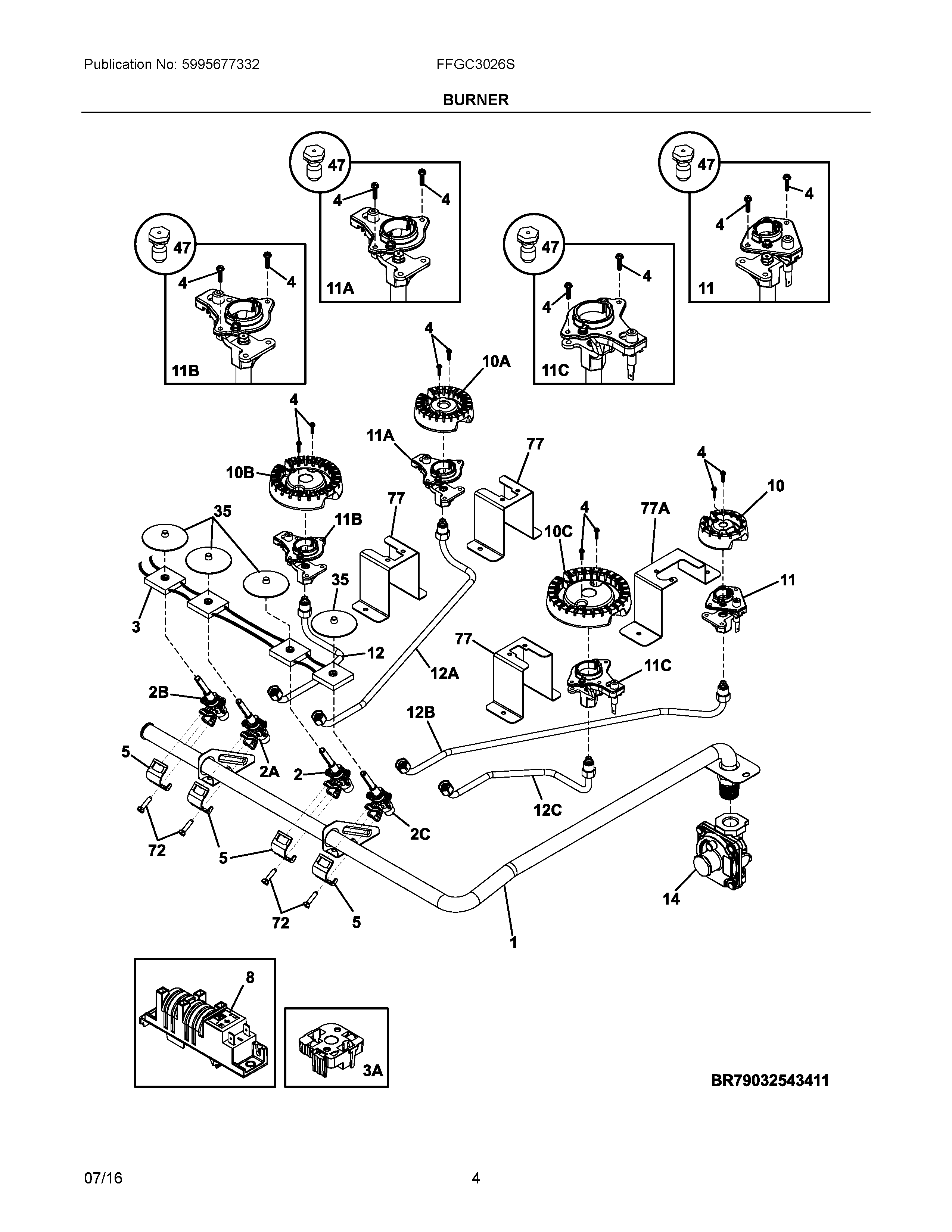

FFGC3026SSB 03 – BURNER

FFGC3026SSB 03 – BURNER

Written by

in

FFGC3026SSB 03 – BURNER

Products

PositionProduct
NI305338602 Frigidaire Screw
NI305309701 Frigidaire Oven Screw
NIAWCI 318199779
1WCI 5304505688
2C5304505692 Frigidaire Oven Valve
25304505693 Frigidaire Oven Surface Burner Valve
2A5304505690 Frigidaire Oven Valve
2B5304505691 Frigidaire Oven Valve
35304527982 Frigidaire Switch Assembly
3A5304505694 Frigidaire Oven Adapter
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
85304505695 Frigidaire Oven Module
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
11C5304498815 Frigidaire Assembly Igniter/Orifice
11B5304498788 Frigidaire Igniter/Orifice Assembly
11A5304498787 Frigidaire Igniter Assembly/Orifice
115304498786 Frigidaire Igniter/Orifice Assembly
12A5304521182 Frigidaire Tube
12B5304521183 Frigidaire Tube
125304532994 Frigidaire Tube
12C5304531763 Frigidaire Tube
145304519943 Frigidaire Regulator
35807164301 Frigidaire Oven Bushing
47GRLP4 Frigidaire Oven LP Conversion Kit
72305517500 Frigidaire Screw
775304498799 Frigidaire Bracket
77A5304523447 Frigidaire Bracket
