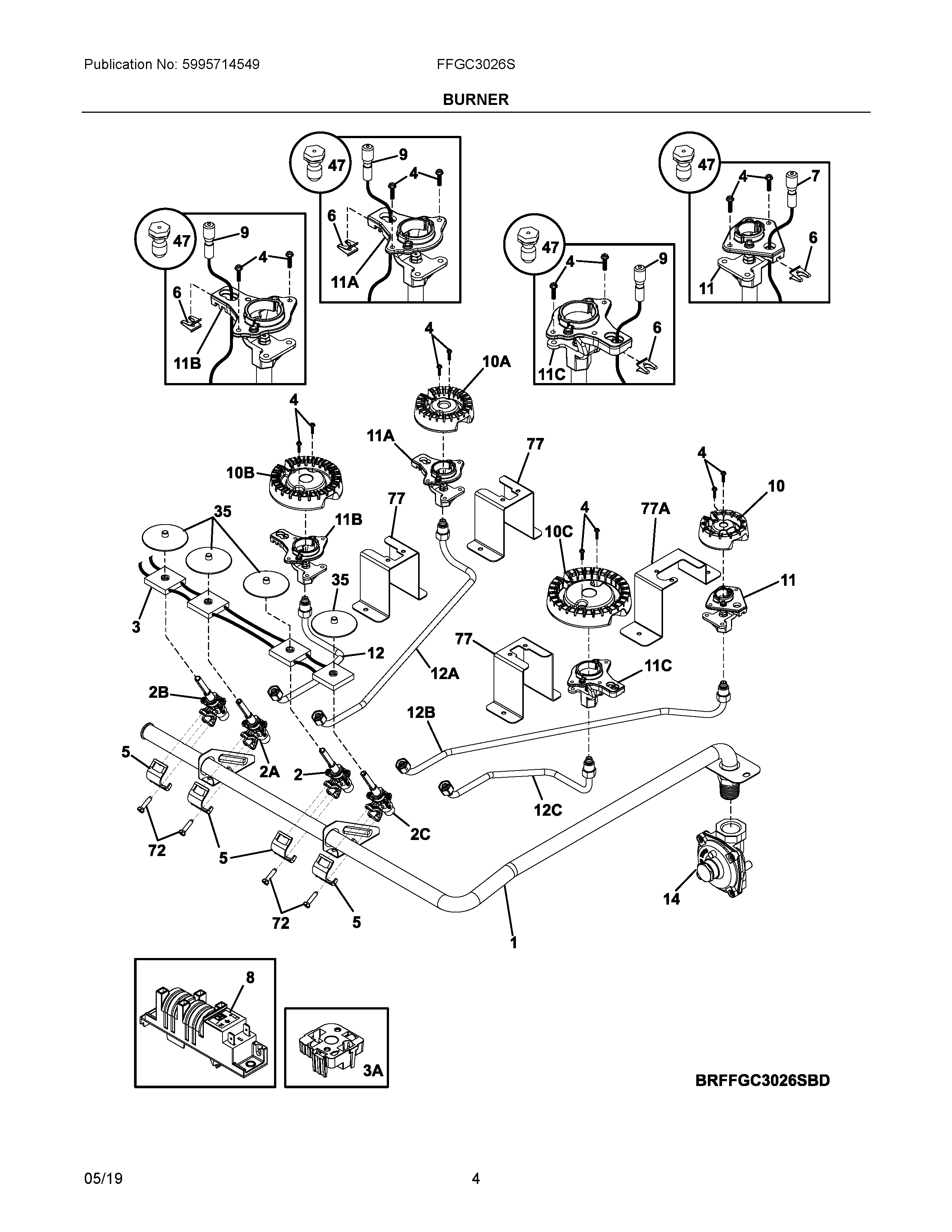

FFGC3026SWE 03 – BURNER

FFGC3026SWE 03 – BURNER

Written by

in

FFGC3026SWE 03 – BURNER

Products

PositionProduct
NIACA
NI305338602 Frigidaire Screw
NI305309701 Frigidaire Oven Screw
1MANIFOLD PIPE
2A5304505690 Frigidaire Oven Valve
2B5304505691 Frigidaire Oven Valve
2C5304505692 Frigidaire Oven Valve
25304505693 Frigidaire Oven Surface Burner Valve
3A5304505694 Frigidaire Oven Adapter
35304527982 Frigidaire Switch Assembly
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
6SPRING CLIP IGNITOR
75304516453 Frigidaire Igniter
85304505695 Frigidaire Oven Module
95304516454 Frigidaire Igniter
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
11C5304516452 Frigidaire Oven Holder
11B5304516451 Frigidaire Oven Holder
11A5304516450 Frigidaire Oven Holder
115304516449 Frigidaire Oven Holder
12A5304521182 Frigidaire Tube
12B5304521183 Frigidaire Tube
125304532994 Frigidaire Tube
12C5304531763 Frigidaire Tube
145304519943 Frigidaire Regulator
35807164301 Frigidaire Oven Bushing
47GRLP4 Frigidaire Oven LP Conversion Kit
72305517500 Frigidaire Screw
775304498799 Frigidaire Bracket
77A5304523447 Frigidaire Bracket
