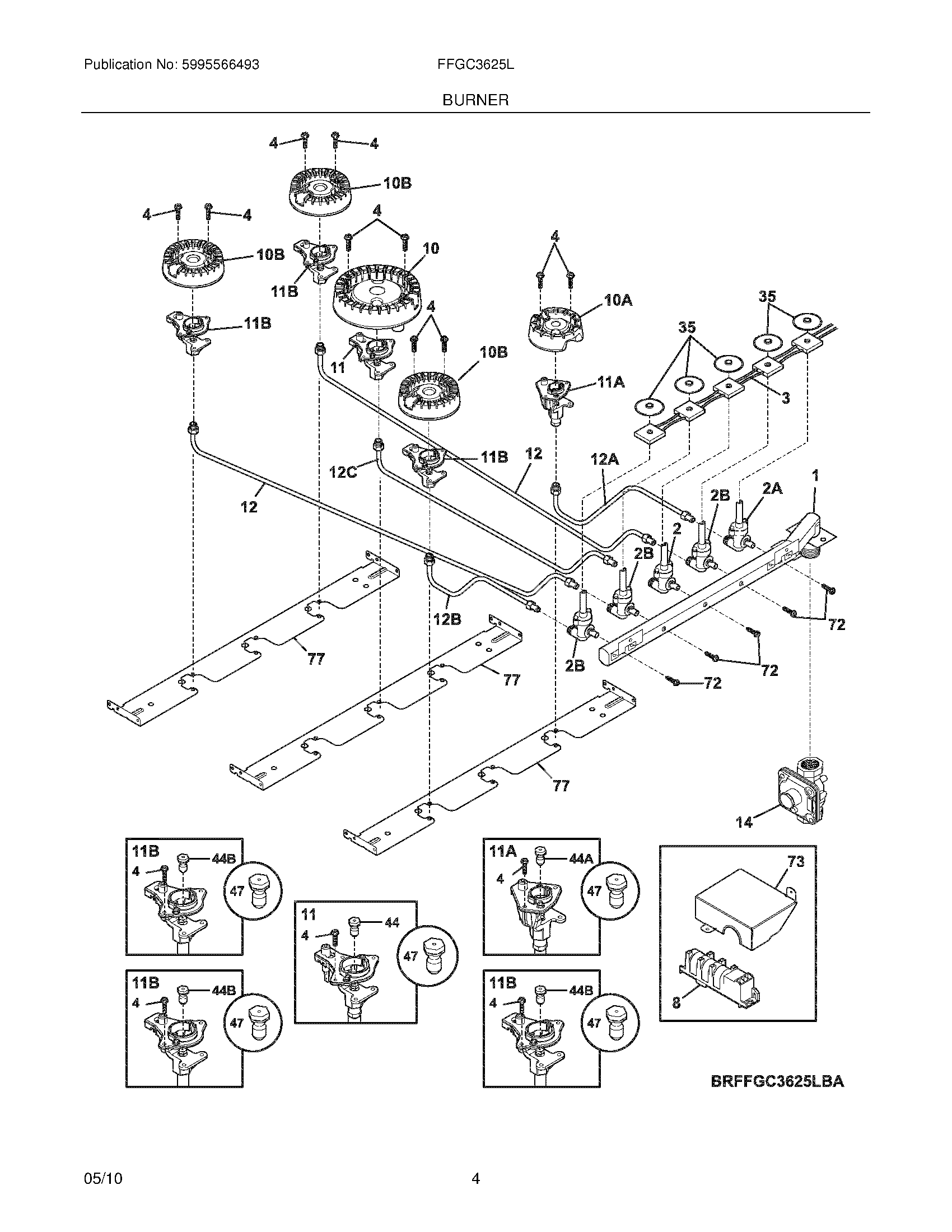

FFGC3625LBA 05 – BURNER

FFGC3625LBA 05 – BURNER

Written by

in

FFGC3625LBA 05 – BURNER

Products

PositionProduct
NI5303323140 Frigidaire Oven Screw
NIWCI 318199780
NI5303323137 Frigidaire Oven Screw
NI5300803416 Frigidaire Dishwasher Screw
NI5303307980 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NI5303311174 Frigidaire Oven Screw
1WCI 318177016
2WCI 318233930
2BWCI 318233910
2A318233900 Frigidaire Oven Valve
3318232621 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
8SPARK MODULE
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10316438600 Frigidaire Range Sealed Burner, 14K
10A316438200 Frigidaire Range Sealed Burner, 5K
11B316540700 Frigidaire Igniter/Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
11316543206 Frigidaire Igniter Orifice Assembly
12BWCI 318560713
12AWCI 318560712
12CWCI 318560714
12WCI 318560710
14WCI 318122717
35WCI 318146301
44316527513 Frigidaire Oven Orifice
44B316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
47WCI 318565408
72316215600 Frigidaire Oven Screw
73WCI 318024209
77WCI 318564100
