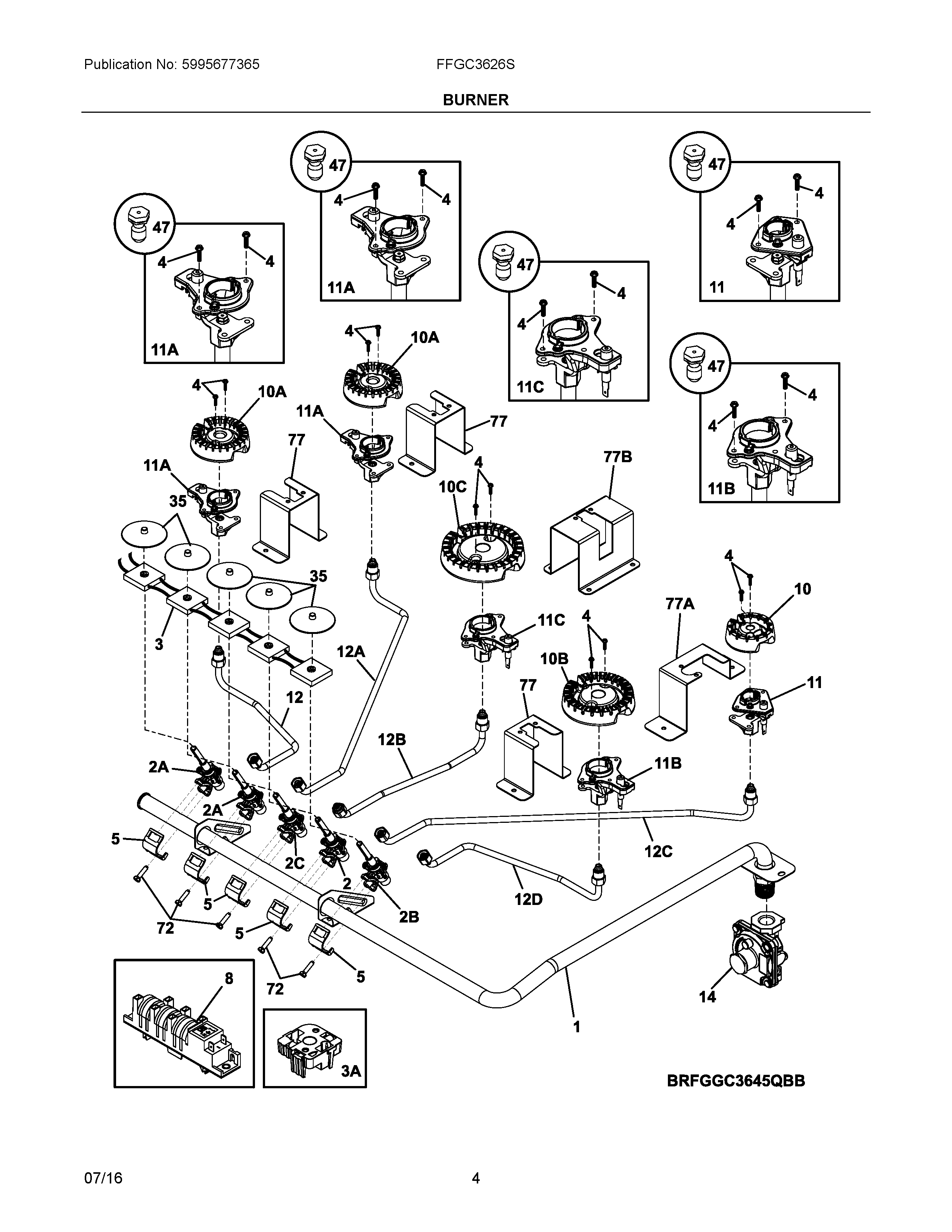

FFGC3626SBB 03 – BURNER

FFGC3626SBB 03 – BURNER

Written by

in

FFGC3626SBB 03 – BURNER

Products

PositionProduct
NI305309701 Frigidaire Oven Screw
NIAWCI 318199780
NI305338602 Frigidaire Screw
15304505689 Frigidaire Manifold
2A5304505690 Frigidaire Oven Valve
2B5304505691 Frigidaire Oven Valve
2C5304505692 Frigidaire Oven Valve
25304505693 Frigidaire Oven Surface Burner Valve
3A5304505694 Frigidaire Oven Adapter
3305595107 Frigidaire Assembly Switch
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
8SPARK MODULE
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
115304498786 Frigidaire Igniter/Orifice Assembly
11A5304498787 Frigidaire Igniter Assembly/Orifice
11B5304498788 Frigidaire Igniter/Orifice Assembly
11C5304498815 Frigidaire Assembly Igniter/Orifice
12D5304532994 Frigidaire Tube
12B5304529984 Frigidaire Tube
125304520943 Frigidaire Tube
12A5304520942 Frigidaire Tube
12C5304520940 Frigidaire Tube
145304519943 Frigidaire Regulator
35807164301 Frigidaire Oven Bushing
47WCI 5304504841
72305517500 Frigidaire Screw
775304498799 Frigidaire Bracket
77A5304523447 Frigidaire Bracket
77B5304498888 Frigidaire Bracket
