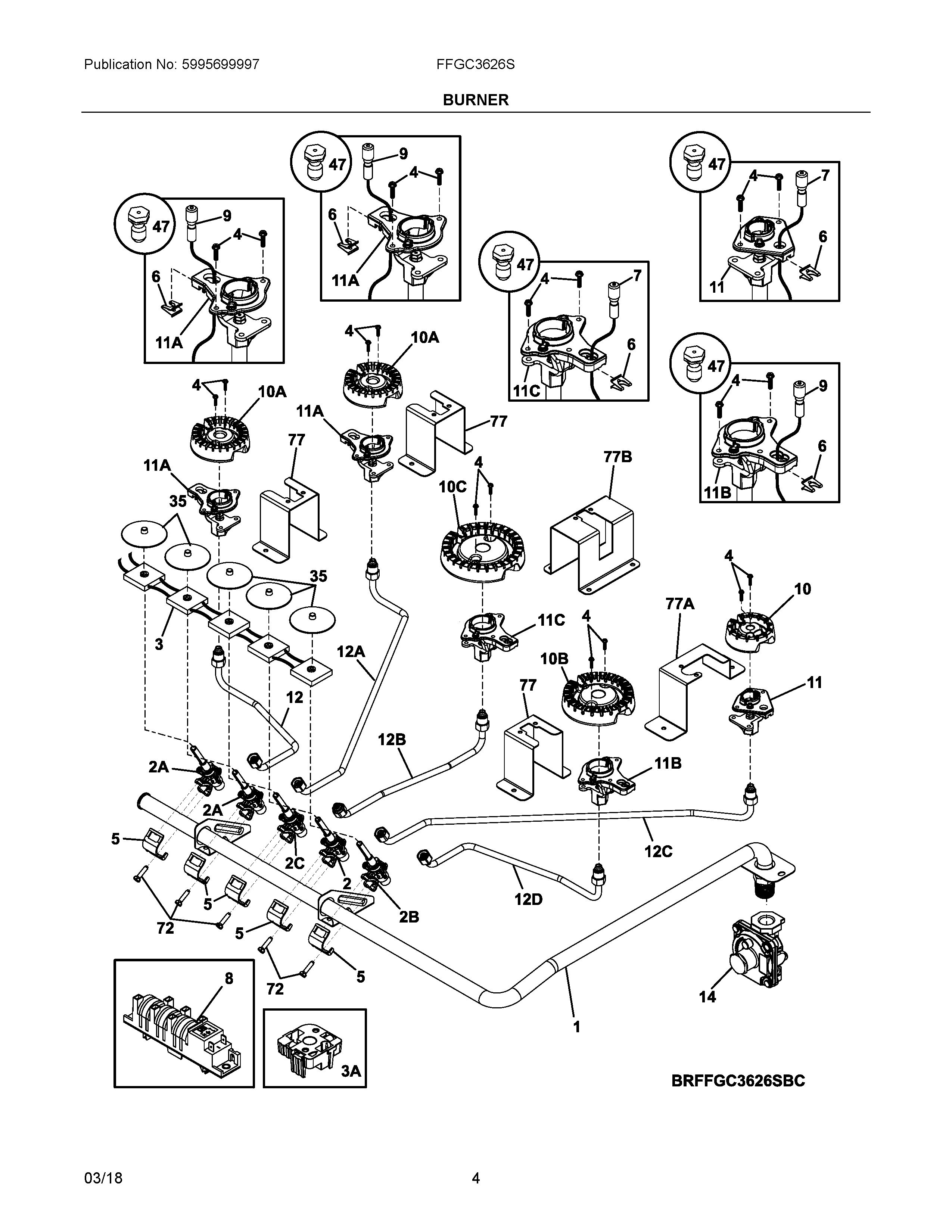

FFGC3626SBC 03 – BURNER

FFGC3626SBC 03 – BURNER

Written by

in

FFGC3626SBC 03 – BURNER

Products

PositionProduct
NIA5304516456 Frigidaire Wire
NI305338602 Frigidaire Screw
NI305309701 Frigidaire Oven Screw
15304505689 Frigidaire Manifold
25304505693 Frigidaire Oven Surface Burner Valve
2B5304505691 Frigidaire Oven Valve
2C5304505692 Frigidaire Oven Valve
2A5304505690 Frigidaire Oven Valve
3305595107 Frigidaire Assembly Switch
3A5304505694 Frigidaire Oven Adapter
4316240600 Frigidaire Igniter Mounting Screw
5357733402 Frigidaire Oven Bracket
6SPRING CLIP IGNITOR
75304516453 Frigidaire Igniter
8SPARK MODULE
95304516454 Frigidaire Igniter
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
11A5304516450 Frigidaire Oven Holder
115304516449 Frigidaire Oven Holder
11B5304516451 Frigidaire Oven Holder
11C5304516452 Frigidaire Oven Holder
12D5304532994 Frigidaire Tube
12B5304529984 Frigidaire Tube
125304520943 Frigidaire Tube
12A5304520942 Frigidaire Tube
12C5304520940 Frigidaire Tube
145304519943 Frigidaire Regulator
35807164301 Frigidaire Oven Bushing
47WCI 5304504841
72305517500 Frigidaire Screw
775304498799 Frigidaire Bracket
77A5304523447 Frigidaire Bracket
77B5304498888 Frigidaire Bracket
