FFGC3626SBE 02 – COOK TOP

FFGC3626SBE 02 – COOK TOP

Written by

in

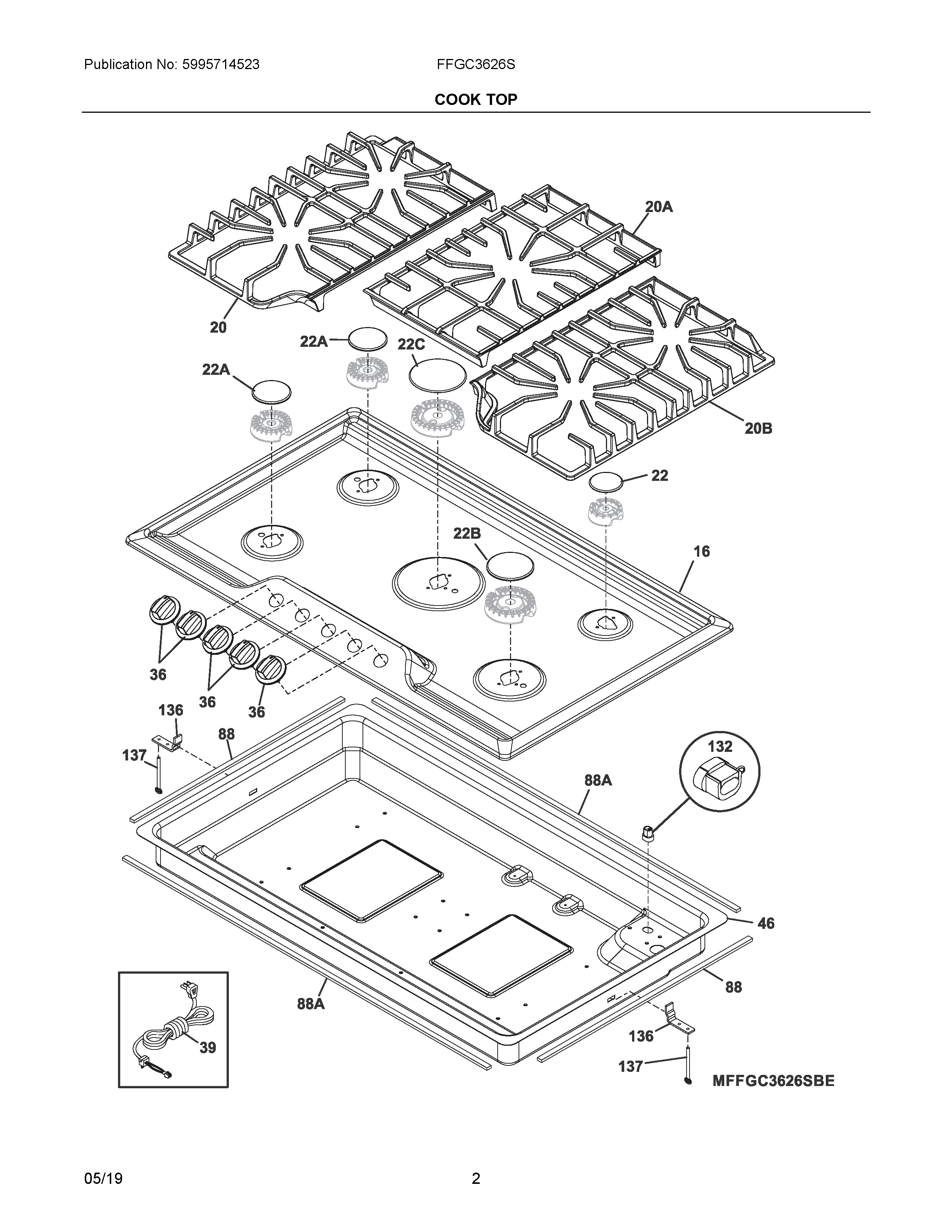

FFGC3626SBE 02 – COOK TOP

Products

PositionProduct
NI316240600 Frigidaire Igniter Mounting Screw
NIINSULATION, MAIN TOP
NIA305452800 Frigidaire Screw
NI305338601 Frigidaire Screw
16809218332 Frigidaire Oven Main Top
20B5304504843 Frigidaire Oven Grate
20A5304504844 Frigidaire Oven Grate
205304504845 Frigidaire Oven Grate
22C5304508468 Frigidaire Oven Cap
22CAP
22B5304508443 Frigidaire Oven Surface Burner Cap
22A5304508442 Frigidaire Oven Surface Burner Cap
365304504838 Frigidaire Oven Knob
39305574902 Frigidaire Power Cord
465304498877 Frigidaire Box Burner
88AGASKET, MAINTOP, FOAM TAPE, FRONT/REAR
88GASKET, MAINTOP, FOAM TAPE, SIDE
1325304513507 Frigidaire Bushing Assembly
136318264301 Frigidaire Oven Support
137305452400 Frigidaire Oven Screw
