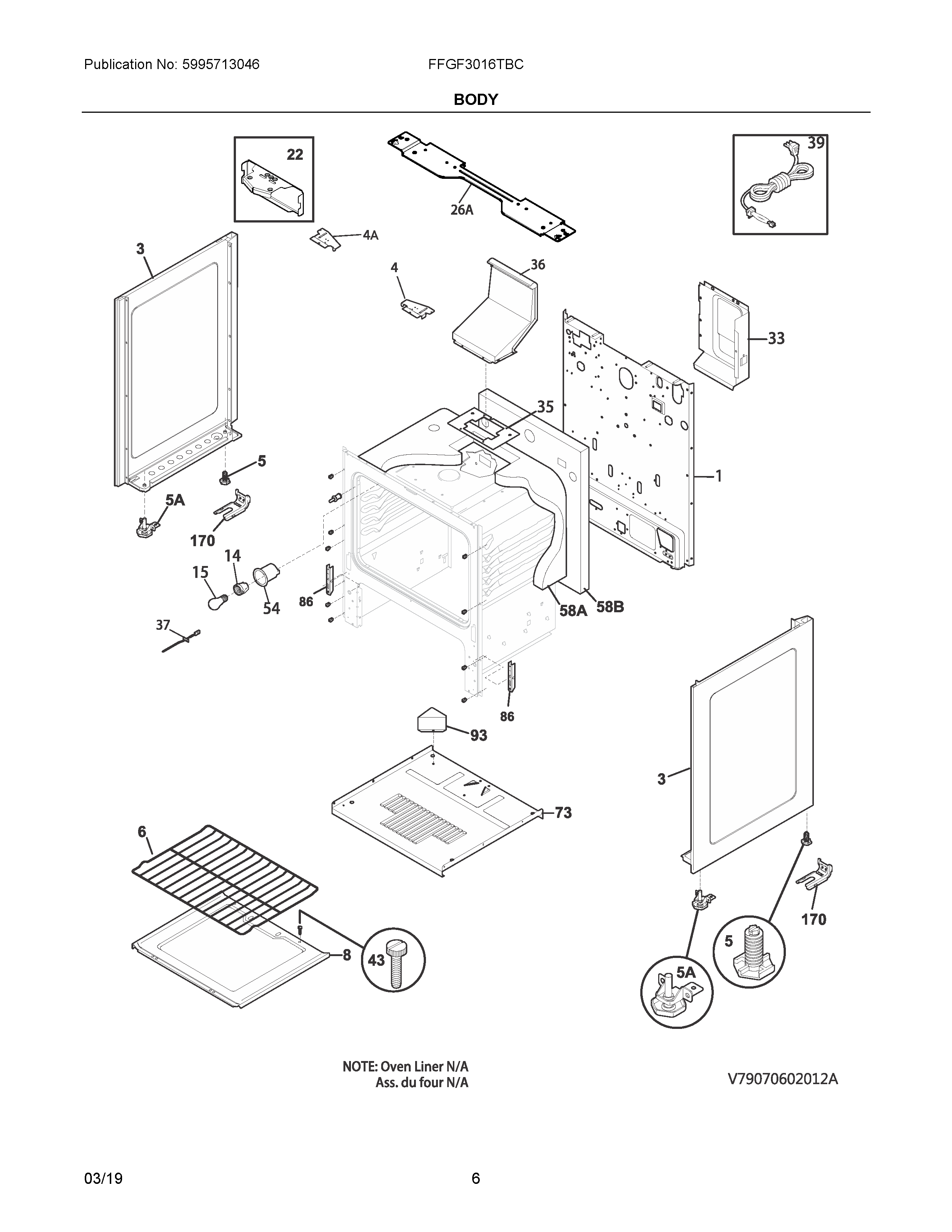

FFGF3016TBC 04 – BODY

Products

Position	Product
NI	5304503371 Frigidaire Oven Harness
NIA	316001017 Frigidaire Screw
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI	5304491650 Frigidaire Block
NI	316418901 Frigidaire Oven Screw
NIB	316116000 Frigidaire Screw
NI	316279600 Frigidaire Screw
NI	Screw,cup pt ,8-18 x 0.375 ,chrome
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NIA	316064600 Frigidaire Oven Support
1	WCI 316029419
3	316400144 Frigidaire Panel
3A	316400145 Frigidaire Panel Assembly
4	316605400 Frigidaire MAINTOP Bracket
4A	316605401 Frigidaire Bracket-MAINTOP
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
6	316067902 Frigidaire Oven Rack
8	WCI 316495901
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	316408000 Frigidaire Oven Clip Assembly
22	316286300 Frigidaire Bodyside Bracket
26A	316498200 Frigidaire Oven Bracket
33	WCI 316055600
35	316542102 Frigidaire Flue Gasket
36	FLUE
37	316233903 Frigidaire Range Oven Temperature Sensor
39	5304515659 Frigidaire Oven Power Cord
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
58B	316054202 Frigidaire Insulation
58A	INSULATION, OVEN WRAPPER
73	WCI 316109902
86	316441300 Frigidaire Receptacle
93	WCI 316110000
