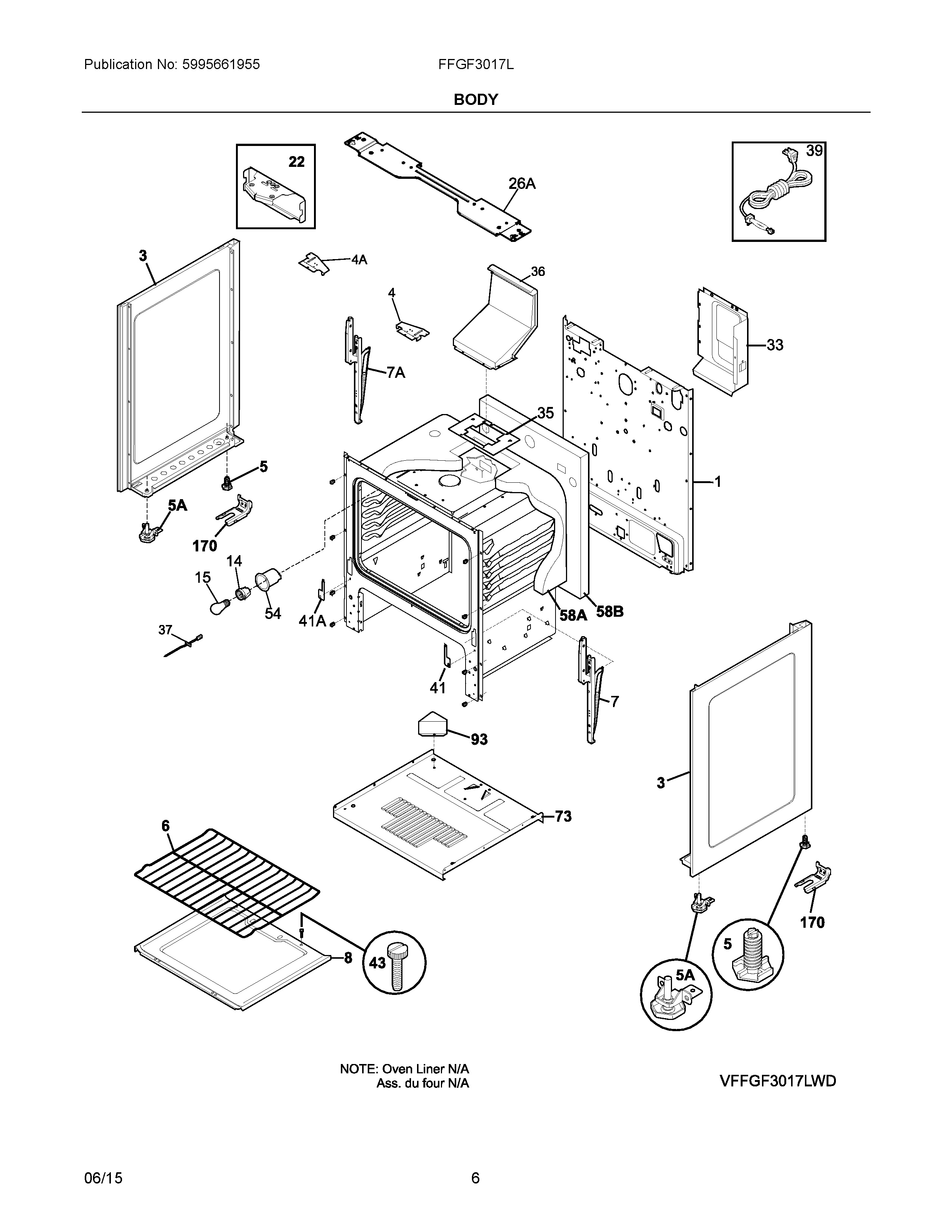

FFGF3017LBF 04 – BODY

Products

Position	Product
NI	316580100 Frigidaire Wire Harness Main
NI	WASHER-BLACK
NI	316418901 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NIA	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIB	316116000 Frigidaire Screw
NI	316539800 Frigidaire Oven Retainer
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NIA	316064600 Frigidaire Oven Support
NI	316021105 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
1	WCI 316029419
3A	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
4A	WCI 316285001
4	316285000 Frigidaire Maintop Bracket
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	316067902 Frigidaire Oven Rack
7A	316566205 Frigidaire Oven Hinge
7	316566204 Frigidaire Oven Hinge
8	WCI 316495901
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
22	316286300 Frigidaire Bodyside Bracket
26A	316498200 Frigidaire Oven Bracket
35	316542102 Frigidaire Flue Gasket
36	FLUE
37	316233903 Frigidaire Range Oven Temperature Sensor
39	5304515659 Frigidaire Oven Power Cord
41A	WCI 316233500
41	WCI 316233400
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
58A	INSULATION, OVEN WRAPPER
58B	316054202 Frigidaire Insulation
73	WCI 316109902
86	316441300 Frigidaire Receptacle
93	WCI 316110000
