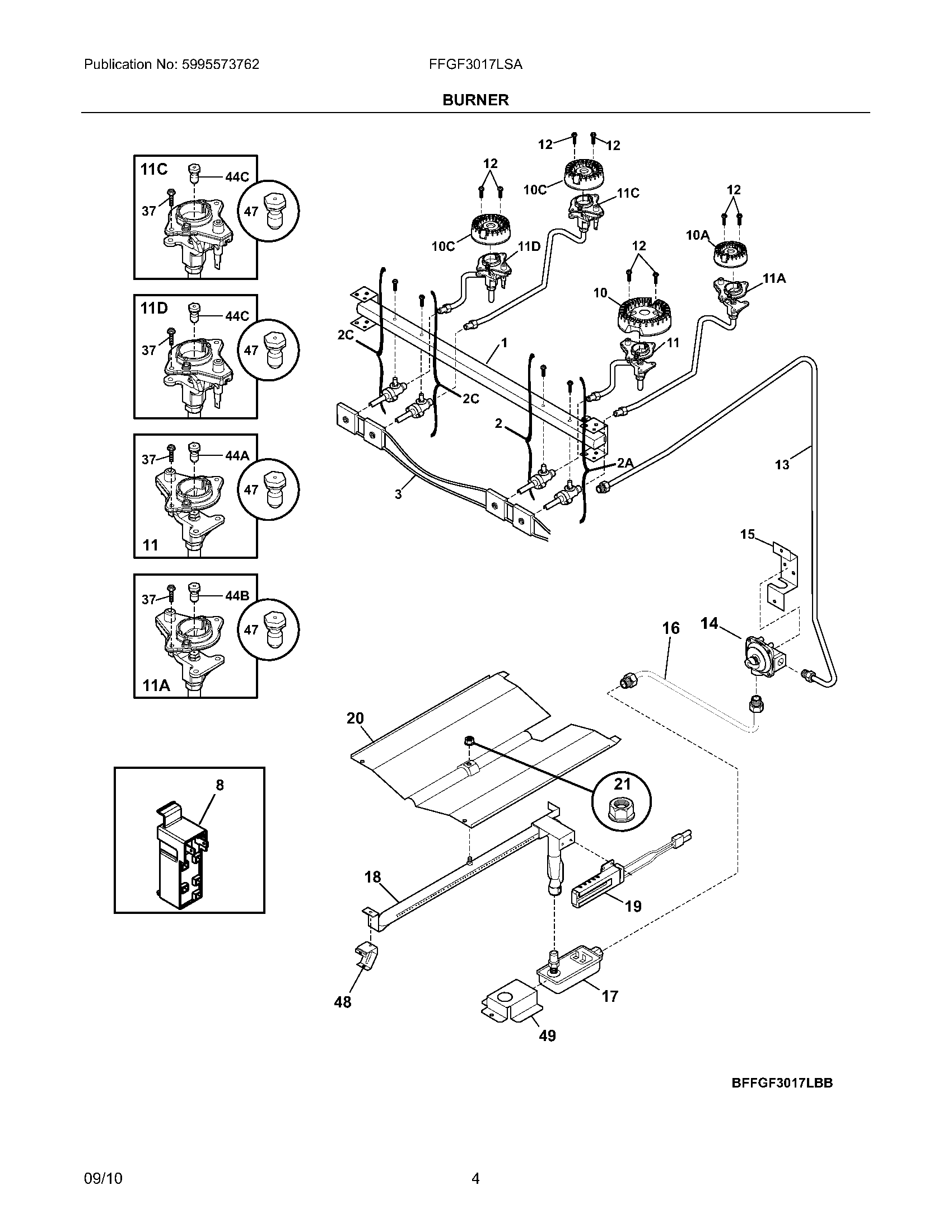

FFGF3017LSA 05 – BURNER

Products

Position	Product
NI	316021104 Frigidaire Oven Screw Assembly
NI	5304535516 Frigidaire Range Harness-Igniter
NI	WCI 316566900
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	316417518 Frigidaire Instructions
NI	316257400 Frigidaire Oven Bracket
NI	316215600 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
1	316417900 Frigidaire Pipe Manifold
2	5303935306 Frigidaire Oven Valve
2A	5303935308 Frigidaire Oven Valve
2C	5303935305 Frigidaire Oven Valve
3	316580611 Frigidaire Harness Igniters
8	808608802 Frigidaire Oven Spark Ignition Four Pole
10C	316558300 Frigidaire Oven 9.5L Sealed Burner
10	316438000 Frigidaire Sealed Burner 12K Assembly
10A	316438200 Frigidaire Range Sealed Burner, 5K
11C	316536600 Frigidaire Igniter Assembly
11A	316536610 Frigidaire Igniter Assembly/Orifice
11D	316536602 Frigidaire Oven Igniter/Orifice Assembly
11	316536608 Frigidaire Orifice Igniter Assembly
12	316540900 Frigidaire Oven Screw
13	5304513126 Frigidaire Oven Tube
14	5304521339 Frigidaire Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	316114300 Frigidaire Oven Burner
19	5304509706 Frigidaire Range Oven Igniter
20	WCI 316496001
21	5303013272 Frigidaire Oven Nut
37	316240600 Frigidaire Igniter Mounting Screw
44B	316527504 Frigidaire Oven Orifice
44A	316527502 Frigidaire Oven Orifice
44C	316527500 Frigidaire Oven Burner Orifice
47	GRLP3 Frigidaire Oven LP Conversion Kit
48	WCI 3018603
49	WCI 316416300
