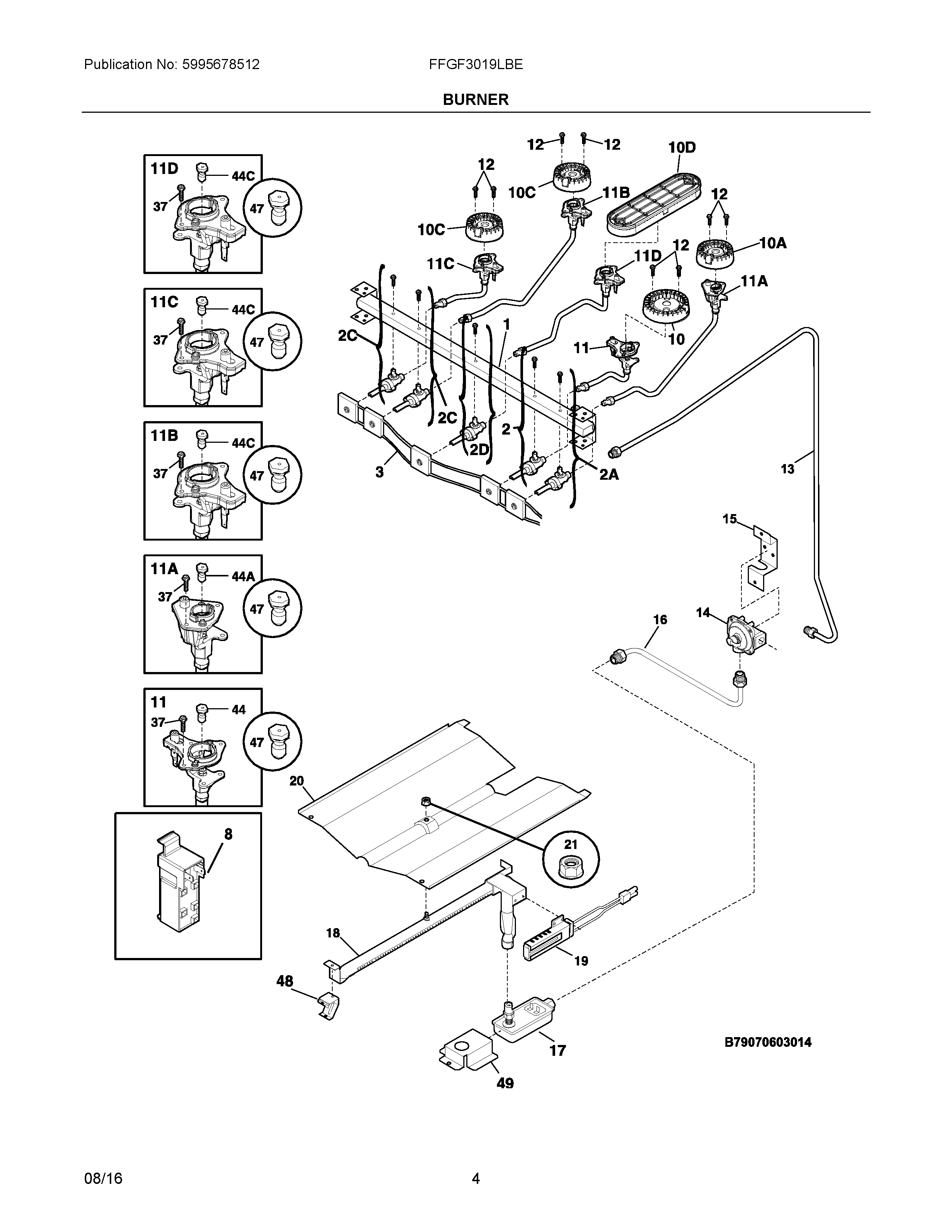

FFGF3019LBE 03 – BURNER

FFGF3019LBE 03 – BURNER

Written by

in

FFGF3019LBE 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NIA316021109 Frigidaire Oven Screw
NI5304494425 Frigidaire Oven Harness
NI5303271648 Frigidaire Oven Screw
NIB316257400 Frigidaire Oven Bracket
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
1316417901 Frigidaire Oven Manifold
2A5304506547 Frigidaire Oven Valve
2D5304506551 Frigidaire Oven Valve
25304506549 Frigidaire Oven Valve
2C5304506548 Frigidaire Oven Valve
35304528828 Frigidaire Harness
8SPARK MODULE
10D316559300 Frigidaire Oven Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438600 Frigidaire Range Sealed Burner, 14K
10C316558300 Frigidaire Oven 9.5L Sealed Burner
11C316536600 Frigidaire Igniter Assembly
11B316536602 Frigidaire Oven Igniter/Orifice Assembly
11316536614 Frigidaire Igniter/Orifice Assembly
11D316536623 Frigidaire Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
12316540900 Frigidaire Oven Screw
135304512535 Frigidaire Oven Tube
14316091711 Frigidaire Regulator Assembly
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195304509706 Frigidaire Range Oven Igniter
20WCI 316496001
215303013272 Frigidaire Oven Nut
37316240600 Frigidaire Igniter Mounting Screw
44A316527504 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44316527511 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
48WCI 3018603
49WCI 316416300
