FFGF3024SSB 03 – BURNER

FFGF3024SSB 03 – BURNER

Written by

in

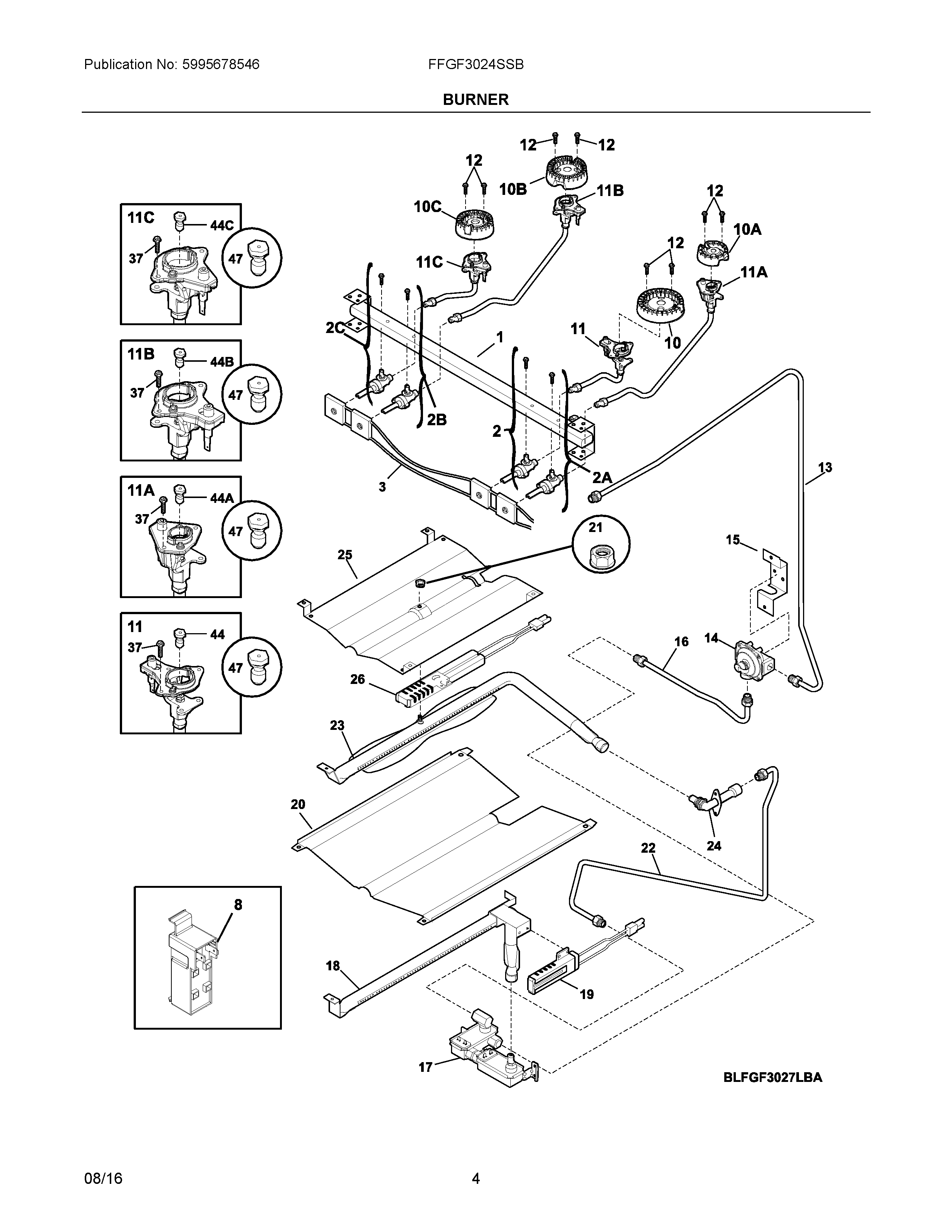

FFGF3024SSB 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NI5304535516 Frigidaire Range Harness-Igniter
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI316498100 Frigidaire Shield
NIA316401500 Frigidaire Oven Cover
NI316257400 Frigidaire Oven Bracket
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
1316417900 Frigidaire Pipe Manifold
2C5304506548 Frigidaire Oven Valve
2B5304506549 Frigidaire Oven Valve
2A5304506547 Frigidaire Oven Valve
25304506550 Frigidaire Oven Range Gas Valve (White)
3316580611 Frigidaire Harness Igniters
3A5304506555 Frigidaire Oven Harness
8808608802 Frigidaire Oven Spark Ignition Four Pole
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10B316438000 Frigidaire Sealed Burner 12K Assembly
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11316536621 Frigidaire Igniter and Orifice Assembly
11B316536612 Frigidaire Igniter Assembly/Orifice
12316540900 Frigidaire Oven Screw
13316489100 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17SAFETY VALVE
18316404400 Frigidaire Oven Burner
195304506545 Frigidaire Gas Oven Range Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
26BAKE IGNITOR
37316240600 Frigidaire Igniter Mounting Screw
44316527508 Frigidaire Oven Orifice
44A316527504 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44B316527502 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
