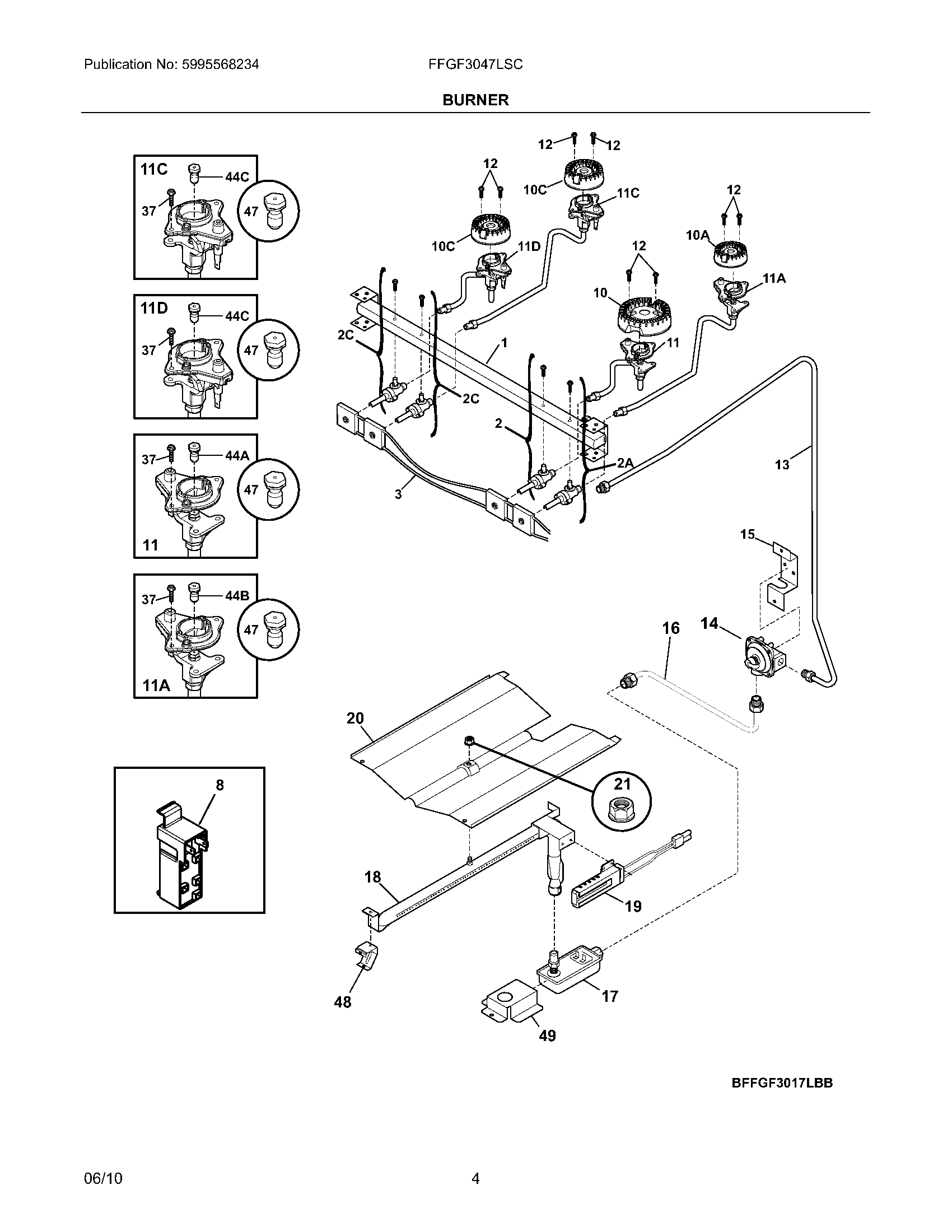

FFGF3047LSC 05 – BURNER

FFGF3047LSC 05 – BURNER

Written by

in

FFGF3047LSC 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI5304535516 Frigidaire Range Harness-Igniter
NIWCI 316566900
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NI316417518 Frigidaire Instructions
NI316257400 Frigidaire Oven Bracket
NI316215600 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1316417900 Frigidaire Pipe Manifold
25303935306 Frigidaire Oven Valve
2A5303935308 Frigidaire Oven Valve
2C5303935305 Frigidaire Oven Valve
3316580611 Frigidaire Harness Igniters
8808608802 Frigidaire Oven Spark Ignition Four Pole
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10316438000 Frigidaire Sealed Burner 12K Assembly
10A316438200 Frigidaire Range Sealed Burner, 5K
11C316536600 Frigidaire Igniter Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11D316536602 Frigidaire Oven Igniter/Orifice Assembly
11316536608 Frigidaire Orifice Igniter Assembly
12316540900 Frigidaire Oven Screw
135304513126 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195304509706 Frigidaire Range Oven Igniter
20WCI 316496001
215303013272 Frigidaire Oven Nut
37316240600 Frigidaire Igniter Mounting Screw
44B316527504 Frigidaire Oven Orifice
44A316527502 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
48WCI 3018603
49WCI 316416300
