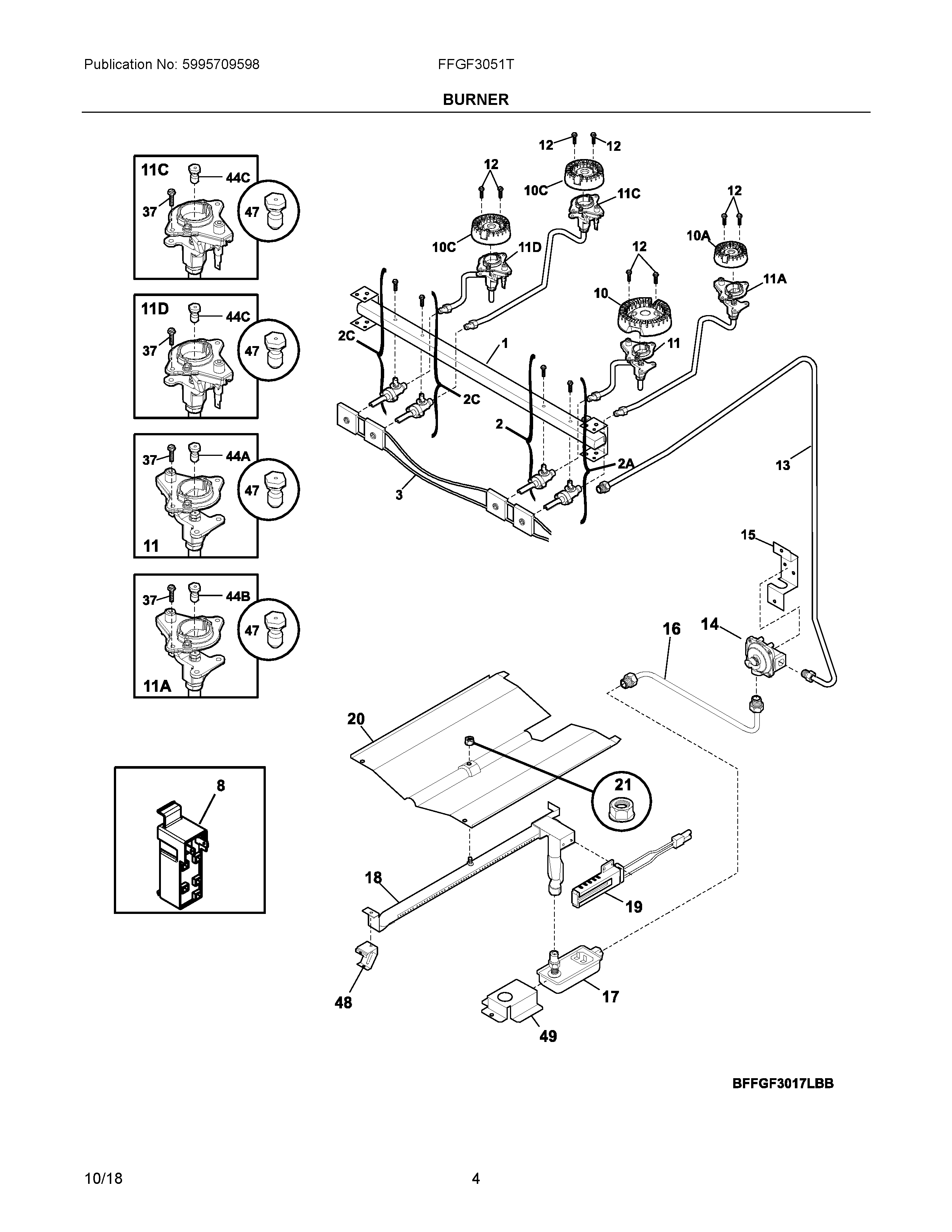

FFGF3051TBA 03 – BURNER

FFGF3051TBA 03 – BURNER

Written by

in

FFGF3051TBA 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NI5304535516 Frigidaire Range Harness-Igniter
NIAINSTRUCTION SHEET, GRLP4
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NIA316257400 Frigidaire Oven Bracket
NI316021105 Frigidaire Oven Screw
NI316215600 Frigidaire Oven Screw
15304514361 Frigidaire Manifold
2A5304506547 Frigidaire Oven Valve
25304506549 Frigidaire Oven Valve
2C5304506548 Frigidaire Oven Valve
2D5304506550 Frigidaire Oven Range Gas Valve (White)
35304506555 Frigidaire Oven Harness
8808608802 Frigidaire Oven Spark Ignition Four Pole
10316438000 Frigidaire Sealed Burner 12K Assembly
10A316438200 Frigidaire Range Sealed Burner, 5K
10C316438400 Frigidaire Range Sealed Burner, 16/17K
10D316558300 Frigidaire Oven 9.5L Sealed Burner
11316536621 Frigidaire Igniter and Orifice Assembly
11C316536612 Frigidaire Igniter Assembly/Orifice
11A316536610 Frigidaire Igniter Assembly/Orifice
11D316536602 Frigidaire Oven Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
135304513126 Frigidaire Oven Tube
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195304509706 Frigidaire Range Oven Igniter
20WCI 316496001
215303013272 Frigidaire Oven Nut
37316240600 Frigidaire Igniter Mounting Screw
44C316527500 Frigidaire Oven Burner Orifice
44A316527502 Frigidaire Oven Orifice
44B316527504 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
48WCI 3018603
49WCI 316416300
