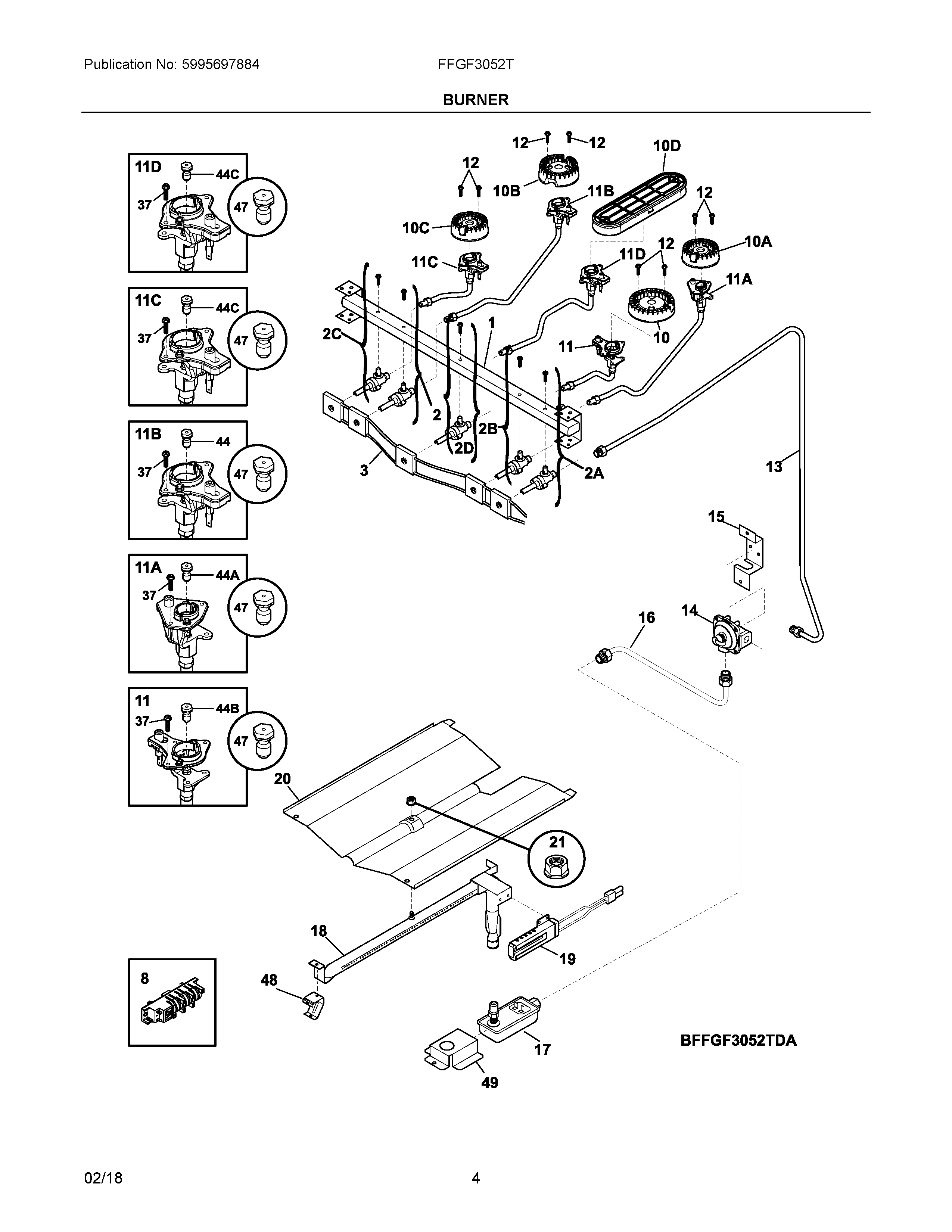

FFGF3052TBA 03 – BURNER

FFGF3052TBA 03 – BURNER

Written by

in

FFGF3052TBA 03 – BURNER

Products

PositionProduct
NIA316021104 Frigidaire Oven Screw Assembly
NIB5304505563 Frigidaire Oven Wire
NI316089500 Frigidaire Oven Screw
NIC316021109 Frigidaire Oven Screw
NI5304494425 Frigidaire Oven Harness
NI5303271648 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI316215600 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NIA316257400 Frigidaire Oven Bracket
15304513540 Frigidaire Oven Manifold
2D5304506551 Frigidaire Oven Valve
25304506549 Frigidaire Oven Valve
2B5304506550 Frigidaire Oven Range Gas Valve (White)
2A5304506547 Frigidaire Oven Valve
2C5304506548 Frigidaire Oven Valve
35304528828 Frigidaire Harness
8SPARK MODULE
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438400 Frigidaire Range Sealed Burner, 16/17K
10D316559300 Frigidaire Oven Burner
10B316438000 Frigidaire Sealed Burner 12K Assembly
11316536621 Frigidaire Igniter and Orifice Assembly
11B316536612 Frigidaire Igniter Assembly/Orifice
11D316536623 Frigidaire Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
135304512535 Frigidaire Oven Tube
14316091711 Frigidaire Regulator Assembly
15316091600 Frigidaire Oven Bracket
16316065006 Frigidaire Tube P1
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18316114300 Frigidaire Oven Burner
195304509706 Frigidaire Range Oven Igniter
20WCI 316496001
215303013272 Frigidaire Oven Nut
37316240600 Frigidaire Igniter Mounting Screw
44B316527508 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
44316527502 Frigidaire Oven Orifice
47GRLP4 Frigidaire Oven LP Conversion Kit
48WCI 3018603
49WCI 316416300
